Product Overview

  • For 19 to 21 square inch pot washing sinks
  • Stainless steel front, tank, and powder-coated body
  • Built-in electrical circuit protection
  • Maintains continuous suppply of sanitizing rinse water
  • Free-flow technology ensures responsive and efficient operation
  • Advanced electronic controls
  • Requires two, 2" diameter cutouts
  • 6 kW
UPC Code:400011007607

Hatco 3CS-6B 480/3 Specs

Shipping Weight
30 lb.
8 Inches
17 1/8 Inches
12 5/8 Inches
10.8 Amps
50 - 60 Hertz
3 Phase
480 Volts
6 Kilowatts
Made in America

NSF Listed
Plug Type
Heaters / Sediment Filters

Hatco 3CS-6B 480/3 Details

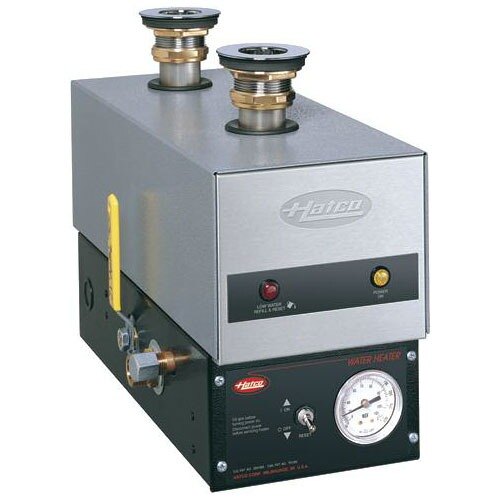

Keep a continuous supply of hot, sanitized rinse water available at all times with this Hatco 3CS-6B 6 kW sanitizing potwashing sink heater! Perfect for kitchen warewashing areas with limited space, this sink heater works by drawing water from the sink's bowl into a reservoir, where the temperature is boosted to proper sanitizing levels. The water then moves to a second reservoir, which traps soil and sediment before the heated water is flushed back into the sink. This process helps speed up manual warewashing tasks and reduces the amount of chemicals needed, leading to consistently cleaner dishware and glassware.

Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the water heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.

- Attaches easily to the bottom of 3 bowl pot washing sinks with included hardware

- Drain handle for easy emptying of reservoir after each use

- ECO (Energy Cut Off) system cuts power to heating elements if water temperature exceeds normal operating limits

- Stainless steel front, powder coated body

Overall Dimensions:
Left to Right: 8"
Front to Back: 17 1/8"
Height: 12 5/8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

  • CSA


    This item meets the standards imposed by the Canadian Standards Association (CSA).

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
