Halifax Custom Type 1 Commercial Kitchen Hood System

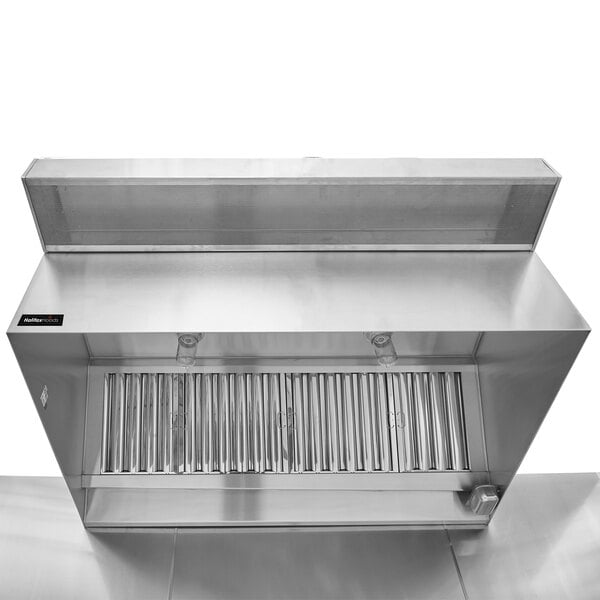

A stainless steel Halifax Custom Type 1 commercial vent hood over a counter.

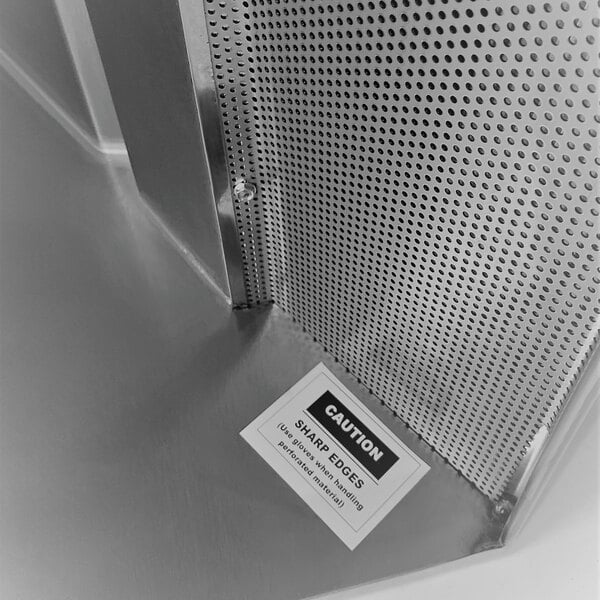

A stainless steel Halifax Custom Type 1 commercial kitchen hood system with a label on it.

Note: 6' hood shown

Contact Us for a Custom Quote

All items are built made-to-order. Request a custom quote for pricing on an item made to your exact specifications.

Request a Quote

Type: Type 1 Commercial Kitchen Hood System

Usually Ships in 5-7 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Fully customizable size, control box mounting, and fan mounting
Type 1 hood for grease-producing equipment

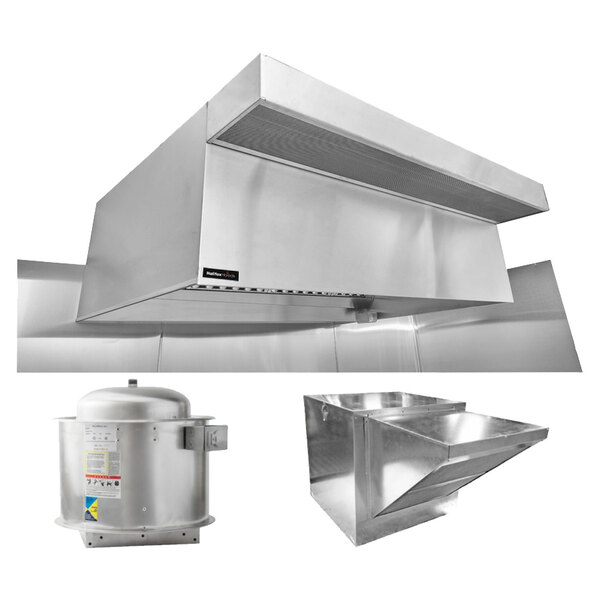

Includes box-style hood canopy, exhaust fan, and supply fan for makeup air
Stainless steel construction on all exposed surfaces
115V exhaust fan, 115/230V supply fan

View all Halifax Restaurant Hood Systems

Keep your kitchen free of hazardous grease buildup with this Halifax custom type 1 commercial kitchen hood system.

This unit is suitable for use over any equipment that is required by fire code to have a type 1 hood. This includes fryers, griddles, charbroilers, conveyor pizza ovens, or any equipment that produces grease during the cooking process. The hood removes the grease-laden vapors produced by your equipment and prevents them from accumulating in places where they could become a fire or sanitation hazard, leaving your kitchen clean and safe to use! To provide optimal safety, you can add a pre-piped fire suppression system.

Made in America
This item was made in the United States of America.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Consistent Air Supply

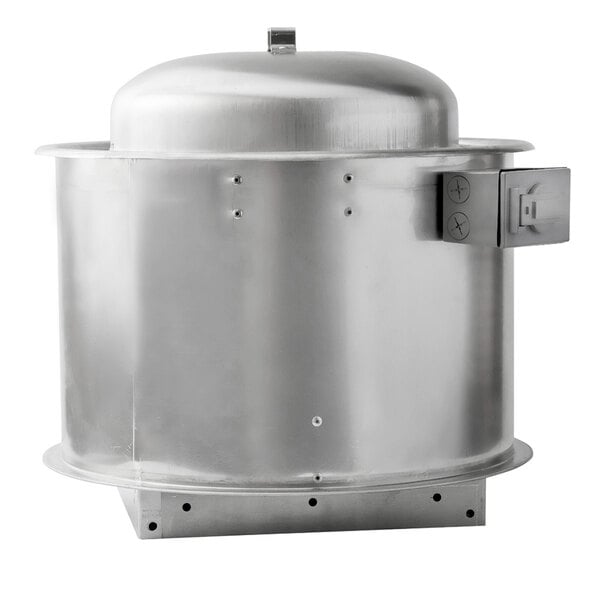

Choose between PSP (perforated supply plenum), BRP (back return plenum), exhaust only, backshelf, or short cycle. Makeup air is important in applications where the kitchen doesn't have enough fresh air coming in to replace the air exhausted by the hood, since your hood requires this replacement air to perform to specifications and remove grease, smoke, and VOCs effectively. It contains a 115V/230V exhaust fan, a 115/230V supply fan that can be supplied with tempered air, and your choice of a wall, flat roof, or pitched roof curb mount for each fan.

Durable Construction

The hood includes baffle-type filters, and the filters are made from stainless steel to provide durability and easy cleaning. Grease extracted by the filter is collected in a grease trough, which drains into a stainless steel grease cup for disposal. The 18-gauge 430 stainless steel is used on all exposed surfaces to give it excellent durability and cleanability, while the MIG-welded frame provides seamless, liquid-tight joints.

Box-Style Canopy

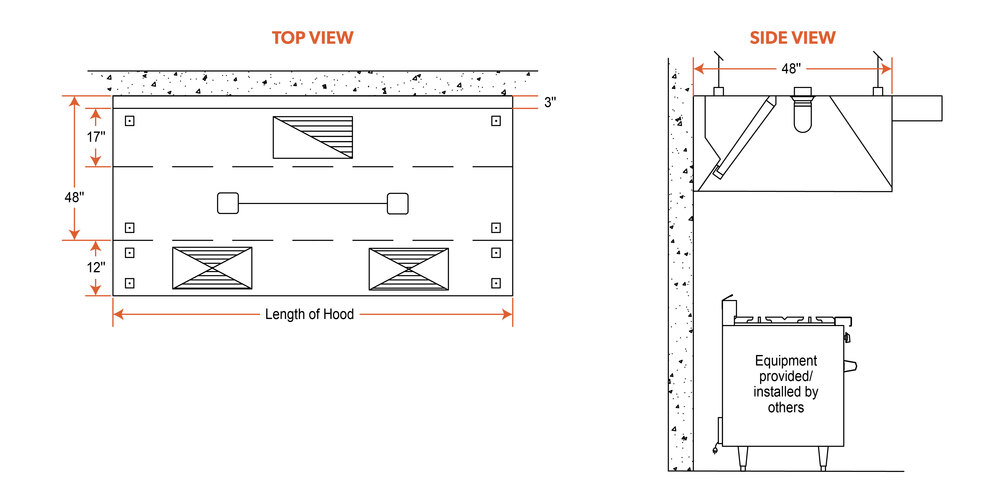

The hood features a box-style canopy design to provide superior performance. This model is also engineered with a 3" air gap on the back of the hood, which provides clearance and protection for combustible walls where code requires. This hood can also be quoted as a V-bank or island-style hood for the middle of the kitchen.

Functional Design

The pre-wired lights illuminate the equipment under your hood so that you can easily see what you're doing while cooking, and they require a 115V electrical connection to the junction box. You can choose to include hanger brackets to make installation easy. It must be hardwired, cords and plugs are not included.

Custom Quote

This hood is customizable to fit your specific needs. It allows you to select the length, depth and height so that it can fit your location. You can choose if you want the control box to be mounted on the left side, right side, or on the wall. This ensures a perfect fit for your space.

Customer Q&AAsk a Question

Can I order a hood system with tempered air?

Yes, if you or your jurisdiction require heated or cooled makeup air, please specify your requirement in your quote details.

Does my hood package include a control panel for operating the fans and lights?

Hood packages do not include control panels with the package. A control panel is often provided by the installer, or it can be purchased separately.

How do I choose the right hood for my application and local codes?

Each local jurisdiction has different rules and regulations regarding exhaust hoods. We recommend you contact your local authority to obtain the specific requirements and regulations for your intended application in your respective jurisdiction before placing your order; typically the approval authority will be the building, fire, or health department. We may also reach out to gather additional information about the layout of your application to help ensure that this hood will meet your needs and suggest modifications so that you are getting the best performance possible for your specific layout. For further assistance in selecting the right hood for your application, please contact our Customer Solutions team.

How do I know what size hood I need?

To be compliant with NFPA and International Mechanical Code, canopy hoods must be sized to have a minimum 6” (152mm) overhang beyond the top horizontal edge of the surface of the cooking appliance on all sides. To size your hood accordingly, measure the horizontal distance (width) of the cooking surface, add 12" to cover the 6" for each side, and round up to the nearest foot. Example: You have a 36” flat top griddle, 24” charbroiler, 24” range, and a 16” deep fryer. This setup has a total width of 100", plus 12" for overhang, which is 112" or 9 feet 4". Round this up to a 10' hood.

I am interested in ordering fire suppression with my hood, what is involved in that process?

Fire suppression systems are frequently required by code for type 1 hoods, and need to be designed to fit the specific layout of your cooking line.

Kidde Systems use APC (Aqueous Potassium Carbonate) wet chemical fire suppression. The tank is typically exposed unless a cabinet is requested. They come pre-filled.

Ansul Systems use Ansulex wet chemical fire suppression. The tank is typically installed in a wall-mounted cabinet. They must be filled and charged.

Both systems meet UL300 standards, and will require a certified fire safety installer to hook up, test, and pass inspection.

Follow these simple steps to add a system to your hood!

1.) Choose whether you would like an Ansul Deluxe or Kidde fire suppression system for your hood, under the "Fire Suppression" dropdown. The Ansul Deluxe system includes the gas shut-off valve, enclosure, chemical, and nitrogen cartridge.

2.) A member of our team will reach out to gather more information about your application so that the fire suppression system can be configured correctly. The sooner you provide answers to these questions, the sooner we can proceed with your order!

3.) If our team has any additional questions or concerns based on the information provided, we will work with you to resolve them and find the correct fire suppression solution for your business.

Is anything else needed to process my hood order?

Yes! In the Resources & Downloads section we list 2 forms – Receiving Agreement & Order Acknowledgement. These forms are required by the manufacturer to begin processing your order. We encourage you to promptly complete these forms after your order has been placed and email them directly to [email protected] with your order number in the subject line. If you selected Fire Suppression as part of your hood package, please also complete and submit the Fire Suppression Layout form located in the Resources & Downloads section. A member of our team will also contact you after the hood is ordered to ensure completion of the forms and processing of the order.

My wall / ceiling is made from combustible materials. Will that pose a problem?

Many common building materials are considered non-combustible such as stone, brick, plaster, steel, concrete, and glass; however, if your walls, studs, joists, or ceiling are made of combustible materials such as light-weight wood framing or heavy timber, special accommodations must be made if the hood will be mounted within 18 inches of the combustible material. Some materials, such as drywall or drop tile, may vary based upon local codes. We recommend you consult your Authority Having Jurisdiction (AHJ) if there are any specific questions regarding what is considered a combustible material. We will work with you to determine if adjustments are necessary using the information you provide in the dropdowns and after your order is placed.

Will the layout of my facility affect the fan specifications?

The CFM ratings given in the description are what your hood will most likely be designed to perform at - however, factors like long duct runs, multiple duct turns, and high heat equipment like fryers and charbroilers may necessitate a more powerful fan with a different drive type or different specifications, and we will work with you to determine whether any modifications are needed after your order is placed. The fan specifications given in the description are reflective of most installations.
