$10,160.00/Each

Ships free with Plus

for details

Earn up to $304.80 back (30,480 points)with a Webstaurant Rewards Visa® Credit Card

Wish List
Rapid Reorder

Other Available Fuel Types:

Installation Services

Check if installation is currently available for your area.

Enter ZIP Code >

Usually Ships in 3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 9 burners and cast iron radiants
  • Each burner rated 13,000 BTU
  • Removable, cast iron grates include one side with a wide brand edge and one with a fine edge
  • Stainless steel body with front rail built with 1/3 size food pan cut outs (pans sold separately)
  • Each burner controlled with a 2-position hi-lo valve
  • Two on/off power switches operate main gas burner ignition and shut down
  • Large, removable grease tray, rack cleaning brush, and grate scraper included
  • 120V; 117,000 BTU, liquid propane
UPC Code:400012892783
View all Garland / US Range Charbroilers

Works With

Garland / US Range HEEGM-48CL LP Specs

Quantity
1/Each
Shipping Weight
560 lb.
Length
47 1/2 Inches
Width
32 1/8 Inches
Height
17 3/4 Inches
Amps
15 Amps
Hertz
60 Hertz
Phase
1 Phase
Voltage
120 Volts
Base Style
Without Base
Burner BTU
13,000 BTU
Control Type
Infinite
Features
Low Profile Design  NSF Listed
Gas Connection Size
3/4 Inches
Heating Source
Radiant
Installation Type
Countertop
Number of Burners
9 Burners
Number of Controls
9 Controls
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Temperature Settings
Adjustable
Total BTU
117,000 BTU
Usage
Standard Duty

Customer questions about this product

Can I cancel my order for this Garland item if I change my mind?

Because this item is built-to-order, the manufacturer will charge a 10% cancellation fee for orders where the item has already been built but not yet shipped.

Can this Garland product be shipped directly to my home?

Due to manufacturer regulations, we are currently unable to ship certain Garland products to residential addresses. A business address must be used for shipping these items. Please contact our Customer Solutions team prior to placing your order if you have any questions!

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.

Ask your own question!

Garland / US Range HEEGM-48CL LP Details

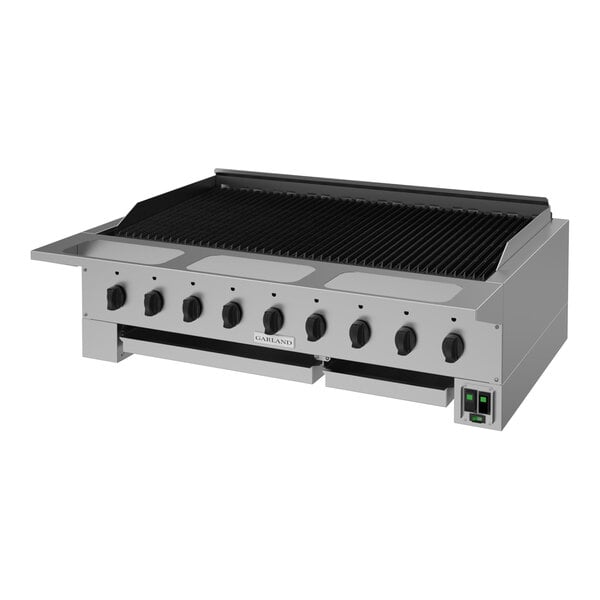

Easily prepare burgers, steaks, grilled vegetables, and other delicious dishes with this Garland HEEGM-48CL 48" liquid propane radiant charbroiler! With 9 burners, each rated for 13,000 BTU, the unit is great for diners, cafeterias, cafes, pubs, and banquet halls. It even includes heavy-duty cast iron grates, which are removable for easy cleaning and reversible for grilling versatility; one side features a wide brand edge, while the other side features a fine edge. This makes the charbroiler perfect for everything, from hearty meats to delicate vegetables, pineapple, and other tasty foods.

The unit is easy to operate with two main on/off switches that control the main gas burner ignition and shut down. Each burner features its own 2 position hi-lo valve too, so you can set the individual burners as they best suit your needs.

To ensure longevity in commercial kitchens, the unit is built with a stainless steel body. Plus, a front rail is built-in with cut outs designed to accommodate 1/3 size food pans (sold separately). By keeping pans of ingredients close by the grill, you'll streamline the back-of-house process, boost efficiency, and turn around orders faster than ever!

For easy cleaning and maintenance, the unit comes standard with a large, removable grease tray. A cleaning brush and grate scraper are also included. This 117,000 BTU charbroiler uses liquid propane and requires a 120V electrical connection for operation.

Overall Dimensions:
Left to Right: 47 1/2"
Front to Back: 32 1/8"
Height: 17 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

Need Parts & Accessories?

Show replacements and accessories for Garland / US Range HEEGM-48CL LP today!

Resources and Downloads for
Garland / US Range HEEGM-48CL LP

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note that this item is subject to a 7% export warranty administration fee for all international orders.
Please note that this item is subject to a 15% Export Infringement Administration fee for all international orders. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. Note: This warranty covers products shipped to and installed in the USA only.
