Fuel Type: Natural Gas
Installation Services
Product Overview
- 4 burners and cast iron radiants
- Each burner rated 14,500 BTU
- Removable, cast iron grates include one side with a wide brand edge and one with a fine edge
- Stainless steel body with front rail built with 1/3 size food pan cut outs (pans sold separately)
- Each burner controlled with a 2-position hi-lo valve
- On/off power switch operates main gas burner ignition and shut down
- Large, removable grease tray, rack cleaning brush, and grate scraper included
- 120V; 58,000 BTU, natural gas
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
$51.99/Each
$1,282.00/Each
$1,805.00/Each
$119.99/Each
- Quantity
- 1/Each
- Shipping Weight
- 280 lb.
- Length
- 23 1/2 Inches
- Width
- 32 1/8 Inches
- Height
- 17 3/4 Inches
- Amps
- 15 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Base Style
- Without Base
- Burner BTU
- 14,500 BTU
- Control Type
- Infinite
- Features
- Low Profile Design NSF Listed
- Gas Connection Size
- 3/4 Inches
- Heating Source
- Radiant
- Installation Type
- Countertop
- Number of Burners
- 4 Burners
- Number of Controls
- 4 Controls
- Plug Type
- NEMA 5-15P
- Power Type
- Natural Gas
- Temperature Settings
- Adjustable
- Total BTU
- 58,000 BTU
- Type
- Charbroilers
- Usage
- Standard Duty
Garland / US Range HEEGM-24CL NAT Details

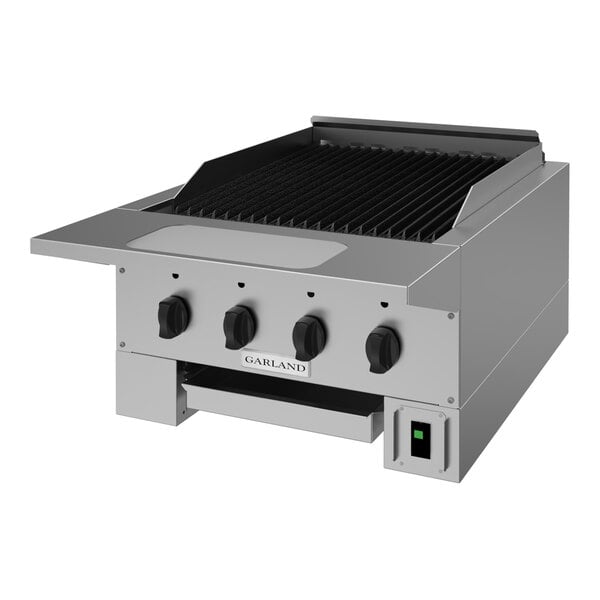

Easily prepare burgers, steaks, grilled vegetables, and other delicious dishes with this Garland HEEGM-24CL 24" natural gas radiant charbroiler! With 4 burners, each rated for 14,500 BTU, the unit is great for diners, cafeterias, cafes, pubs, and banquet halls. It even includes heavy-duty cast iron grates, which are removable for easy cleaning and reversible for grilling versatility; one side features a wide brand edge, while the other side features a fine edge. This makes the charbroiler perfect for everything, from hearty meats to delicate vegetables, pineapple, and other tasty foods.
The unit is easy to operate with a main on/off switch that controls the main gas burner ignition and shut down. Each burner features its own 2 position hi-lo valve too, so you can set the individual burners as they best suit your needs.
To ensure longevity in commercial kitchens, the unit is built with a stainless steel body. Plus, a front rail is built-in with cut outs designed to accommodate 1/3 size food pans (sold separately). By keeping pans of ingredients close by the grill, you'll streamline the back-of-house process, boost efficiency, and turn around orders faster than ever!
For easy cleaning and maintenance, the unit comes standard with a large, removable grease tray. A cleaning brush and grate scraper are also included. This 58,000 BTU charbroiler uses natural gas and requires a 120V electrical connection for operation.
Overall Dimensions:
Left to Right: 23 1/2"
Front to Back: 32 1/8"
Height: 17 3/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I cancel my order for this Garland item if I change my mind?
Can this Garland product be shipped directly to my home?
My business is at a high elevation; does this change anything when I order gas cooking equipment?
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
5-15P
This unit comes with a NEMA 5-15P plug.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
Need Parts & Accessories?
Show replacement parts and accessories for Garland / US Range HEEGM-24CL NAT today!
Resources and Downloads for
Garland / US Range HEEGM-24CL NAT
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Please note that this item is subject to a 7% export warranty administration fee for all international orders.
Please note that this item is subject to a 15% Export Infringement Administration fee for all international orders. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. Note: This warranty covers products shipped to and installed in the USA only.
