$19,654.00/Each

Ships free with Plus

for details

Earn up to $589.62 back (58,962 points)with a Webstaurant Rewards Visa® Credit Card

Size: 72"

Usually Ships in 2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 208V, 3 Phase, 25.8 kW
  • 1" thick griddle plate
  • Electronic thermostat (150-450 degrees Fahrenheit) for each 12" section
  • Stainless steel front, sides, splashguards, and backguard
  • 6" adjustable stainless steel legs
UPC Code:400010778713

Garland / US Range ECG-72R 208/3 Specs

Quantity
1/Each
Shipping Weight
700 lb.
Width
72 Inches
Depth
35 1/32 Inches
Height
22 5/8 Inches
Cooking Surface Width
72 Inches
Hertz
60 Hz
Phase
3 Phase
Voltage
208 Volts
Wattage
25.8 Kilowatts
Amps - Per Line
71.6
Connection Type
Hardwired
Control Type
Thermostatic
Cooking Surface Material
Polished Steel
Features
Extra Deep Plate  NSF Listed
Installation Type
Countertop
Number of Burners
18 Burners
Number of Controls
6 Controls
Plate Thickness
1 Inch
Plug Type
Hardwire
Power Type
Electric
Type
Griddles
Usage
Standard Duty

Garland / US Range ECG-72R 208/3 Details

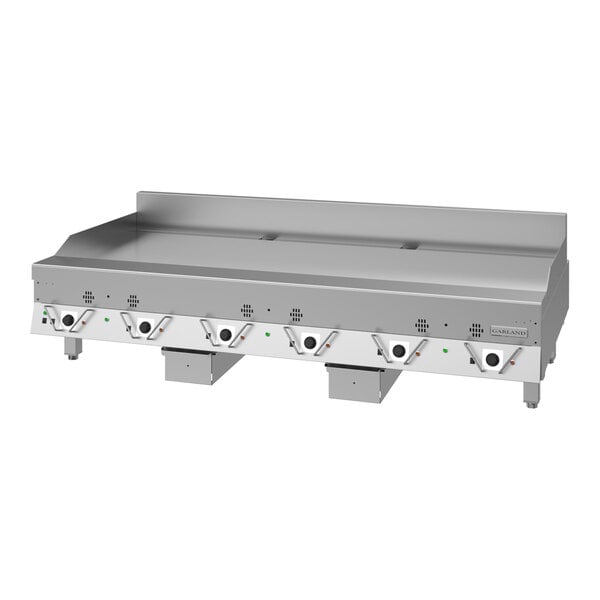

The Garland ECG-72R 72" Master electric production griddle boasts 3 heating elements per 12" section that put out 4.3 kW of heating power each. In addition to some impressive cooking power, this griddle features precise thermostatic controls (150-450 degrees Fahrenheit) that make this unit the electric griddle of choice for high volume chain restaurants, busy drive-thrus, and other situations where rapid heat-up, recovery, even heating, and durability are required.

Its 1" thick griddle plate ensures even heating and heat retention, and each thermostatic control has its own on/off switch to help you conserve energy during off-peak times. Additionally, the included sidesplashes, 8" backsplash, and bottom-mounted grease drawers are all made of stainless steel, making cleanup simple when finished, while four 6" legs facilitate easy under-griddle access. It requires a 208V, 3 phase electrical connection.

Overall Dimensions:
Left to Right: 72"
Front to Back: 35 1/32"
Height: 22 5/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I cancel my order for this Garland item if I change my mind?

Because this item is built-to-order, the manufacturer will charge a 10% cancellation fee for orders where the item has already been built but not yet shipped.

Can this Garland product be shipped directly to my home?

Due to manufacturer regulations, we are currently unable to ship certain Garland products to residential addresses. A business address must be used for shipping these items. Please contact our Customer Solutions team prior to placing your order if you have any questions!
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • CSA, US and Canada

    CSA, US and Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Need Parts & Accessories?

Show replacement parts and accessories for Garland / US Range ECG-72R 208/3 today!

Resources and Downloads for
Garland / US Range ECG-72R 208/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please note that this item is subject to a 7% export warranty administration fee for all international orders.
Please note that this item is subject to a 15% Export Infringement Administration fee for all international orders. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. Note: This warranty covers products shipped to and installed in the USA only.
