Fuel Type: Natural Gas

Installation Services

Check if installation is currently available for your area.

Usually Ships in 3-4 Months from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • 63 lb. oil capacity
  • CM3.5 temperature controls
  • 6" diameter tubes
  • Thermo-tube heat transfer system
  • 119,000 BTU / hour
  • Stainless steel fry pot
  • Wide cold zone
  • Natural Gas
UPC Code:400011676285

Frymaster 11814G CM3.5 NAT Specs

Quantity
1/Each
Shipping Weight
255 lb.
Width
20 Inches
Depth
33 1/8 Inches
Height
47 3/4 Inches
Fry Pot Width
18 Inches
Fry Pot Depth
14 Inches
Fry Pot Height
3 3/4 Inches
Amps
1 Amp
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Burner Style
Tube
Cabinet
Stainless Steel
Capacity
63 lb.
Features
Energy Star Qualified  Made in America  NSF Listed  Programmable Controls
Gas Connection Size
3/4 Inches
Number of Fry Baskets
3 Fry Baskets
Number of Fry Pots
1 Fry Pot
Plug Type
NEMA 5-15P
Power Type
Natural Gas
Split Pot
Without Split Pot
Total BTU
119,000 BTU
Type
Gas Floor Fryers

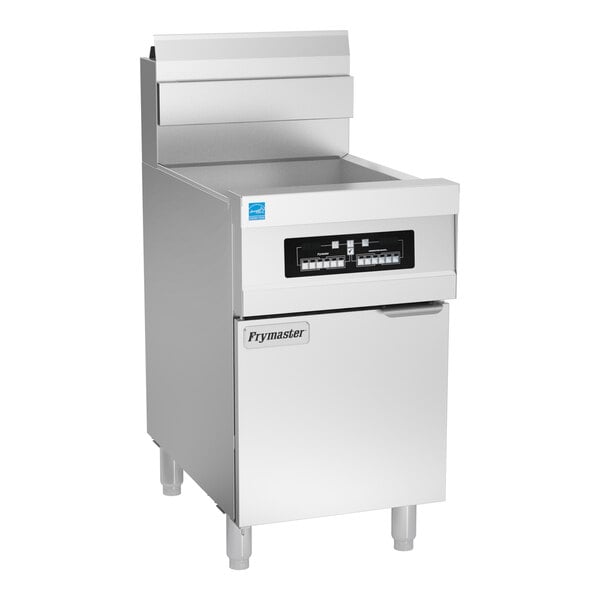

Frymaster 11814G CM3.5 NAT Details

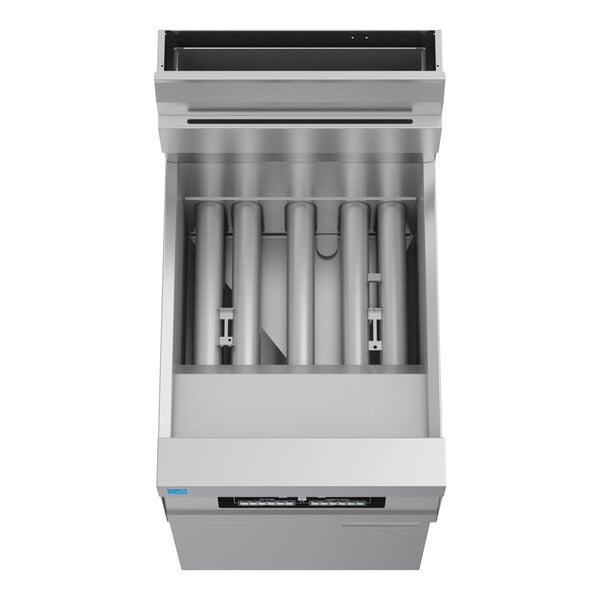

The ideal combination of efficiency and volume, the Frymaster 11814C 63 lb. high production natural gas floor fryer is an excellent addition to any restaurant looking to increase profits from chicken tenders, French fries, and other popular fried foods! This tube type fryer has 6" diameter tubes that provide 36% more surface area for heat transfer, resulting in extended oil life, low gas consumption, and less heat loss.

This fryer features simple CM3.5 controls to let you make almost instant adjustments to your cooking cycles. They also ensure pinpoint accuracy when measuring oil temperature while allowing for high production and fast recovery times. Its Thermo-Tube heat transfer system provides superior heat-to-oil transfer that saves energy and extends oil life.

For easy cleaning and draining, this floor fryer has a wide cold zone with a 1 1/4" full port IPS ball-type drain valve and 3" drain line. The tank's bottom slopes forward to help collect and remove sediment from the fry pot, and this unit's front, sides, and doors are made of stainless steel for long-lasting durability.

- CM3.5 controls

- 119,000 BTU

- 18" x 14" x 3 3/4" fry area

- 3" swivel casters

Overall Dimensions:
Left to Right: 20"
Front to Back: 33 1/8"
Height: 47 3/4"

Please Note: For all orders shipping outside of the United States a 15% upcharge will be applied.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

My business is at a high elevation; does this change anything when I order gas cooking equipment?

Many gas equipment manufacturers need to make adjustments to the equipment so it operates correctly at elevations over 2,000 feet. Sometimes we can special order from the manufacturer and have your cooking equipment delivered ready-to-go, but in cases where your unit is in stock and waiting to ship, you’ll need to have a qualified service technician come to your location and alter your unit at the time of installation so that it is compatible with a higher elevation. Contact our Special Orders team prior to placing your order, and we will let you know what will work best for the equipment you are planning to purchase.
Ask your own question!
  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • 3/4" Gas Connection

    3/4" Gas Connection

    This unit comes with a 3/4" gas connection to be installed by a professional.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

  • CSA, US and Canada

    CSA, US and Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
