  • Max pressure: 300 PSI

UPC Code:




Usually Ships in 1 Business Day
When will I receive my item?

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

TS Hose Reels and Hose Reel Accessories

TS Hose Reels and Hose Reel Accessories

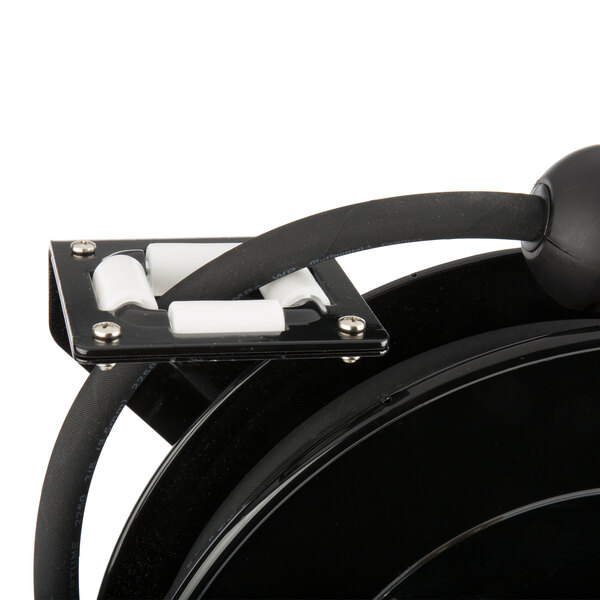

When it comes to clean up there's nothing like a T&S hose reel to make life easier. Its powerful spray valve makes quick work of spills or even regular shift clean up. It's rugged hose material presents kinks and best of all its retractable reel unwinds and wines the hoes easily keeping it out of the way but always within close reach. Though many manufacturers offer hose reels, the range from T&S provides the highest quality, the most reliability, and a broad selection of features and benefits. We offer both open and close designs incorporating a smooth rolled edge on our drums to keep hoses or anything else from catching on them. We've engineer special roller guides to reduce goes wear and crafted the reel arm so it can adjust to 8 different convenient positions. Antilock out is standard on all of our models as is the finest and finishes, either stainless steel or are durable epoxy coated steel. Even the T&S fittings are in a class by themselves with a brass will bowl and a stainless steel shaft to ensure long life as well as Nitrol seals on the swivel and a canonized spring for safer replacement. At T&S we always aim to make the finest most innovative products we can just to be sure though we put our hose reels through rigorous testing. The results showed that T&S hose reels perform well in every single category including spring live, structural strength, swivel life, paint finish, and hose life. We've even documented the strength life tests. When we say reliability built in, we mean it! We make installing a T&S hole reel simple. All our hose reels are sent to you with proper tension and in ready to install condition. We have the option of choosing a mounting position after you've received your hose reels. Those options or wall mount, floor mount, and ceiling mount. And we include amounting diagram that you can use as a template for pre drilled holes. Ensure that your fasting location is suitable for holding the reel and then attached the real using the mounting position you've chosen. For maximum safety, always install a hose reel with two people. This eliminates the risk of holding a heavy reel while trying to attach it at the same time. Once the real was mounted in place, connect the swivel inlet to a water source with flexible hose. While hose reels themselves, especially those from T&S, are quite solid the inlet connection can be shaken or jar during operation and a flexible hose keeps those pumps from becoming a source of damage or leaks. In fact, if you use a hard pipe installation it will void your warranty. Since back flow can contaminate the water supply and since code now requires it you must install the proper backflow prevention. We recommend that T&S B-0963 Vacuum Breaker Unit which provides superior back flow prevention for continuous pressure applications and which also protects its surrounding areas with a patented spill resistant design. If you should ever need to replace the hose on your T&S hole reel follow these simple instructions. First, disconnect the water supply. Pull the hose out to a locked position and remove the bumper. Then unlock the hose and released the tension from the reel. Remove the hose from the reel then remove the two hose clamps. Next, disconnect the swivel. Take your new hose and apply Teflon tape to its swivel. Attach the hose to the hose reel swivel then feed the hoes through the slot in the drum. Tighten the hose clamps to the reel. Finish installing the hose onto the reel. To increase the tension, pull the hose out one or two full turns and locker it. Wrap those revolutions around the reel. This should be sufficient tension for normal operation. Finish by attaching the hose bumper to the hose. If you ever need to replace the swivel follow these directions. Disconnect the water supply. And remove all tension from the reel. Then disconnect the hose that's attached to the swivel and remove the swivel itself by loosening the hex end. Then simply reverse the procedure by taking your new swivel attaching it with the hex end, resetting the tension on your hose, and connecting the supply hose to your new swivel. T&S hose reels of a wide array of accessories that can optimize them for performance. A swing bracket allows your wall mount reel to move smoothly on an arc from side to side. A pivot bracket gives your floor or ceiling mounted hose reel flexibility of movement by allowing it to rotate or spin for maximum convenience. T&S hose reels are also engineered to work with a variety of spray valves. Many choose from a typical spray valve design such is our model B-0107 and its low flow model B-0107c. Others prefer innovative ergonomically designed B-0108 valves which include all of the performance of the standards spray valve with enhanced ease of use. However, we also offer to other options in spray valves, our NV Series of water guns features a rugged easy grip body and either stainless steel or aluminum construction and a powerful water stream. For other applications, our extension spray valves are more appropriate with their long reach spray arm and on the go adaptable spray head. No matter how you choose to customize your T&S hose reel, we offer the option that fits your needs. Durable construction far beyond any other hose reel on the market. Simple installation and maintenance that's reliability built in!

Copy and paste the embed code above.

See how easy it is to install a T&S hose reel in your business! You'll also learn about some of the special convenience and durability features built right into every T&S hose reel.

Equip by T&S 5HR-232-01 Specs
Length 35 Feet
Width 15 1/2 Inches
Depth 6 1/2 Inches
Maximum Pressure 300 PSI
Style Open
Water Inlet Size 3/8 Inches

Equip by T&S 5HR-232-01 Details

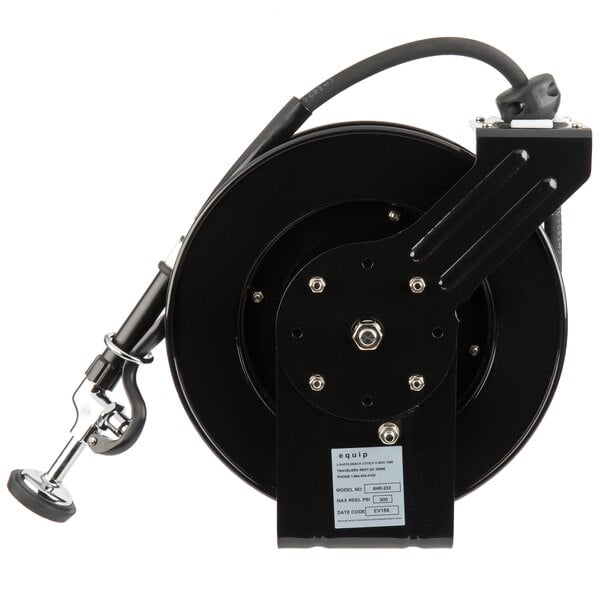

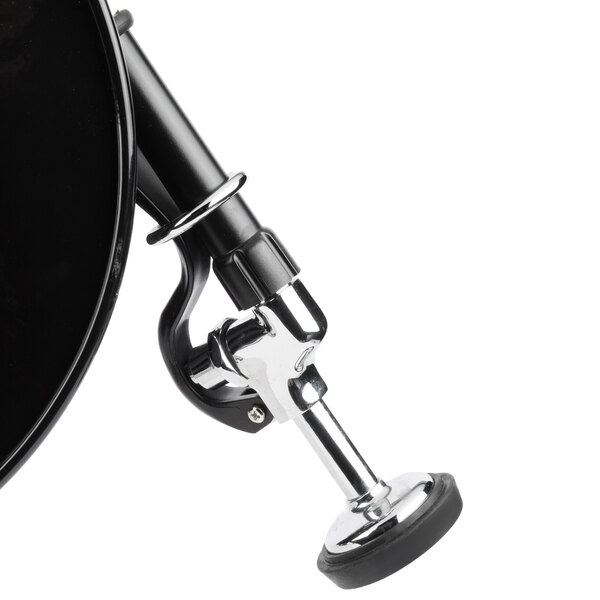

This Equip by T&S 5HR-232-01 hose reel includes a 35' long heavy duty hose with a 3/8" diameter and a durable, powder coated steel reel. It comes with a 5SV-H spray valve for an ergonomic way to control the direction of your spray, while an adjustable guide arm helps you gain precise control over the direction of your hose. The base is built to allow for simple mounting on a wall, ceiling, or under a counter for quick and convenient access in commercial kitchens and janitorial locations.

The Equip by T&S 5HR-232-01 hose reel has a 3/8" NPT female inlet and a 3/8" NPT male outlet. Its overall dimensions are 15 1/2"W x 6 1/2"D.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

  • CSA


    This item meets the standards imposed by the Canadian Standards Association (CSA).

Resources and Downloads for
Equip by T&S 5HR-232-01

Spec Sheet Specsheet Instructions Instructions Warranty Warranty Hose Reels Sales Sheet Sell Sheet

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

  • Overall User Rating: Equip by T&S 5HR-232-01 Hose Reel with 35' Hose and Spray Valve

    5.0 stars from 1 review


    People Talk About:

    hose set Reed love keeps easy bought backyard

    I love this hose Reed. I bought it and set it up on my backyard. It is very easy to use and it keeps the hose out of the way.
