This product is no longer available. We've left this page up for reference only.

Usually Ships in 5-7 Business Days from manufacturer

Lead times vary based on manufacturer stockEstimated shipping time tooltip

Product Overview

  • Single 4.75 gallon clear plastic bowl
  • Spray function attracts customers with dynamic moving product
  • Stainless steel base
  • Easy-off bowl release system provides easy assembly
  • User-friendly design with 9'' cup clearance
  • Fewer removable parts simplifies cleaning
  • 1/10 hp refrigeration system
UPC Code:400011824860

Crathco CS-1D-16-S Specs

Shipping Weight
60.5 lb.
10 1/2 Inches
17 5/8 Inches
25 5/16 Inches
Height to Dispenser
9 Inches
3.6 Amps
60 Hertz
1 Phase
115 Volts
4.75 Gallons
NSF Listed
1/10 HP
Plug Type
NEMA 5-15P

Crathco CS-1D-16-S Details

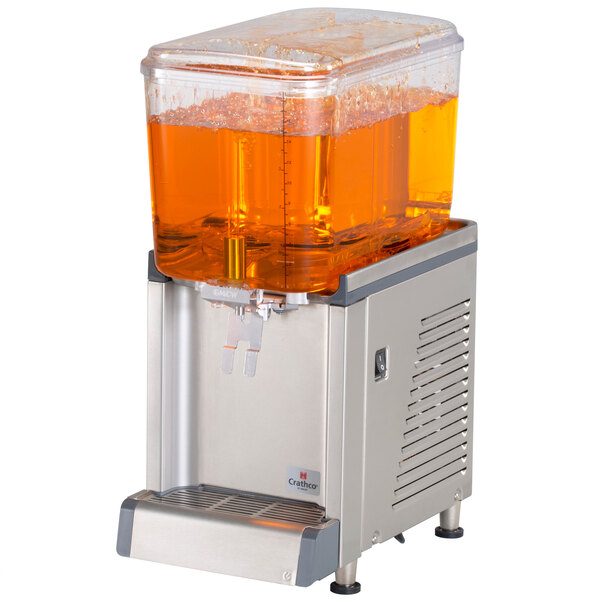

A simple way to boost impulse sales at your snack bar, buffet, or fast food restaurant, this Crathco CS-1D-16S single 4.75 gallon bowl premix cold beverage dispenser is perfect for nearly every application. The clear plastic, easy-to-clean bowl is paired with a stainless steel base for added durability and a polished, professional look. This particular model boasts a spray nozzle within the bowl to keep the mix from settling and attract customers with a dynamic moving product.

The new easy-off bowl release system decreases time spent during assembly and disassembly, while the user-friendly design enables the machine to dispense liquids until the very last drop. For further versatility, a 9'' cup clearance accommodates glasses, cups, and pitchers of multiple sizes. This unit can also be placed side by side with other appliances due to a bottom-mounted air intake and exhaust to the back. Additionally, fewer removable parts work to simplify cleaning and reduce maintenance.

The Crathco CS-1D-16S cold beverage dispenser requires a 115V electrical connection and includes a 1/10 hp refrigeration system.

Overall Dimensions:
Width: 10 1/2''
Depth: 17 5/8''
Height: 25 5/16''

  • UL Listed

    UL Listed

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.

Resources and Downloads for
Crathco CS-1D-16-S

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Please Note: Grindmaster-Cecilware items may not be exported outside of the United States. Exporting these items will void the warranty.
