$4649.00/Each

This product is no longer available. We've left this page up for reference only.

  • Cleans and sanitizes approximately 25 racks per hour; 1.8 gallons per rack
  • Soft start prevents glasses and dishes from chipping and breakage
  • 15 3/4" door opening
  • Rinse Sentry feature can extend cycle time to ensure final rinse at 180 degrees Fahrenheit
  • Built-in booster heater
  • 208/240V
Champion UH-130B 208/240 Specs
Width 24 Inches
Depth 25 Inches
Height 33 3/4 Inches
Hertz 60 Hertz
Phase 1 - 3 Phase
Voltage 208/240
Booster Heater Included Yes
Booster Wattage 6 - 9 Kilowatts
High or Low Temp High Temp
Horsepower 1 HP
NSF Listed Yes
Racks Per Hour 25
Style Rack
Type Undercounter Dishwashers
Wash Cycle Time 141 Seconds
Water Inlet Size 1/2 Inches
Water Temperature 180 Degrees F
Water Usage 1.8 Gallons Per Rack

Customer questions about this product

Is there anything else I should consider before ordering this item?
This item carries a 25% restocking fee for returns. Please be sure to check all necessary utility connections and installation requirements to be sure that this item will install correctly. Contact our customer solutions team if you have any questions so we can help ensure you purchase the right product and configuration for your needs!
Ask your own question!

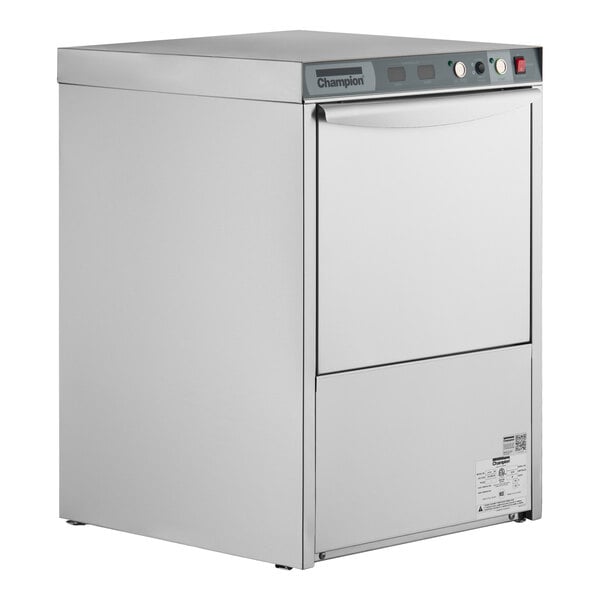

Champion UH-130B 208/240 Details

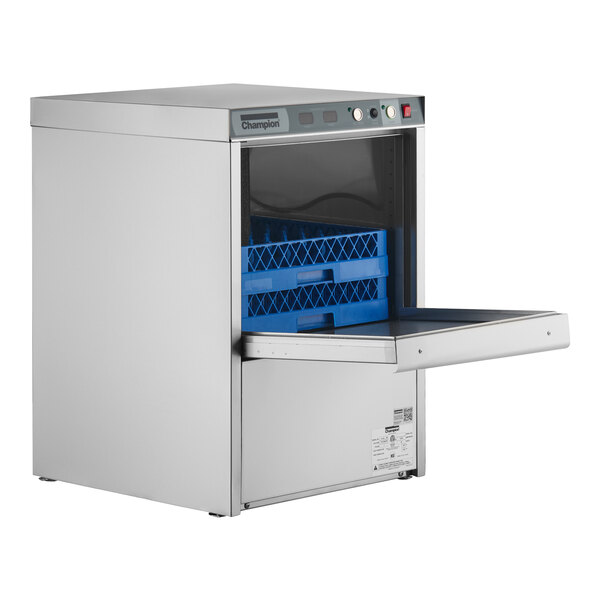

When you need clean glasses and dishware but you're low on space, this Champion UH-130B undercounter dishwasher is the perfect solution! This high-temperature dishwasher is designed to keep your dishroom productive and efficient, able to tackle up to 25 racks per hour while using only 1.8 gallons per rack. It boasts a 15 3/4" door opening to allow easy loading and unloading and comes with plenty of smart design features to help you spend more time helping customers and less time doing the dishes. For example, its soft start functionality works to prevent breakage and chipping. It also automatically drains the water to prepare for the next cycle, ensuring heavily soiled items are always sanitized with fresh water. Other features like a door safety switch and low water tank heat protection simplify operation and improve safety.

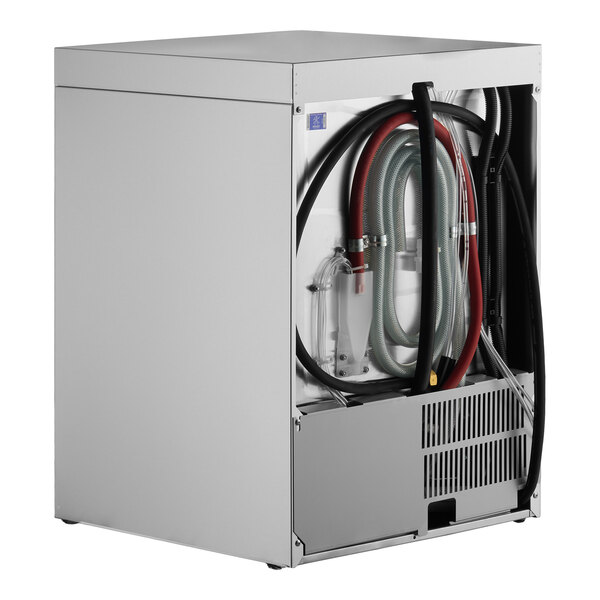

You also never have to worry whether your machine is reaching the proper temperature, as it can extend the cycle time to ensure that it reaches the 180 degree final rinse necessary to meet health code standards. It comes ready for a 208/240V setup and must be hard-wired. It can be configured to accommodate either a 1 or 3 phase setup in the field. A 1/2" NPT hot water connection is required, and it has a pumped drain with 6' of 5/8" ID flexible reinforced hose.

Overall Dimensions:
Width: 24"
Depth: 25"
Height: 33 3/4"

Attention CA Residents: Prop 65 Warning

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired; it does not plug into a standard wall outlet.

  • 1/2

    1/2" Water Connection

    This unit comes with a 1/2" water connection.

Resources and Downloads for
Champion UH-130B 208/240

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible
