$23,144.00/Each

Ships free with Plus

Accessories & Options

Earn up to $694.32 back (69,432 points)with a Webstaurant Rewards Visa® Credit Card

Voltage: 208/240V, 3 Phase

Installation Services

Check if installation is currently available for your area.

Usually Ships in 1 Business Day from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Ventless heat recovery uses steam to heat incoming water instead of releasing it in the dishroom
  • Door safety switch prevents burns due to opening during operation
  • Door safety switch prevents burns due to opening during operation
  • Includes 1 peg rack and 1 flat rack to hold soiled wares
  • 40 racks/hr; 0.73 gal/rack; 4 different wash cycles
UPC Code:400013905284

Champion 501884-1-WB-CR Specs

Quantity
1/Each
Shipping Weight
525 lb.
Width
33 15/16 Inches
Depth
31 5/8 Inches
Height
96 3/4 Inches
Dishwasher Height
Tall
Hertz
60 Hz
Phase
3 Phase
Voltage
208/240 Volts
Application
Dishwashers
Booster Wattage
7.5 Kilowatts
Dishwasher Style
Straight
Features
Booster Heater Included  Energy Recovery  Energy Star Qualified  Made in America  NSF Listed
High or Low Temp
High Temp
Horsepower
2 HP
Number of Cycles
4 Cycles
Plug Type
Hardwire
Racks Per Hour
40
Type
Single Rack  Ventless
Wash Cycle Time
90 - 390 Seconds
Wash Tank Capacity
10 gal.
Water Inlet Size
3/4 Inches
Water Temperature
150 - 180 Degrees F
Water Usage
0.73 Gallons Per Rack

Champion 501884-1-WB-CR Details

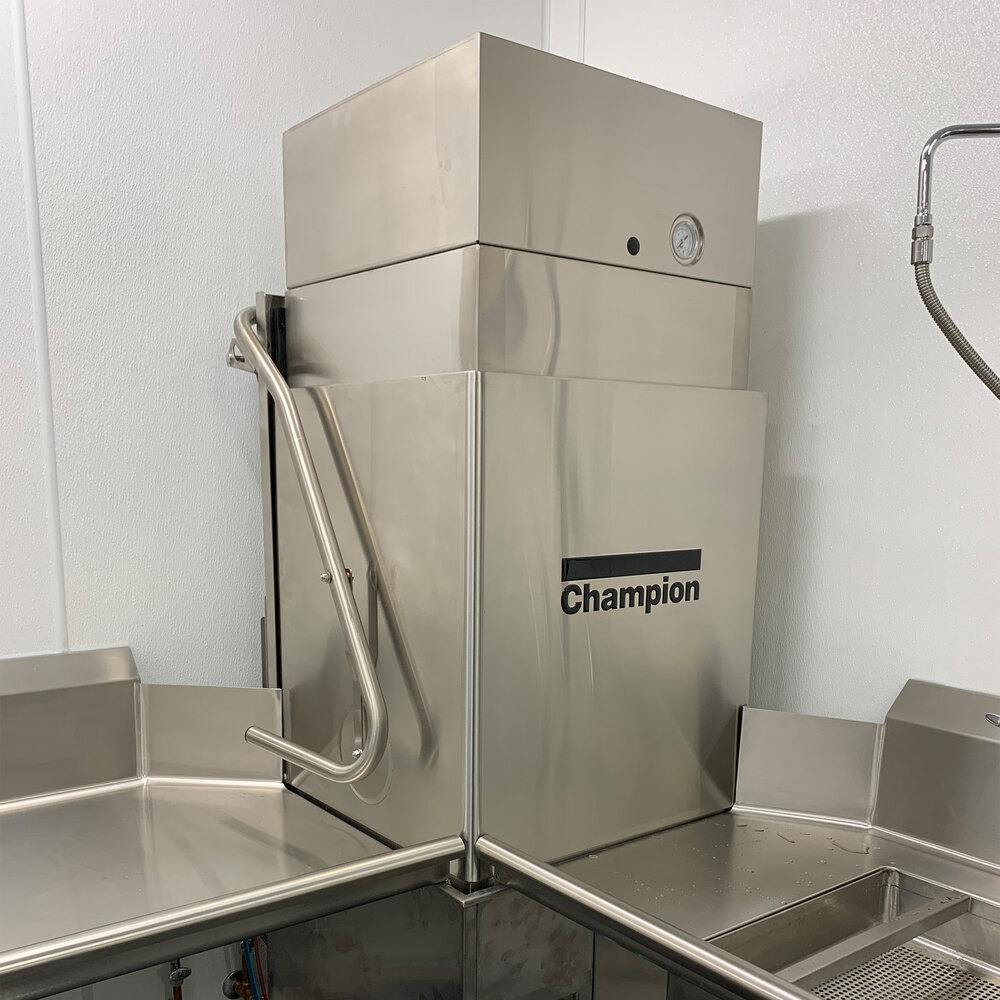

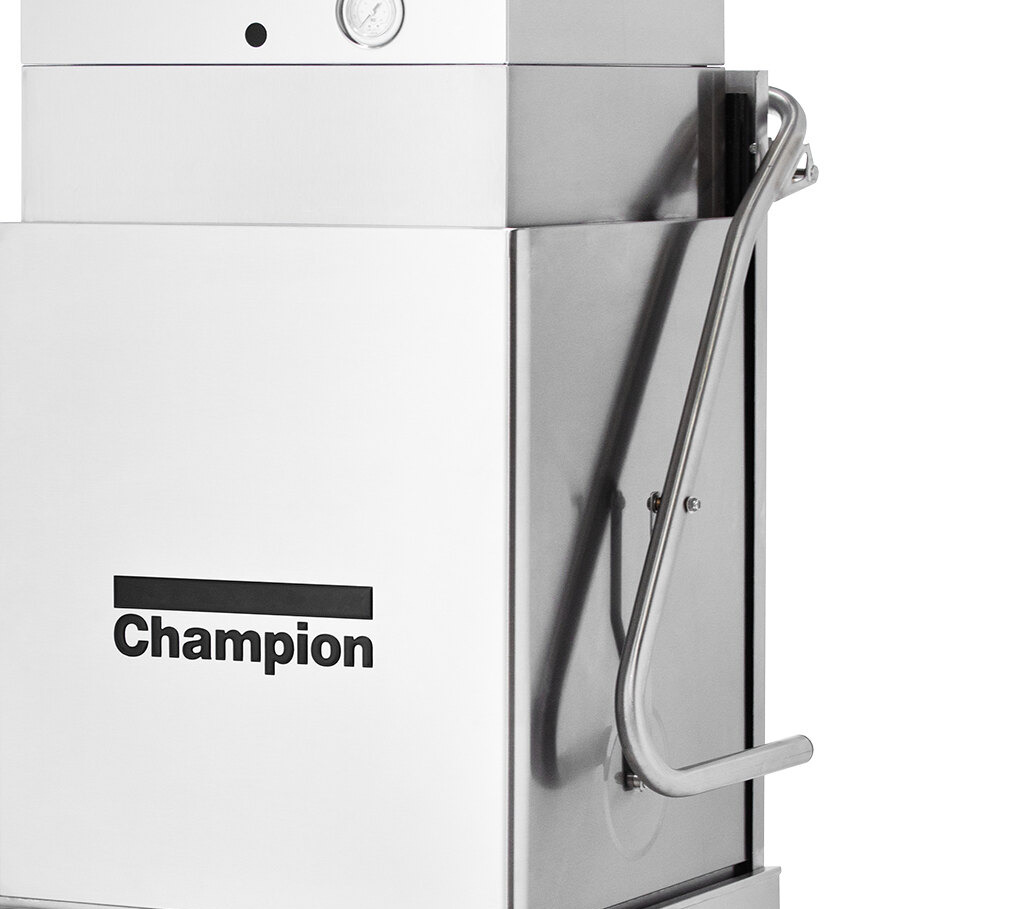

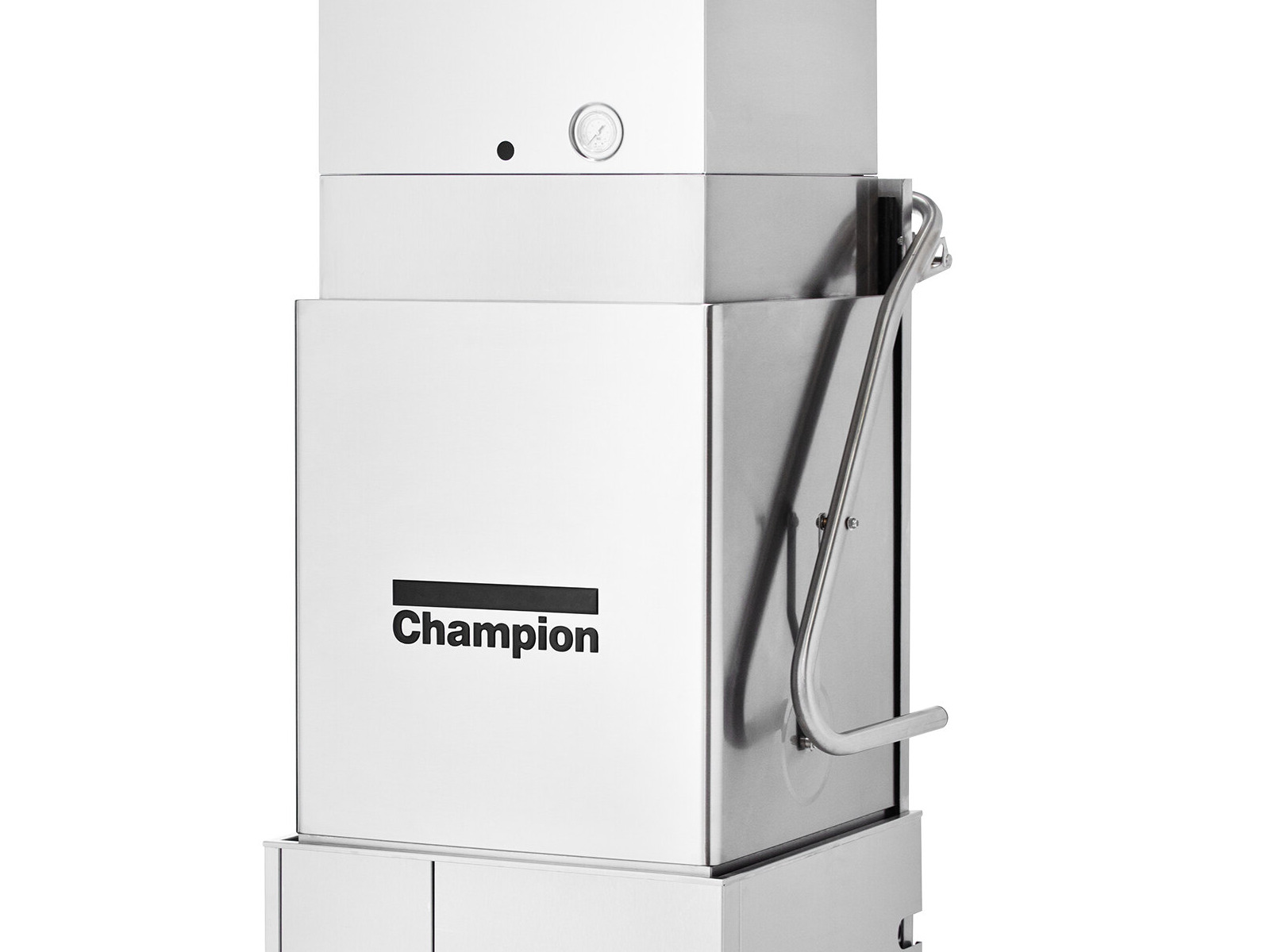

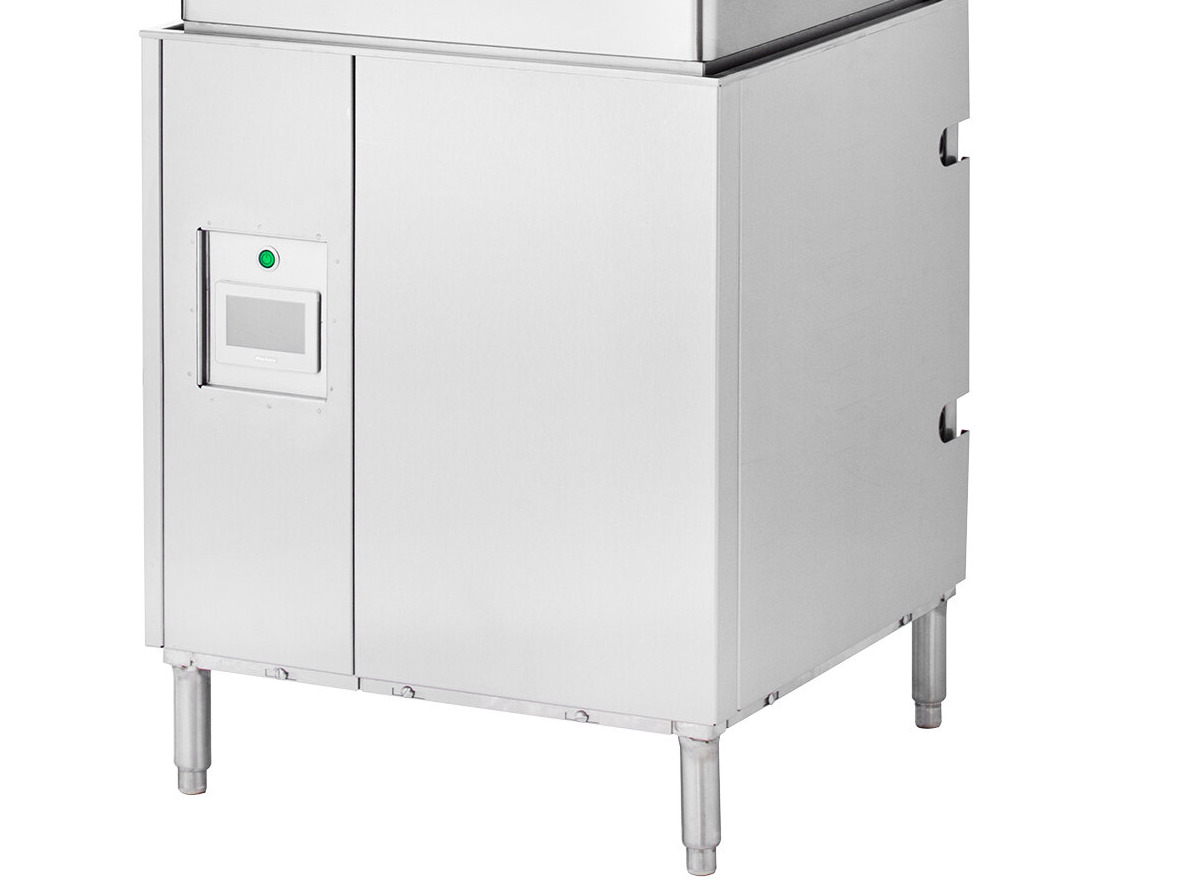

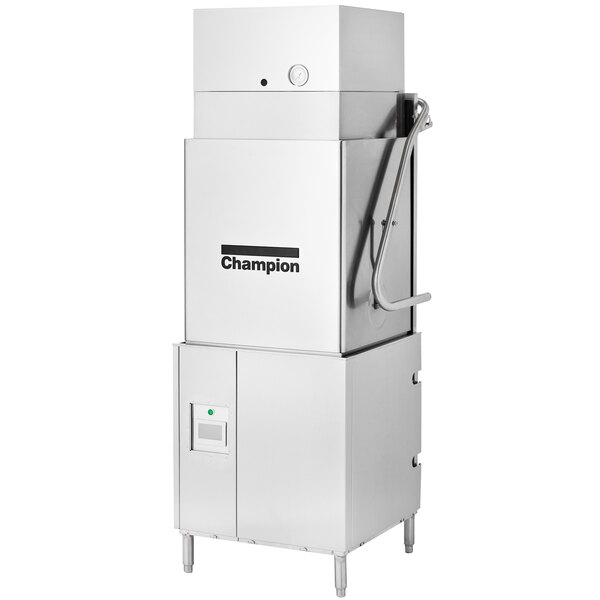

Streamline your dishwashing operation with the Champion DH6000T-VHR door-type high temperature dishwashing machine with booster and ventless heat recovery. With one included peg rack and one flat rack this machine is great for just about any soiled wares, and is also pot and pan rated. A large 27" opening can accommodate trays, pans, and 60 quart mixing bowls. Its heavy-duty construction includes a stainless steel booster and enclosure panels, making it ideal to hold up to the wear and tear of busy commercial kitchens. The built-in electric booster can raise incoming water temperatures by 70 degrees Fahrenheit for a 180 degree rinse cycle.

This machine can complete a full cleaning cycle in just 90 seconds and cleans up to 40 racks per hour. It uses only 0.73 gallons of water per rack. It also has a pot & pan mode with 2.5, 4.5, and 6.5 minute cycles.

The ventless heat recovery system recovers and transfers heat and water vapor back to the booster so it does not have to use as much electricity for heating. Featuring both an automatic tank fill, and automatic drain valve, this machine is simple to operate without requiring constant monitoring by the user. A water pressure regulating valve ensures that you are receiving the appropriate level or pressure while washing. To prevent opening the door during operation, a door safety switch locks the door to avoid potential burns from steam and hot water. A low-water tank heat cut-off will help prevent overheating of the dishwasher which could result in operational failure. This unit requires a 208-240V, 3 phase electrical connection for operation.

Overall Dimensions:
Width: 33 15/16"
Depth: 31 5/8"
Height: 96 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can sheet pans be washed with this dishwasher?

Yes, sheet pans can be washed using a normal peg rack. We recommend washing no more than 4 sheet pans at a time to ensure proper wash.

Is there anything else I should consider before ordering this item?

This item carries a 25% restocking fee for returns. Please be sure to check all necessary utility connections and installation requirements to be sure that this item will install correctly. Contact our customer solutions team if you have any questions so we can help ensure you purchase the right product and configuration for your needs!

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!
  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • Made in America

    Made in America

    This item was made in the United States of America.
