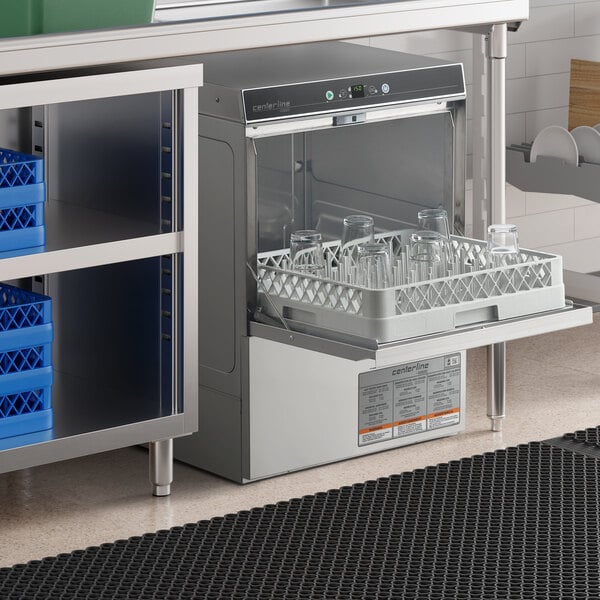

Centerline by Hobart CUH-1 High-Temperature Undercounter Dishwashing Machine - 208-240V
Item number 425cuh1MFR number CUH-1
Works WithView All Items
$6,013.00/Each
Contact us for details
Call 717-392-7472Mon-Fri 8AM-6PM EST
- Apply, opens link in this tab
Earn up to $180.39 back (18,039 points)
(18,039 points) with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.Quick Shipping
Usually ships in 1 business day
Product Overview
- Cleans 24 racks per hour with 0.84 gallons of water per rack
- Fast 2-minute cycle with auto fill, soft start, hot water sanitizing, and optional time extension
- 2 dish racks with integrated booster heater and Sense-a-Temp technology
- Top-mounted controls with digital display for service diagnostics and delime notification
- 3-part stainless steel scrap screen for easy clean-up
UPC Code:cuh-1
Works With
View All Items- Quantity
- 1/Each
- Shipping Weight
- 150 lb.
- Width
- 22 11/16 Inches
- Depth
- 24 Inches
- Height
- 32 5/16 Inches
- Amps
- 24.2 - 27.5 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208 - 240 Volts
- Booster Wattage
- 6 Kilowatts
- Features
- Booster Heater Included BPI Certified Energy Star Qualified Kosher NSF Certified UL Certified
- High or Low Temp
- High Temp
- Horsepower
- 1/5 hp 3/5 hp
- Minimum Water Inlet Temperature
- 110 Degrees F
- Number of Wash Cycles
- 2 Wash Cycles
- Plug Type
- Hardwire
- Racks (per Hour)
- 24
- Style
- Rack
- Type
- Undercounter Dishwashers
- Wash Cycle Time
- 120 Seconds
- Wash Tank Capacity
- 5.3 gal.
- Water Inlet Size
- 3/4 Inches
- Water Temperature
- 150 - 180 Degrees F
- Water Usage
- 0.84 Gallons Per Rack
Centerline by Hobart CUH-1 Details
Designed for busy kitchens, the Centerline by Hobart CUH-1 high-temperature undercounter dishwashing machine delivers convenience and reliability. Within one hour, it washes up to 24 racks, with each rack using 0.84 gallons of water and taking just 2 minutes per cycle. The duration of the cycle can be extended as needed.
Each cycle begins with a soft start and fills automatically. Revolving, anti-clogging upper and lower wash arms spray water onto the dishes, combining with detergent (sold separately) for a thorough wash. As the soapy water knocks off food particles, they collect in a 3-part stainless steel scrap screen, which is easy to remove and empty. The arms then disperse rinse water, washing away the soap.
This machine sanitizes with hot water, featuring an integrated booster heater that increases temperatures by 70 degrees Fahrenheit. Combined with Sense-a-Temp technology, it produces final rinse water at 180 degrees Fahrenheit. By using heat to sanitize, the machine eliminates the hassle and expense of replacing chemical sanitizer. The automatic pumped drain removes wash and rinse water at the end of the cycle.
This dishwasher is easy to program thanks to its easy-to-access, top-mounted user interface. It includes a digital temperature display, as well as a delime notification and cycle to simplify maintenance. Service diagnostics and error notifications also make it easy to isolate symptoms for troubleshooting, reducing the need for expensive and time-consuming service calls.
This dishwashing machine features 2 dishracks with 1 peg and 1 combination type. With both types available, you can wash a variety of bowls, plates, and other dishes. This item features a 5/8 hp wash motor, and a 208-240V electrical connection is required for operation.
Overall Dimensions:
Width: 22 11/16"
Depth: 24"
Height: 32 5/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Certified by NSF
This item is certified by NSF to applicable standards.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.

3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
