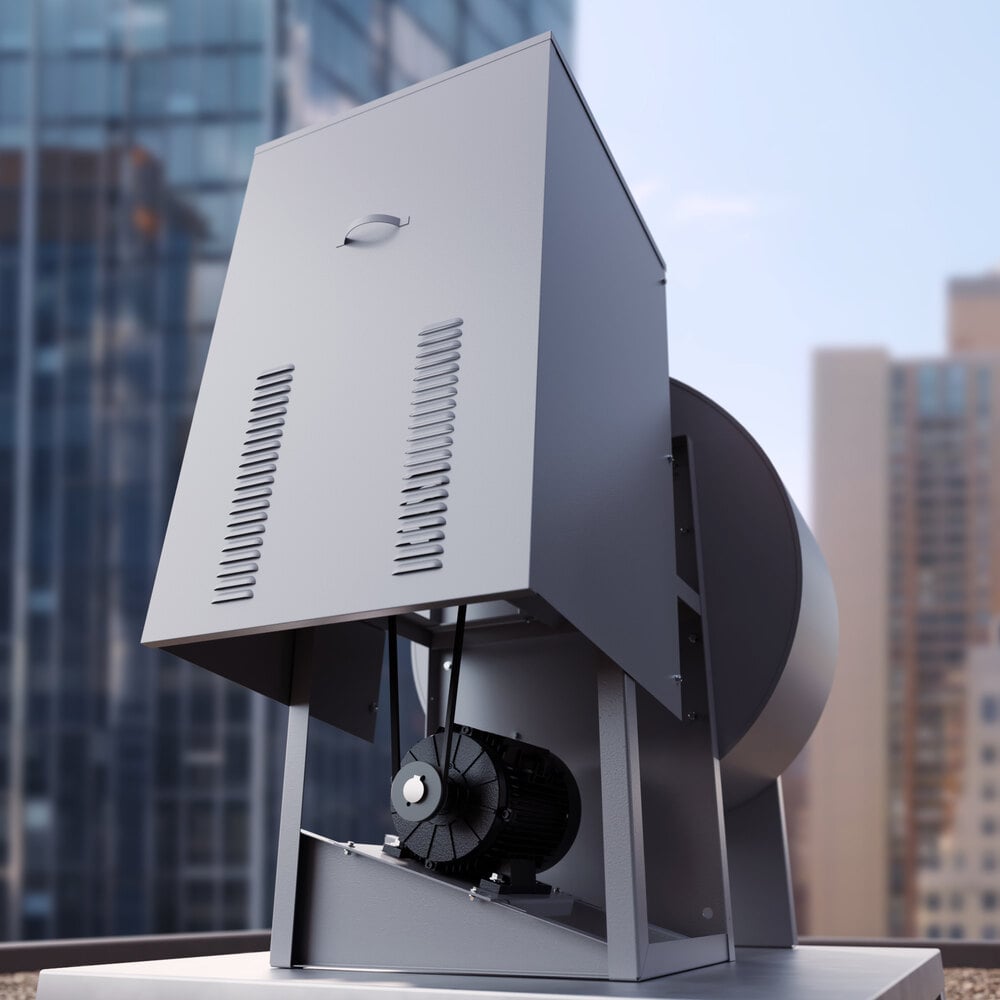

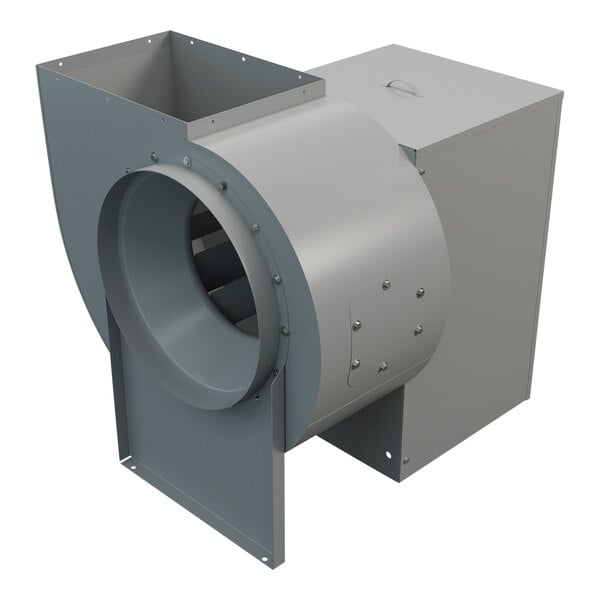

Canarm BI-24RM Series Belt Drive Utility Blower BIRM2430750M - 11,100 CFM, 3 Phase, 7.5 hp

Canarm BIRM2430750M Details

Enhance air quality in your industrial or commercial facility with this Canarm BI-24RM Series belt drive utility blower. This unit works to provide fresh air in your establishment. It boasts a 7 1/2 hp motor that delivers 6,600 CFM to 11,100 CFM. Built with continuously welded 16 gauge or heavier blower housing, a vinyl shaft seal, and heavy-duty pillow block ball bearings, this unit is suitable for long-term use. It is outfitted with a 2" drain for the removal of cleaning solutions. Plus, this unit comes with a bolted cleanout door to facilitate the cleaning and maintenance of the blower.

Coming with non-overloading backward inclined welded wheels, this unit is sure to operate smoothly and efficiently. The motor is vented to allow for maximum air flow, and the unit boasts a reliable belt drive system to power the blower's fan. The drive compartment cover protects the unit against weather damage, and it has handles that allow you to safely open and close the compartment. Designed with versatility in mind, the discharge position can be field rotated to eight different discharge positions. This unit is equipped with a counterclockwise rotation system. Easily access the motor from three sides of the unit for convenient maintenance.

This unit requires a 3 phase, 208-230V/460V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area. This unit meets NFPA 96 guidelines, and the air stream temperature rating is 250 degrees Fahrenheit.

Overall Dimensions:
Width: 44 11/16"
Depth: 51 5/16"
Height: 49 15/16"
