Product Overview

  • Provides fresh air in your establishment
  • Belt drive system powers the blower’s fan
  • Features continuously welded 16 gauge blower housing
  • Comes with non-overloading backward inclined welded wheels
  • 115V/208-230V; 1 phase
UPC Code:400016559057

Canarm BIRM1810500 Specs

Quantity
1/Each
Shipping Weight
172 lb.
Width
33 3/16 Inches
Height
35 7/8 Inches
Phase
1 Phase
Voltage
115 - 230 Volts
Color
Green
Gauge
16 Gauge
Horsepower
5 HP
Material
Metal
Max CFM
6,175 CFM
Min CFM
3,900 CFM
Motor Type
Belt Drive
Plug Type
Hardwire
Power Type
Electric
Speeds
Variable
Style
Upblast
Temperature Rating
250 - 400 Degrees F
Type
Utility Blowers

Canarm BIRM1810500 Details

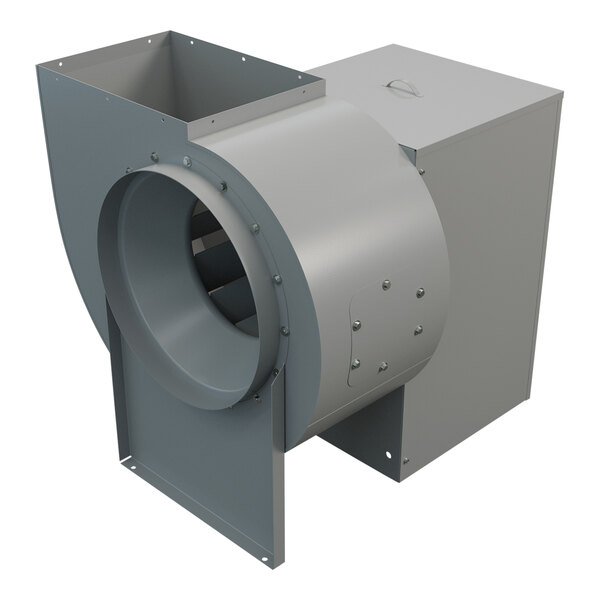

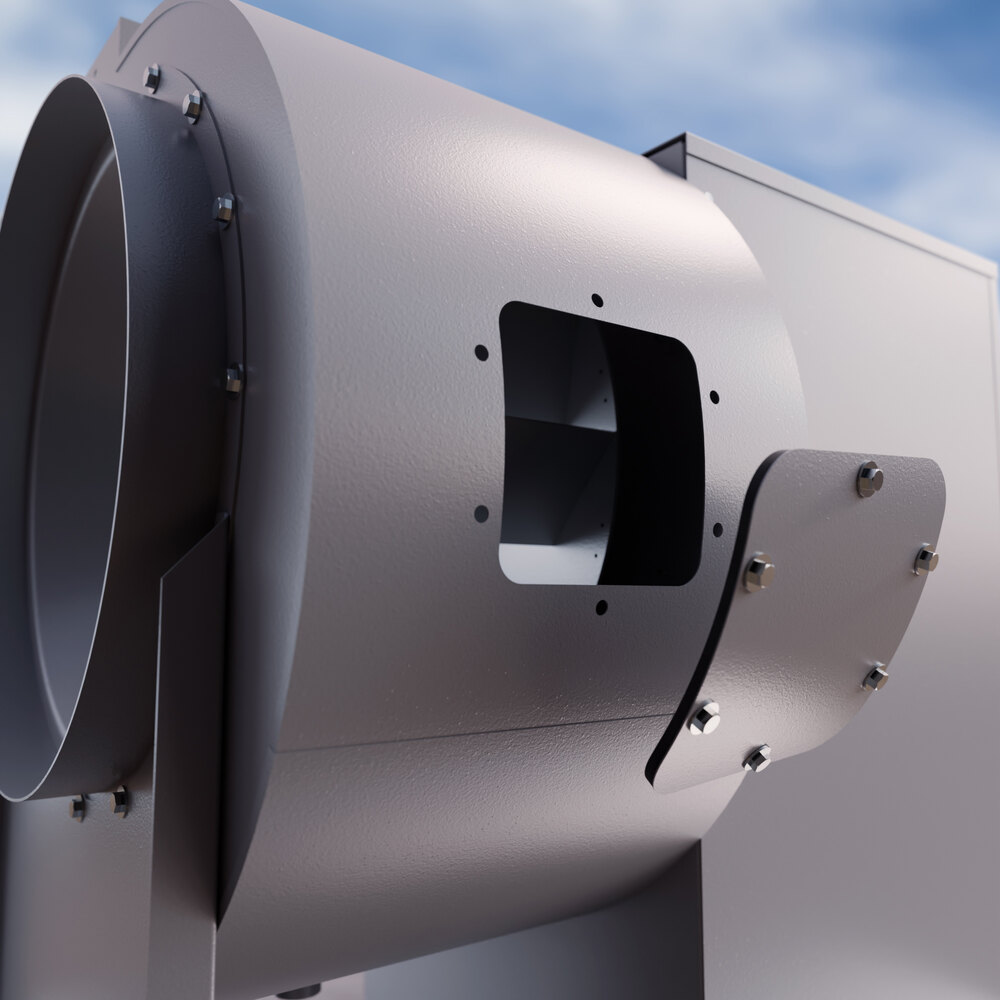

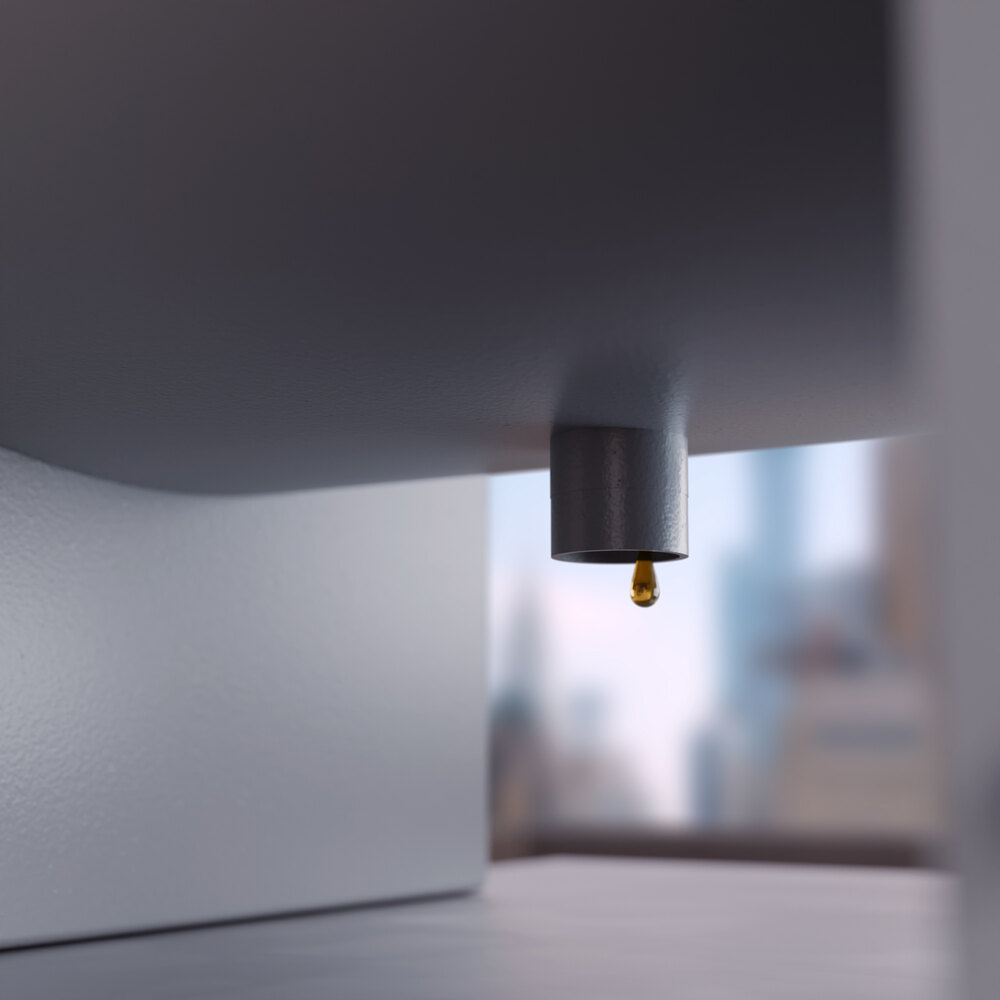

Enhance air quality in your industrial or commercial facility with this Canarm BI-18RM Series belt drive utility blower. This unit works to provide fresh air in your establishment. It boasts a 5 hp motor that delivers 3,900 CFM to 6,175 CFM. Built with continuously welded 16 gauge or heavier blower housing, a vinyl shaft seal, and heavy-duty pillow block ball bearings, this unit is suitable for long-term use. It is outfitted with a 2" drain for the removal of cleaning solutions. Plus, this unit comes with a bolted cleanout door to facilitate the cleaning and maintenance of the blower.

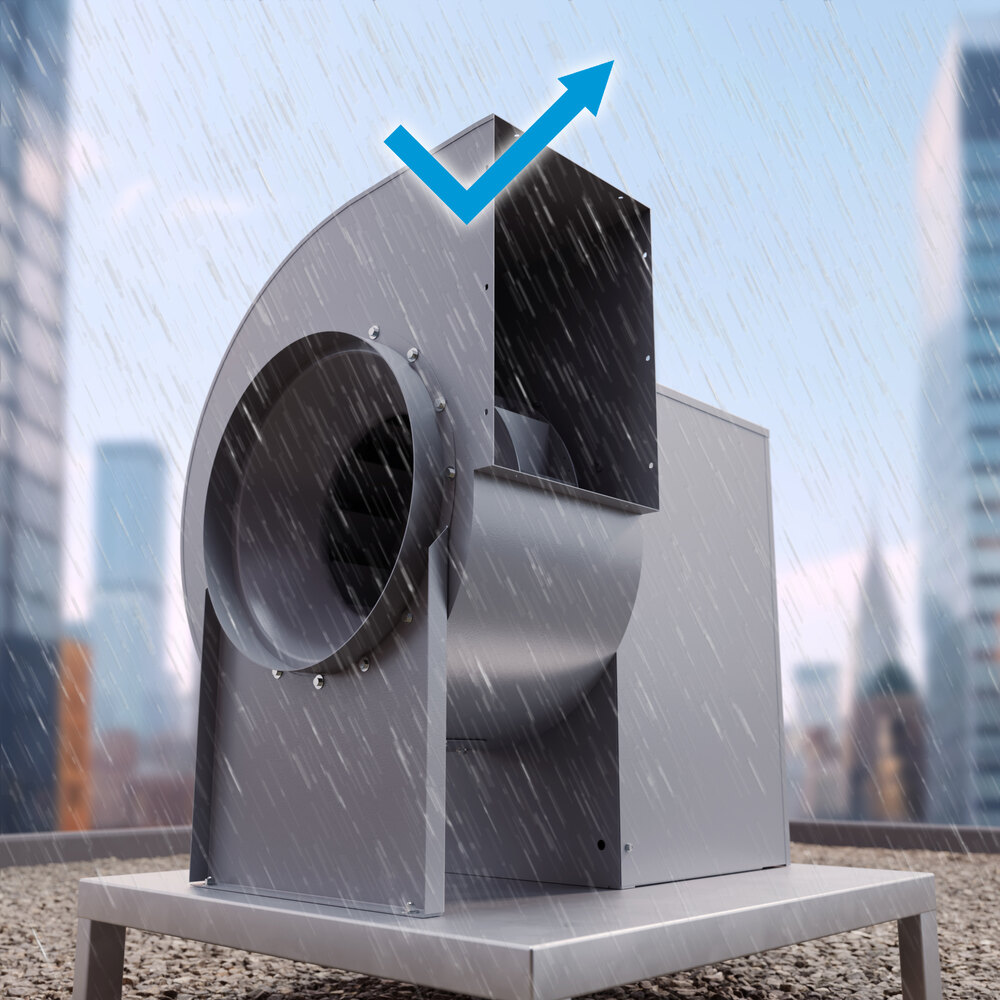

Coming with non-overloading backward inclined welded wheels, this unit is sure to operate smoothly and efficiently. The motor is vented to allow for maximum air flow, and the unit boasts a reliable belt drive system to power the blower's fan. The drive compartment cover protects the unit against weather damage, and it has handles that allow you to safely open and close the compartment. Designed with versatility in mind, the discharge position can be field rotated to eight different discharge positions. This unit is equipped with a counterclockwise rotation system. Easily access the motor from three sides of the unit for convenient maintenance.

This unit requires a 1 phase, 115V/208-230V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area. This unit meets NFPA 96 guidelines, and the air stream temperature rating is 250 degrees Fahrenheit.

Overall Dimensions:
Width: 33 3/16"
Depth: 38 1/4"
Height: 35 7/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
