$376.49/Each

Ships free with Plus

Earn up to $11.29 back (1,129 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 3-5 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Variable speed settings ensure versatility to suit your commercial or industrial facility
  • Durable spun aluminum construction does not chip, rust, or peel
  • 9" non-overloading wheel provides efficient airflow
  • Can be wall-mounted or installed on your roof top
  • Powerful 1/12 hp motor produces up to 500 CFM; 120/240V, 1 phase
UPC Code:623453879704

Canarm ALX090DD Specs

Quantity
1/Each
Shipping Weight
30 lb.
Width
20 3/4 Inches
Depth
19 Inches
Height
14 1/2 Inches
Phase
1 Phase
Voltage
120/240 Volts
Color
Gray
Drive Type
Direct Drive
Horsepower
1/12 HP
Installation Type
Roof Top Mounted  Wall Mounted
Material
Aluminum
Max CFM
500 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
RPM
1,650 RPM
Speeds
Variable
Style
Downblast  Fixed
Type
Downblast Exhausters

Canarm ALX090DD Details

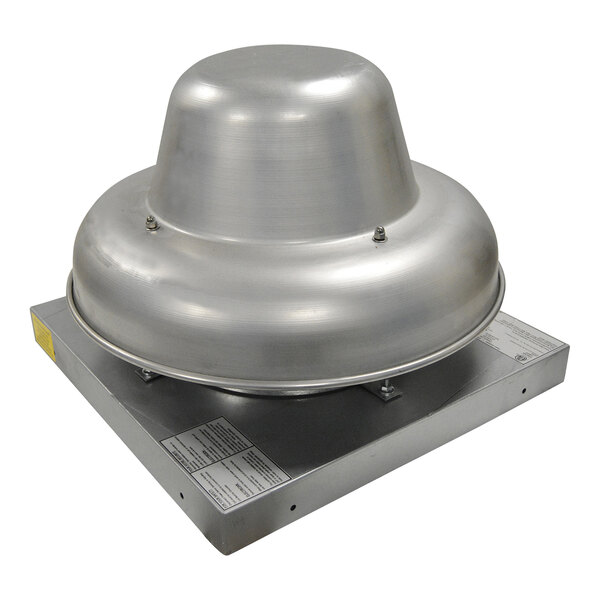

Enhance air quality in your warehouse, office, or commercial facility with this Canarm 9" variable speed downblast direct drive aluminum exhauster ALX090DD! This versatile unit works to exhaust air and provide ventilation in your establishment. Plus, the various speed settings ensure it will meet your specific needs.

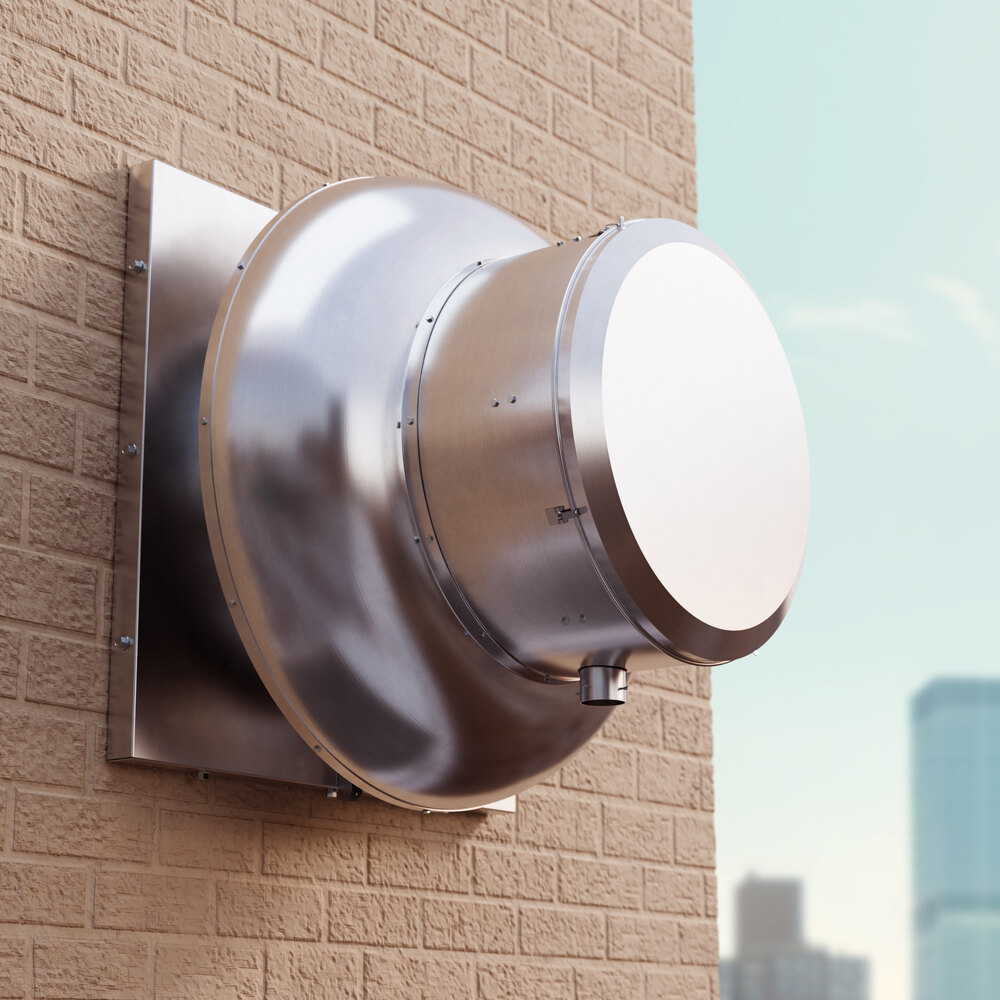

This rugged unit mounts directly to the wall or it can be installed on your roof top. For roof top applications, a 13" opening is required. This fan includes a durable spun aluminum construction that does not chip, rust, or peel to provide long-lasting use. This unit boasts a 1/12 hp motor that delivers 100 CFM to 500 CFM. The 9" aluminum wheel is inclined backwards to efficiently exhaust air, and it is non-overloading to provide consistent, safe use.

This unit requires a 120/240V electrical connection for operation. It must be hardwired, a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 20 3/4"
Depth: 19"
Height: 14 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I control the speed of the fan motor?

This fan has variable speed capabilities. Models using EC motors have “true variable speed” control available using the on-board speed adjustment with LED display, or they can be controlled remotely using a potentiometer (sold separately).

Can I use this hood fan in conjunction with my kitchen exhaust hood?

This downblast fan is not grease-rated and can only be used for kitchen hoods that are type II hoods. Typically, these are condensate hoods or heat removal hoods. If you have any questions about your fan matching your needs, please confirm with your local jurisdiction or inspector.

How do I size a fan for my hood?

There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.
Ask your own question!
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
