Product Overview

  • Variable speed capable with the use of a remote 0-10v potentiometer (sold separately)
  • Durable spun aluminum construction does not chip, rust, or peel
  • 12 1/4" non-overloading wheel provides efficient airflow
  • Can be wall-mounted or installed on your roof top
  • Powerful 1/3 hp motor produces up to 1300 CFM; 120/240V, 1 phase
UPC Code:623453850758

Canarm ALX120-DD033V Specs

Quantity
1/Each
Shipping Weight
35 lb.
Width
25 Inches
Depth
19 Inches
Height
19 Inches
Wheel Diameter
12 1/4 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120/240 Volts
Color
Silver
Curb Size
19 Inches
Drive Type
Direct Drive
Horsepower
1/3 HP
Installation Type
Roof Top Mounted  Wall Mounted
Material
Aluminum
Max CFM
1,300 CFM
Min CFM
977 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
RPM
1,650 RPM
Speeds
Variable
Style
Downblast  Fixed
Type
Downblast Exhausters

Canarm ALX120-DD033V Details

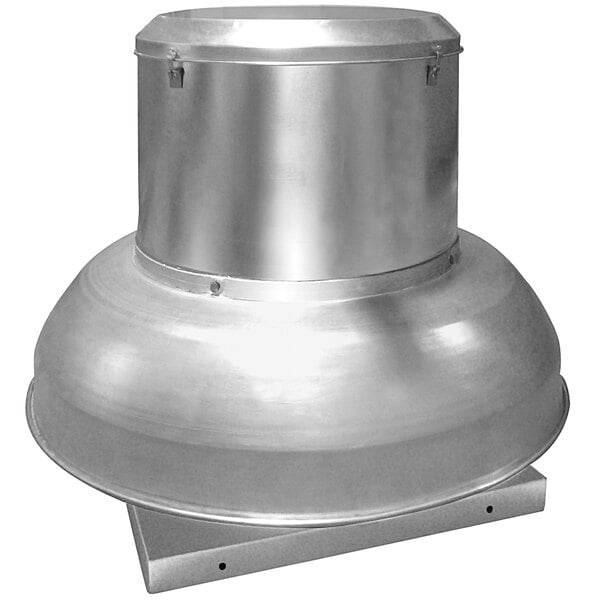

Enhance the air quality in your warehouse, kitchen, or commercial facility with this Canarm 12 1/4" variable speed capable downblast direct drive aluminum exhauster! This versatile unit works to exhaust air and provide ventilation in your establishment. The variable speed motor can easily be adjusted by using a remote 0-10V potentiometer (sold separately). The exhauster can be controlled up to 50' away when used with a remote potentiometer, providing you with convenient access even when you are not near the unit.

This rugged unit mounts directly to the wall or it can be installed on your roof top. For roof top applications, a 15" opening is required. This exhauster features a durable spun aluminum construction that does not chip, rust, or peel to provide long-lasting use. This unit boasts a 1/3 hp motor that delivers 451 CFM to 1300 CFM. The 12 1/4" aluminum wheel is inclined backwards to efficiently exhaust air and is non-overloading to provide consistent, safe use. Quick release latches are included to easily access the motor.

This unit requires a 120/240V electrical connection for operation. It must be hardwired since a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 25"
Depth: 19"
Height: 19"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

Can I use this hood fan in conjunction with my kitchen exhaust hood?

This downblast fan is not grease-rated and can only be used for kitchen hoods that are type II hoods. Typically, these are condensate hoods or heat removal hoods. If you have any questions about your fan matching your needs, please confirm with your local jurisdiction or inspector.

How can I control the speed of the fan motor?

This fan has a variable speed capable motor. The speed of the motor can be easily adjusted by using a remote 0-10V potentiometer (sold separately).

How do I size a fan for my hood?

There are many factors that can affect which fan you need for your hood. Any recommended hood sizes given in a fan’s description are representative of a typical installation – factors like long duct runs, duct turns, and using high heat equipment like fryers and charbroilers can require a more powerful fan. Please consult your AHJ (Authority Having Jurisdiction) or installer if you need assistance sizing a hood fan.
Ask your own question!
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
