Voltage: 220-240V, 1 Phase
Installation Services
Product Overview
- Single deck, half-sized design
- Dual pane thermal glass window in a left-hinged stainless steel door
- Includes 5 chrome-plated racks; 9 rack positions
- Tubular heaters; two speed fan motor
- Solid state manual controls; temperature range of 200 to 500 degrees Fahrenheit
- Stainless steel front, top, and sides
- Solid mineral fiber insulation at the top, back, sides, and bottom
- 220-240V, 1 Phase, 5.6 kW
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 295 lb.
- Width
- 30 1/4 Inches
- Depth
- 25 1/8 Inches
- Height
- 29 1/16 Inches
- Interior Width
- 15 1/4 Inches
- Interior Depth
- 21 Inches
- Interior Height
- 20 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 220 - 240 Volts
- Wattage
- 5.6 Kilowatts
- 13 x 18 Pan Capacity
- 5 Pans
- Amps - Per Line
- 24
- Control Type
- Dial
- Features
- Made in America NSF Listed
- Horsepower
- 1/4 HP
- Installation Type
- Freestanding
- Maximum Temperature
- 500 Degrees F
- Number of Chambers
- 1 Chamber
- Number of Decks
- Single
- Number of Doors
- 1 Door
- Number of Racks
- 5 Racks
- Oven Interior Style
- Standard Depth
- Plug Type
- Hardwire
- Power Type
- Electric
- Size
- Half Size
- Temperature Range
- 200 - 500 Degrees F
Blodgett CTB SINGLE Details

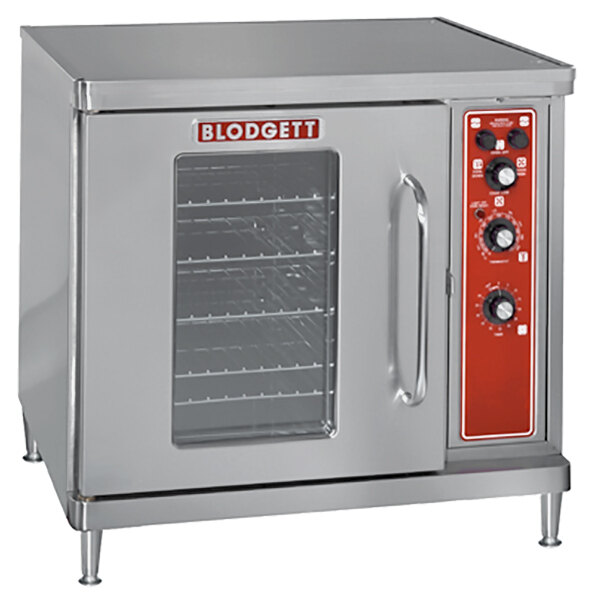

Add greater efficiency and baking capacity to your restaurant, cafe, or kiosk by choosing this space-efficient Blodgett CTB Premium series single deck half size electric convection oven! This convection oven features two tubular heaters that provide a total of 5.6 kW of heating power.
The right-side solid state manual control offers a wide temperature range, from 200 to 500 degrees Fahrenheit, and the separate dial controls for the temperature and timer allow you to quickly and easily apply the settings that you need. A two speed, 1/4 hp convection motor ensures even temperatures throughout the oven cavity for better baking results than conventional ovens.
The interior of this oven's cavity is covered with a dual-sided porcelainized baking compartment liner. This oven can hold up to (5) 13" x 18" half size sheet pans in a front to back position and it has 9 rack positions with a minimum of 1 5/8" spacing. Five chrome plated racks are included to provide support for all of your heaviest baking trays.
The stainless steel front, sides, and top allow durability, ease of cleaning, and corrosion resistance while solid mineral fiber insulation at the top, back, sides, and bottom helps to prevent heat from escaping for greater energy conservation. The single left-hinged door features dual pane thermal glass encased in a stainless steel door frame with a single chrome plated door handle.
The oven rests on 4" tall stainless steel legs that provide the necessary clearance for cleaning and maintenance. It requires a 220-240V, 1 phase electrical connection.
Overall Dimensions:
Left to Right: 30 1/4"
Front to Back: 25 1/8"
Height: 29 1/16"
Interior Dimensions:
Left to Right: 15 1/4"
Front to Back: 21"
Height: 20"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
CE Listed
This product complies with the standards imposed by Conformance European (CE).
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Need Parts & Accessories?
Show replacement parts and accessories for Blodgett CTB SINGLE today!
Resources and Downloads for
Blodgett CTB SINGLE
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
