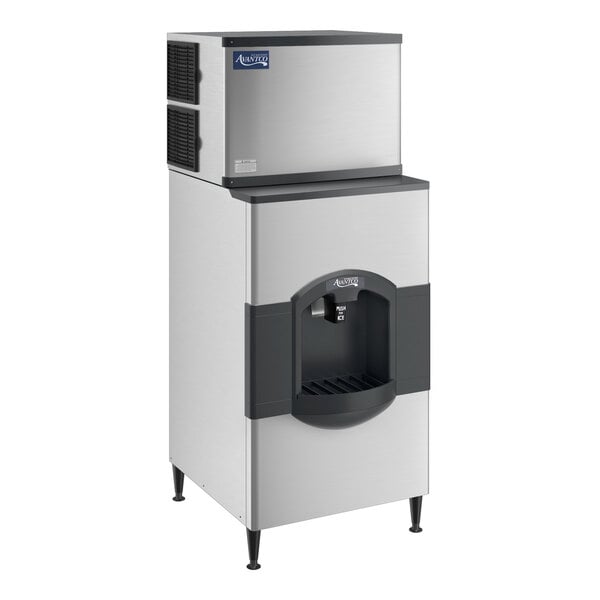

Name: Avantco Ice KMC-H-530-HA 30" Air Cooled Modular Half Cube Ice Machine with Ice Dispenser - 500 lb.
Brand: Avantco Ice Machines
SKU: 194KMCH530HA
Price: 5641.95 USD
Availability: InStock

0:00 / 0:00

Regularly

$5,641.95/Each

Plus Member Price

$5,441.95/Each

Ships free with Plus

Earn up to $169.26 back (16,926 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

Makes up to 500 lb. of half cube ice per day; Dispenser capacity 180 lb.
Durable 304 stainless steel ice machine and corrosion-resistant metallic cabinet
Digital controller allows user to quickly identify issues and the current stage of production
Removable air filter for quick cleaning and maintenance
R290 refrigerant; 115V

UPC Code:400015401463

View all Avantco Ice Machines Hotel Ice Machines

Make sure you've always got plenty of fresh ice on hand and easily accessible with the 30" air cooled modular full cube ice machine with dispenser!

Capable of producing up to 500 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand at your hotel, bar, or cafe. An included ice dispenser holds up to 180 lb. of ice and features a deep sink to accommodate hotel ice buckets of almost any size. This unit requires a 115V electrical connection for operation.

NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.

Intuitive Diagnostics

For ease of maintenance, a built-in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Durable Construction

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is corrosion-resistant and built to last in the busiest commercial environments.

Enhanced Stability

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

OceanLoch Mounting

Pre-drilled holes allow you to mount your OceanLoch water filter to ensure you're serving the cleanest ice possible.

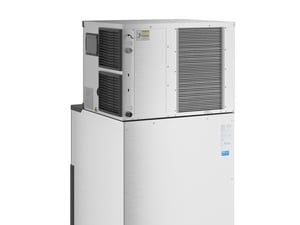

Great Ventilation

The ice machine is also designed for side-breathing and rear exhaust, which prevents hot air from being blown outward into your kitchen or service area. It also uses R290 refrigerant. Plus, a nickel-plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

Customer Q&AAsk a Question

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

Does the height of this item include the feet?

The height listed on this product includes the adjustable feet set to their lowest setting.

Does this Avantco ice machine have backflow prevention?

Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My ice machine has been shut down, or not in use since the COVID-19 shutdowns, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

What type of environment is best suited for this Avantco Ice Machine?

It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.

Why should I buy a water filter along with this product?

Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.

Will this Avantco Ice machine fit on other brands of ice bins and dispensers?

We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.

Compare to Other Products

Item #: 194kmch530haAvantco Ice KMC-H-530-HA 30" Air Cooled Modular Half Cube Ice Machine with Ice Dispenser - 500 lb.
Free Shipping
Price:$5,641.95/Each

30 Inches

33 1/2 Inches

47 1/4 Inches

180 lb.

Half Size Cubes

Item #: 194kmcf530haAvantco Ice KMC-F-530-HA 30" Air Cooled Modular Full Cube Ice Machine with Ice Dispenser - 497 lb.
Free Shipping
Price:$5,641.95/Each

22 Inches

33 1/2 Inches

47 1/4 Inches

180 lb.

Full Size Cubes

Overall Dimensions:

Overall Width:: 30 Inches
Overall Depth:: 33 1/2 Inches
Overall Height:: 75 5/8 Inches

Ice Machine Dimensions:

Ice Machine Width:: 30 Inches
Ice Machine Depth:: 24 3/8 Inches
Ice Machine Height:: 22 3/8 Inches

Ice Dispenser Dimensions:

Ice Dispenser Width:: 30 Inches
Ice Dispenser Depth:: 33 1/2 Inches
Ice Dispenser Height:: 47 1/4 Inches
