$3,349.00/Each

Ships free with Plus

Protect Your Product with Safeware

Protection Powered by Safeware

  • 1100 lb. weight capacity; 1 3/4" stainless steel top with marine edge
  • Each drawer holds 2 full size food pans, 4" deep
  • Stainless steel exterior for durability
  • Environmentally-friendly R290 refrigerant
  • 1/5 hp, 115V
Shipping:

Other Products from this Line

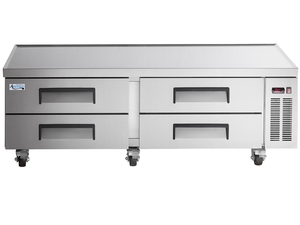

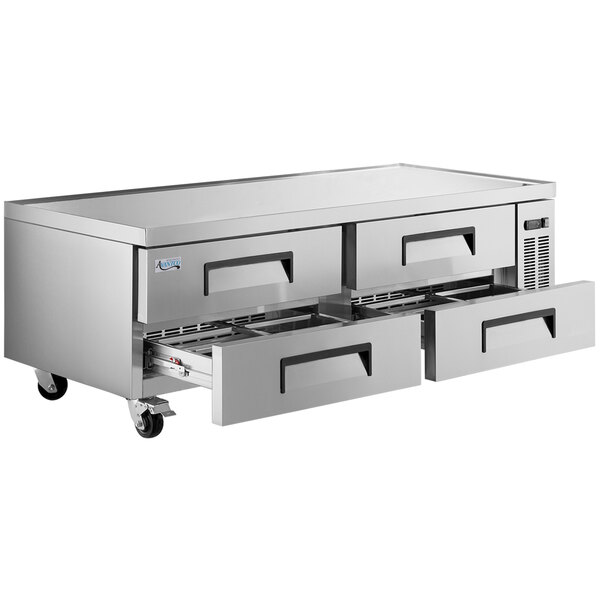

This Avantco CBE-72-HC 72" 4 drawer refrigerated chef base streamlines production and increases efficiency.

Provide a convenient place to hold and store cold foods right where they are needed by adding this refrigerated chef base to your kitchen! As a space and productivity solution for your kitchen, this chef base makes it easy to increase efficiency by placing countertop cooking equipment right on top of the chef base where you store your cold ingredients.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

1 3/4" Stainless Steel Top

This base features a durable 1 3/4" stainless steel top that can hold up to 1100 lb. Equipped with a marine edge, the unit's top helps to contain drips and spills for easy cleanup.

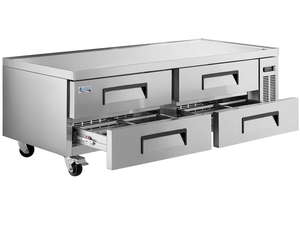

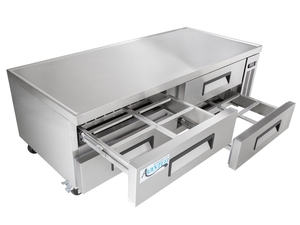

Four Drawers

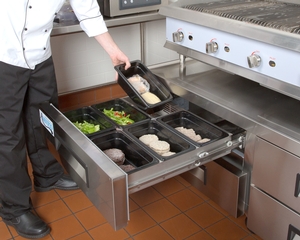

This refrigerated chef base is equipped with four drawers to hold your cold ingredients. Each drawer in this unit can hold 2 full size food pans (sold separately) or a combination of other configurations, so your kitchen staff will always have fresh ingredients within reach.

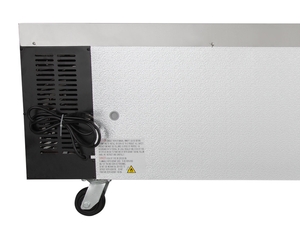

1/5 hp Refrigeration System

The refrigeration system uses a 1/5 hp compressor and R290 refrigerant to cool the cabinet. It requires a 115V electrical connection and uses electronic temperature controls to keep ingredients at safe temperatures between 33 and 40 degrees Fahrenheit.

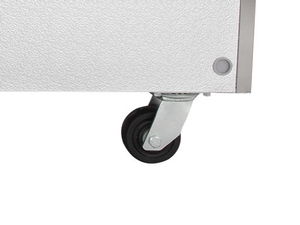

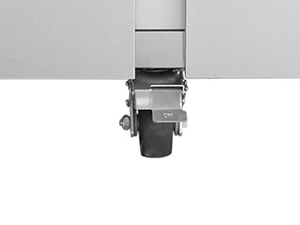

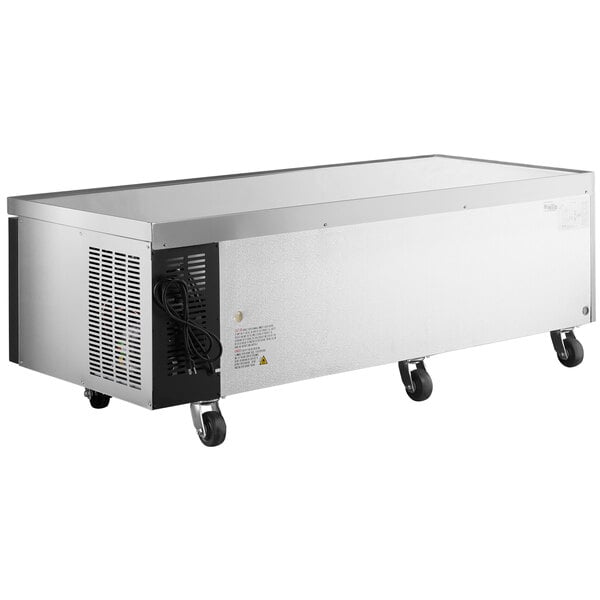

(4) 4" Casters

The unit rests on 4" casters, offering convenient mobility for easier cleaning.

Stainless Steel Construction

The cabinet is made of type 430 stainless steel inside and out for added durability.

Removable Drawer Gaskets

Each drawer gasket is removable for easy cleaning and maintenance.

Customer Q&A Ask a Question

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used as an eco-friendly refrigerant by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
What kinds of pans can I use in my refrigerated prep table?
While various configurations combining traditional 1/3 size, 1/6 size, and other food pan sizes are possible, it's important to refer to your equipment's Specification Sheet and/or Owner's Manual to see what pan sizes and configurations are recommended. Certain accessories may be needed in order to use pans of a different size than what is recommended. It is also important to note that mixing and matching pans from different manufacturers may result in the pans not fitting properly.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

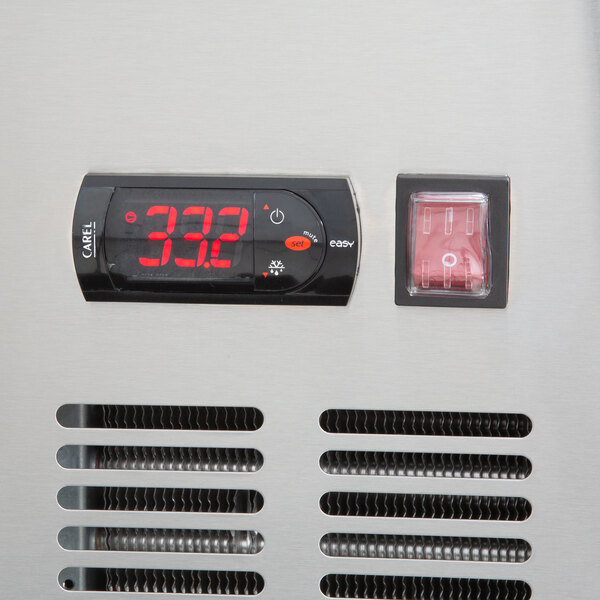

How to Program a Carel PJEZ Controller on an Avantco Refrigerator

Learn how to use a Carel PJEZ controller on an Avantco refrigerator to set the low temperature limit.

Here's some basic settings you can make to your Avantco refrigerator in your restaurant. If you want to adjust the temperature, you hold set for one second and you'll see your low temperature limit. This unit is set to shut off at 33 degrees. If you want to have it shut off at a warmer temperature you can adjust it up. But it will not go below 33. You see when I get to 33 it just cycles back up to the top of the temperature range. Take this unit back down to 33 degrees. Press set to save it and you're back to your home screen.

Copy and paste the embed code above.

Compare to Other Products

Overall Dimensions:
  • Width: 72 3/8 Inches
  • Depth: 32 1/8 Inches
  • Height: 25 7/8 Inches
  • Capacity: 16 cu. ft.
Interior Dimensions:
  • Width: 60 5/8 Inches
  • Depth: 27 1/2 Inches
  • Height: 16 1/2 Inches

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Resources and Downloads

Avantco CBE-72-HC 72 4 Drawer Refrigerated Chef Base Specsheet Specsheet Avantco CBE Series Updated Manual Manual Avantco Ref Limited Service Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Avantco Refrigeration equipment with a labor warranty purchased prior to October 15th 2020 is warranted for 1 year parts & labor / 5 year compressor. RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.

Equivalent Items

Avantco Refrigeration CBE-72 (Formerly)

Customer Reviews

  • Overall User Rating: Avantco CBE-72-HC 72" 4 Drawer Refrigerated Chef Base

    5.0 stars from 3 reviews

    3
    0
    0
    0
    0

    People Talk About:

    equipment kitchen right service fit fast excellent easily drawers described
    Good quality, as described on the image, helpful customer service and fast shipping. Will buy again merchandise from here. Thank you much for your service.
    excellent addition to our kitchen it is wide enough to hold 72 total inches of equipment. Keeps all our food supplies cold and fresh.. only issue is getting the right 1/3 pans to fit the drawers.
    This is a great refrigeration unit because i can easily place equipment on top of it . I have my range and griddle right above it . Very useful when you have limited space for your kitchen !
