Product Overview

  • Made in North America
  • Type 430 stainless steel exterior with a type 201 interior; self-closing, stay-open, locking door
  • Digital control and automatic defrost; eco-mode to save energy and extend compressor life
  • Includes 3 epoxy-coated adjustable shelves with an 80 lb. capacity each
  • 115V, 1/4 hp, R-290 refrigerant
UPC Code:400015166188
Quick Shipping
Usually ships in 1 business day


Shipping Weight
300 lb.
27 5/8 Inches
31 1/4 Inches
80 Inches
Power Cord Length
120 Feet
Interior Width
23 1/8 Inches
Interior Depth
26 1/2 Inches
Height with Casters
84 3/4 Inches
Interior Height
56 1/4 Inches
2 Amps
60 Hertz
1 Phase
115 Volts
Access Type
20 cu. ft.
With Casters
Compressor Location
Bottom Mounted
All Stainless Steel
Door Style
Door Type
Dutch Half Doors
Without Dutch Half Doors
Self-Closing Doors
Hinge Location
1/4 HP
Individual Shelf Capacity
80 lb.
Installation Type
Number of Compressors
1 Compressor
Number of Doors
1 Door
Number of Shelves
3 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
Temperature Range
32 - 38 Degrees F

Customer questions about this product

How do I correctly install the shelves into this unit?
To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
Can this item fit through a standard height 80" doorway ?
Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!

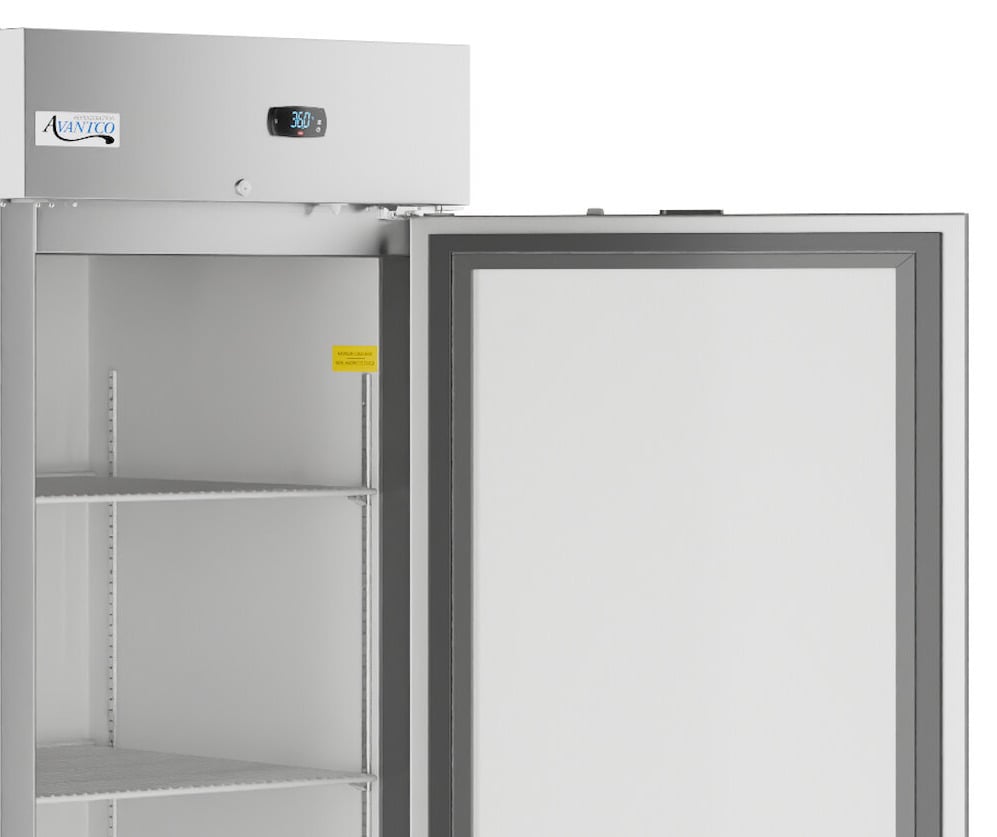

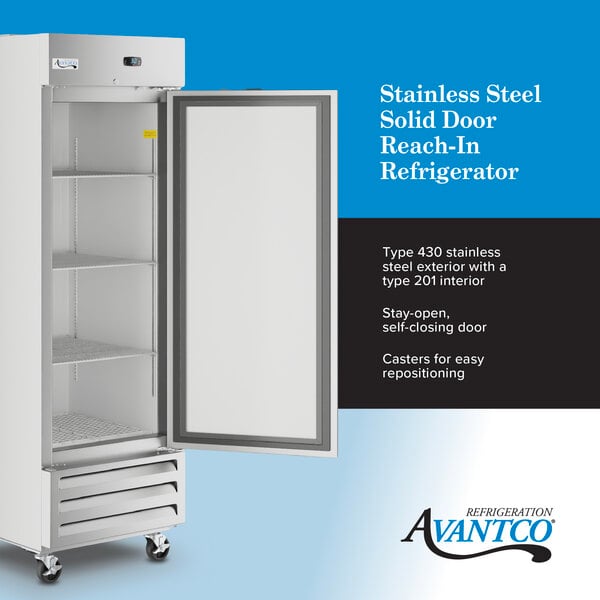

Made in North America, this Avantco A Plus AP-23R 27 5/8" solid door refrigerator gives your establishment the performance you need and rely on for proper food safety! Designed to suit a commercial environment, this refrigerator features a durable type 403 stainless steel exterior and a type 201 stainless steel interior for corrosion-resistance and easy cleaning.

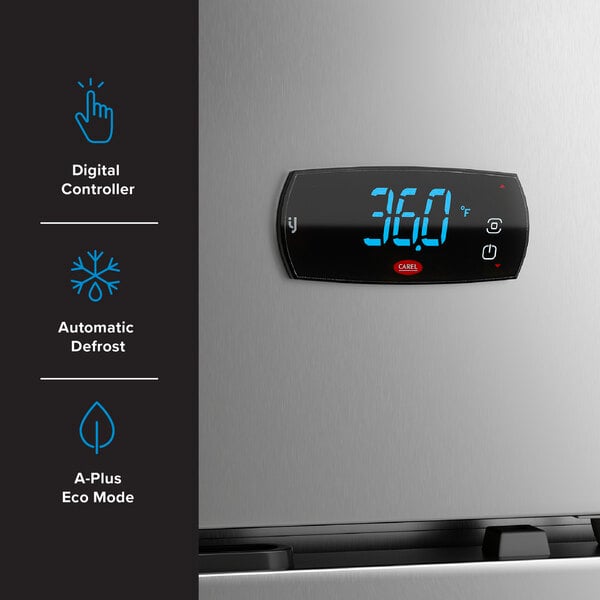

Equipped with Avantco's A-Plus Eco Mode, this unit can automatically detect door openings and will enter a power-saving cycle in off hours. This system will reduce your energy cost without sacrificing consistent product temperature! This digital controller lets you set and adjust your refrigerator as needed, plus the automatic defrost helps to minimize maintenance.

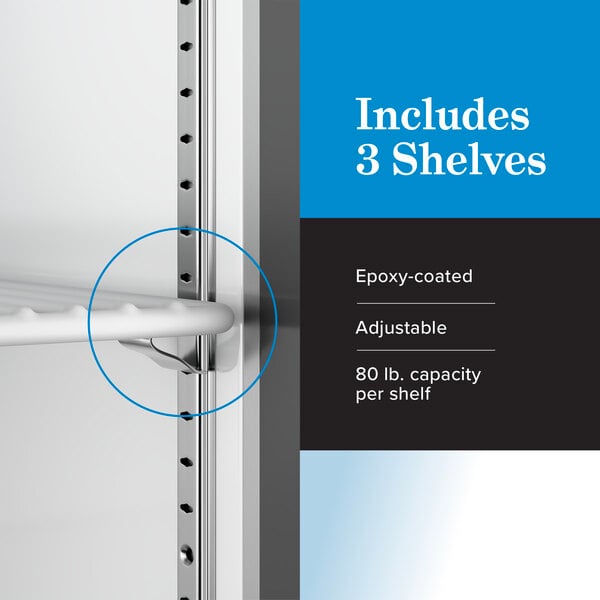

For convenience, 3 epoxy coated shelves can be easily adjusted inside the cabinet to meet your unique storage needs. Each shelf can hold up to 80 lb. for storing heavy loads of pre-made foods or ingredients. For optimal temperature retention, the entire cabinet is insulated. This refrigerator also comes with casters so that you can easily move it for easy cleaning and maintenance.

For easy access to your refrigerator, this unit comes with a solid door with both stay-open and self-closing closing features for the convenience of your employees. The door is field reversible for versatile use. Plus, the door can be locked to protect your stock overnight or during off hours.

Designed to maintain temperatures from 32 to 38 degree Fahrenheit, this refrigerator boasts a 1/4 hp compressor that uses R-290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. This item requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 27 5/8"
Depth: 31 1/4"
Height: 80"
Height with Casters: 84 3/4"
Capacity: 20 cu. ft.

Interior Dimensions:
Width: 23 1/8"
Depth: 26 1/2"
Height: 56 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

  • ETL US

    ETL US

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States.

  • Imported from Mexico

    Imported from Mexico

    This item is imported from Mexico.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • 5-15P


    This unit comes with a NEMA 5-15P plug.
