Voltage: 480V
Installation Services
Product Overview
- Six 9 1/2" round french plates with 2 kW heat output each
- Standard oven base with one adjustable oven rack
- Infinite heat controls for precise cooking
- Aluminized steel frame with stainless steel accents for durability
- Smooth heating surface is easy to clean
- Removable front panel for easy maintenance
- 6" stainless steel adjustable legs
- 480V, wired 3 phase, 17 kW; field convertible to 1 phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 440 lb.
- Width
- 36 Inches
- Depth
- 34 Inches
- Height
- 58 Inches
- Oven Interior Width
- 26 1/2 Inches
- Oven Interior Depth
- 26 3/8 Inches
- Cooking Surface Height
- 37 Inches
- Oven Interior Height
- 14 Inches
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 480 Volts
- Wattage
- 17 Kilowatts
- Burner Style
- French
- Door Type
- Solid
- Features
- Field-Convertible (Electrical)
- Installation Type
- Freestanding
- Number of Burners
- 6 Burners
- Number of Ovens
- 1 Oven
- Power Type
- Electric
- Range Base Style
- Standard Oven
- Temperature Range
- 200 - 500 Degrees F
Vulcan EV36S-6FP480 Details

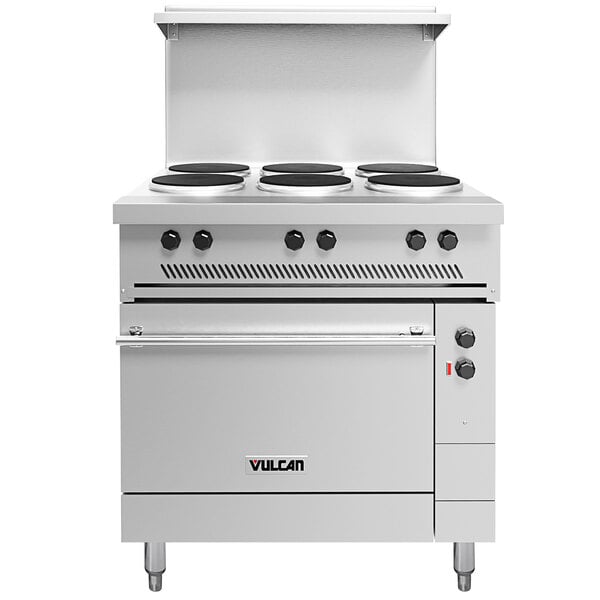

Cook pan after pan of your signature entrees, side dishes, and appetizers with this Vulcan EV36S-6FP480 Endurance series 36" electric range with 6 french plates! Thanks to the six 9 1/2" diameter french plates, your chef can cook six stock pots or fry pans full of product at the same time. Each smooth, 2 kW heating area is made of durable cast iron to help retain heat, while also making it much easier to clean than traditional ranges with coil-style burners. Infinite heat controls provide the operator with precise temperature control to accommodate the various cooking temperatures of different foods.
This unit also features an oversized standard oven base for your baking and warming needs. The oven has a 5 kW output with an adjustable temperature range of 200-500 degrees Fahrenheit and cool touch control knobs that allow your employees to operate the unit more safely and precisely. Inside, this oven has top browning control and a single oven rack with three position options.
A fully welded, aluminum steel frame with stainless steel front, sides, back riser, and legs provide outstanding durability in your busy, commercial establishment. And, with a compact 36" width and 6" adjustable legs, you'll have no trouble finding the perfect spot for this unit among the rest of your kitchen equipment. A 480V, 3 phase electrical connection is required; unit is field convertible to 1 phase.
Overall Dimensions:
Left to Right: 36"
Front to Back: 34"
Height: 58"
Interior Dimensions:
Left to Right: 26 1/2"
Front to Back: 26 3/8"
Height: 14"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Customer questions about this product
Can I modify this item?
Made in America
This item was made in the United States of America.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
