Voltage: 240V
Installation Services
Product Overview
- Compact, single-deck design saves space
- Full size oven cavity with 5 adjustable nickel-plated racks
- Temperature range from 150 to 500 degrees Fahrenheit
- Stainless steel exterior with simultaneous chain driven, double pane glass doors
- 240V, 3 phase (field convertible to 1 phase), 12.5 kW
Other Products from this Line
$11,430.00/Each
$5,715.00/Each
$11,900.00/Each
$11,430.00/Each
$5,715.00/Each
$11,900.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 440 lb.
- Width
- 40 1/4 Inches
- Depth
- 41 3/4 Inches
- Height
- 54 3/4 Inches
- Interior Width
- 29 Inches
- Rack Width
- 28 1/4 Inches
- Interior Depth
- 26 1/2 Inches
- Rack Depth
- 20 1/2 Inches
- Interior Height
- 20 Inches
- Leg Height
- 23 3/4 - 24 3/4 Inches
- Amps
- 29 - 33 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 240 Volts
- Wattage
- 12.5 Kilowatts
- Control Type
- Dial
- Door Type
- Glass
- Features
- Energy Star Qualified Field-Convertible (Electrical) Made in America NSF Listed
- Gas Connection Size
- 3/4 Inches
- Horsepower
- 1/2 HP
- Installation Type
- Freestanding
- Material
- Stainless Steel
- Number of Chambers
- 1 Chamber
- Number of Decks
- Single
- Number of Doors
- 2 Doors
- Number of Racks
- 5 Racks
- Oven Interior Style
- Standard Depth
- Plug Type
- Hardwire
- Power Type
- Electric
- Size
- Full Size
- Temperature Range
- 150 - 500 Degrees F
- Type
- Convection Ovens
Wolf WC4ED 240/3 Details

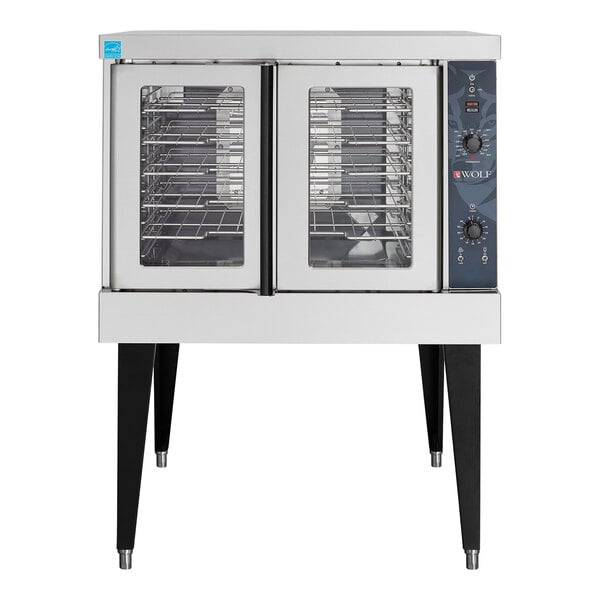

Maximize your kitchen's efficiency and productivity with this Wolf single deck electric convection oven. This compact, single-deck oven is designed to save valuable space in your commercial kitchen. The full size oven cavity measures 26 1/2" deep and has 5 adjustable nickel-plated racks. 11 rack positions give you the flexibility to cook a variety of dishes at once and accommodate different product sizes. The stainless steel exterior not only adds a sleek and professional look to your kitchen, but it is also durable and easy to clean.
The simultaneous chain driven 50/50, double pane glass doors provide excellent insulation and allow you to easily monitor your dishes as they cook. It boasts an easy-to-maintain porcelain oven cavity, and the non-sag insulation on the top, rear, sides, bottom, and doors ensures optimal heat retention. Plus, the moisture vent helps to regulate humidity levels, ensuring your food comes out perfectly every time. Once you are finished cooking, the oven cool switch rapidly cools the oven down for safe and efficient operation.
This model rests on 23 3/4" painted legs with bullet feet adjustable up to 1", providing stability and durability. The 12.5 kW heater and solid state temperature controls adjust from 150 to 500 degrees Fahrenheit, giving you complete control over your cooking. The 1/2 hp, 2 speed oven blower motor switches between speeds for different food types and provides powerful, even heat distribution for consistent results. This oven requires a 240V, 3 phase electrical connection. It is field convertible to 1 phase, providing versatility for different electrical setups.
Overall Dimensions:
Width: 40 1/4"
Depth: 41 3/4"
Height: 54 3/4"
Interior Dimensions:
Width: 29"
Depth: 26 1/2"
Height: 20"
Oven Rack Dimensions:
Width: 28 1/4"
Depth: 20 1/2"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Customer questions about this product
I see that this electrical unit is "field-convertible." What does that mean?
For safety reasons, we recommend having a qualified service professional perform the conversion. Your equipment’s warranty may require that such conversions be done by a professional, and failure to do so may void warranty coverage.
Made in America
This item was made in the United States of America.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
