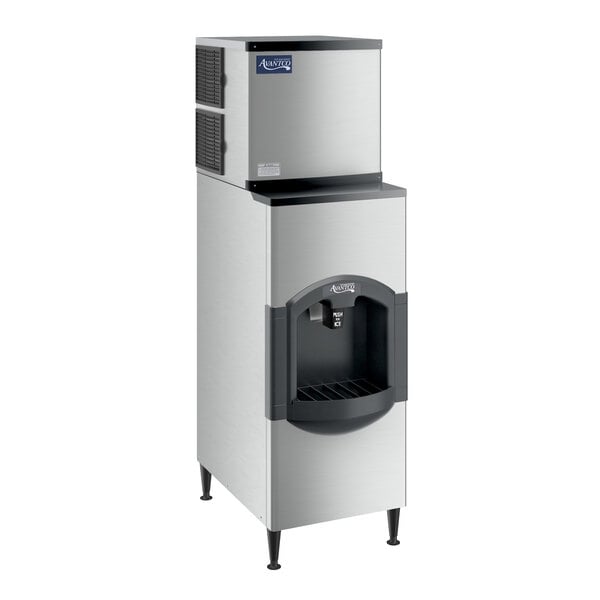

Scratch and Dent Avantco Ice KMC-H-322-HA 22" Air Cooled Modular Half Cube Ice Machine with Ice Dispenser - 350 lb.
Item number 194kmch322ha
Works WithView All Items
Condition:Outlet
Quick Shipping
Usually ships in 1 business day
Product Overview
- Makes up to 350 lb. of half cube ice per day; Dispenser capacity 120 lb.
- Durable 304 stainless steel ice machine and corrosion-resistant metallic cabinet
- Digital controller allows user to quickly identify issues and the current stage of production
- Removable air filter for quick cleaning and maintenance
- R290 refrigerant; 115V
Works With
View All Items
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. We guarantee these items will work on arrival following installation in accordance with the product documentation. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 320 lb.
- Ice Dispenser Width
- 22 Inches
- Ice Machine Width
- 22 Inches
- Overall Width
- 22 Inches
- Ice Dispenser Depth
- 33 1/2 Inches
- Ice Machine Depth
- 24 3/8 Inches
- Overall Depth
- 33 1/2 Inches
- Ice Dispenser Height
- 47 1/4 Inches
- Ice Machine Height
- 22 3/8 Inches
- Overall Height
- 69 5/8 Inches
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 344 Pounds
- Average Running Decibels
- 68.67 dB
- Bin Storage Capacity
- 120 lb.
- Color
- Silver
- Condenser Type
- Air-Cooled
- Control Type
- Digital
- Dispenser Style
- Push Button
- Exterior Material
- Stainless Steel
- Features
- BPI Certified NSF Certified
- Ice Type
- Half Size Cubes
- Installation Type
- Modular
- Interior Material
- Polyethylene
- Max Decibels
- 78 dB
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Stainless Steel Type
- Type 304
- Type
- Ice Machines / Dispensers
- Water Inlet Size
- 3/4 Inches
- 1x
- Avantco Ice HBN120-22 22" Wide Hotel Ice Dispenser 120 lb. Capacity - 115V#194HBN12022
- 1x
- Avantco Ice MC-H-322-A 22" Air-Cooled Modular Half Cube Ice Machine - 350 lb., 115V#194MCH322A
Scratch and Dent Details
- New; never used
- Out of original packaging

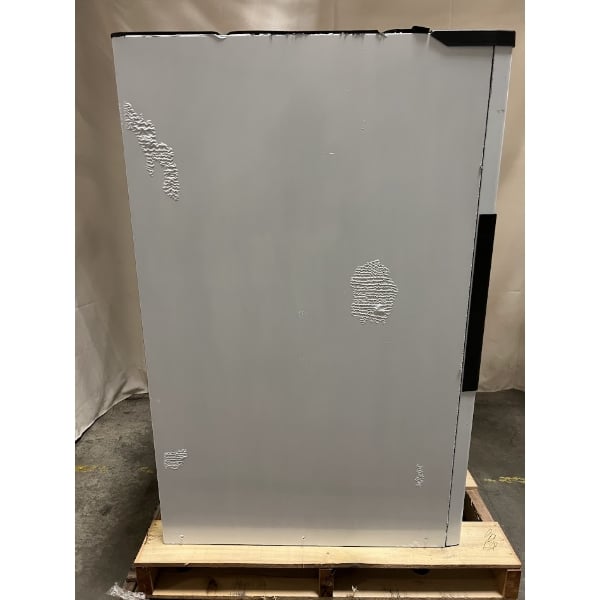

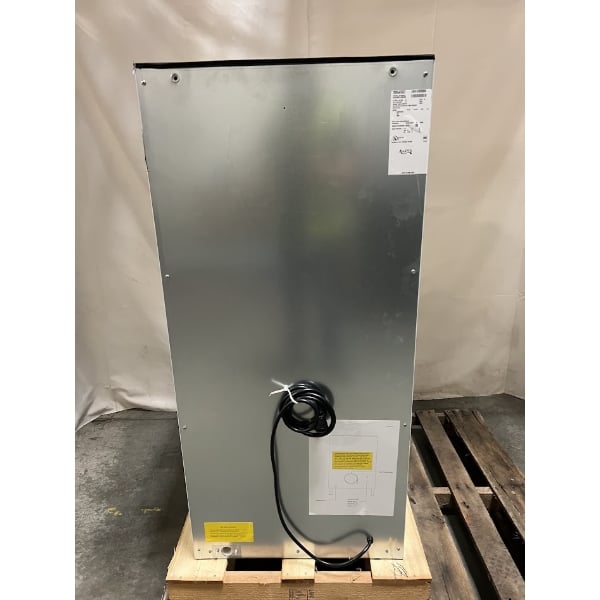

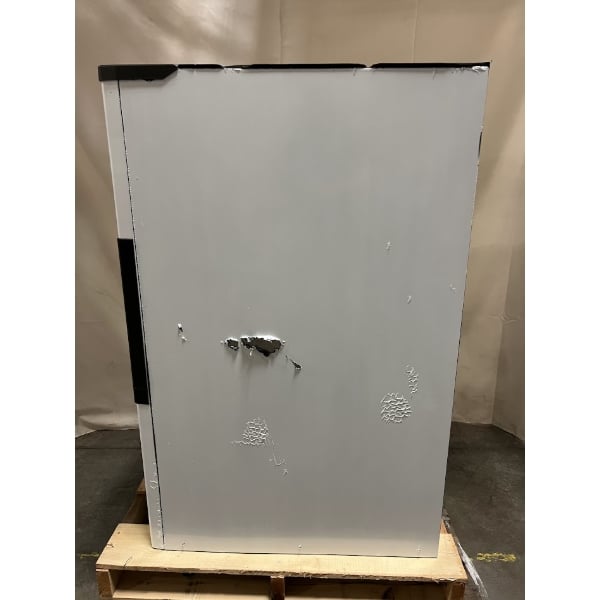

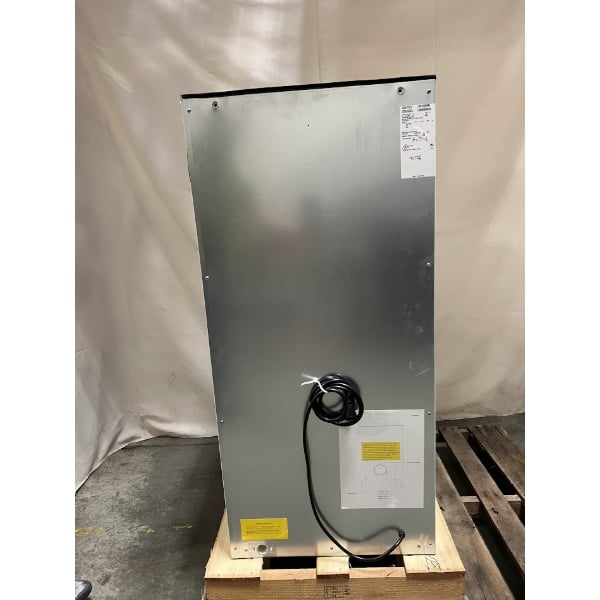

- There is scratching throughout the unit

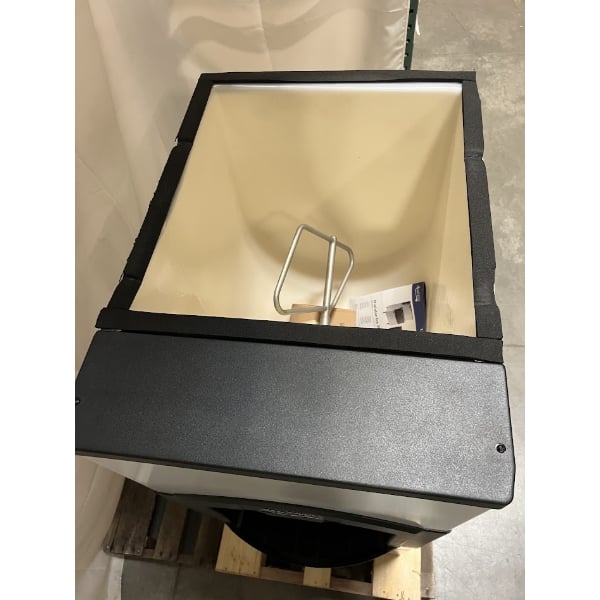

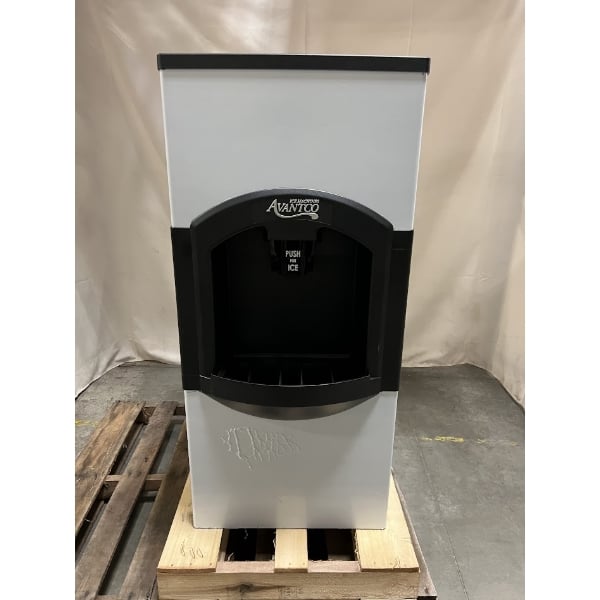

Make sure you've always got plenty of fresh ice on hand and easily accessible with the 22" air cooled modular half cube ice machine with dispenser! Capable of producing up to 350 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand at your hotel, bar, or cafe. An included ice dispenser holds up to 120 lb. of ice and features a deep sink to accommodate hotel ice buckets of almost any size.
For ease of maintenance, a built-in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in. Plus, the ice dispenser has a 3/4 FTP drain fitting.

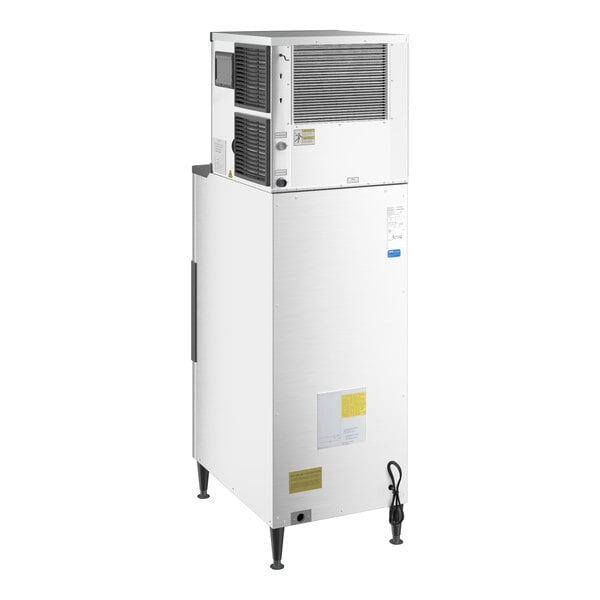

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is built to last in the busiest commercial environments. A nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance. With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it. This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible. Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. This unit requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 22"
Depth: 33 1/2"
Height: 69 5/8"
Ice Machine Dimensions:
Width: 22"
Depth: 24 3/8"
Height: 22 3/8"
Ice Dispenser Dimensions:
Width: 22"
Depth: 33 1/2"
Height: 47 1/4"
Please check the Compatibility resource for information on items that work with this product.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
Certified by NSF
This item is certified by NSF to applicable standards.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
Need Parts & Accessories?
Shop replacement parts and accessories for this item today!
