Product Overview
- Provides 100% usable interior storage space with Capsule Pak refrigeration system
- Self-contained Capsule Pak installs easily and uses R-290 refrigerant
- Aluminum floor seals the structure and adds a durable surface for storage
- Self-closing door has 26" opening and secures easily to the walk-in
- Durable coated 26 gauge corrosion-resistant and embossed galvanized steel panels
Other Products from this Line
$20,935.00/Each
$22,222.00/Each
$23,925.00/Each
$12,547.00/Each
$12,608.00/Each
$14,952.00/Each
$17,705.00/Each
$12,842.00/Each
$13,912.00/Each
$18,020.00/Each
$19,177.00/Each
$20,990.00/Each
$16,868.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 1205 lb.
- Width
- 48 Inches
- Depth
- 96 Inches
- Height
- 91 Inches
- Door Width
- 26 Inches
- Nominal Width
- 4 Feet
- Nominal Depth
- 8 Feet
- Height (with refrigeration unit)
- 106 Inches
- Nominal Height
- 8 Feet
- Refrigeration Unit Height
- 15 Inches
- Amps
- 13.13 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Compressor Location
- Top Mounted
- Door Style
- Swing
- Door Type
- Solid
- Features
- Made in America NSF Listed Self-Closing Doors
- Floor
- With Floor
- Horsepower
- 3/4 HP
- Plug Type
- NEMA 6-15P
- Refrigerant Type
- R-290
- Refrigeration Type
- Self-Contained
- Temperature Range
- -10 - -8 Degrees F
- Usage
- Indoor
Master-Bilt QSF7748-C Details

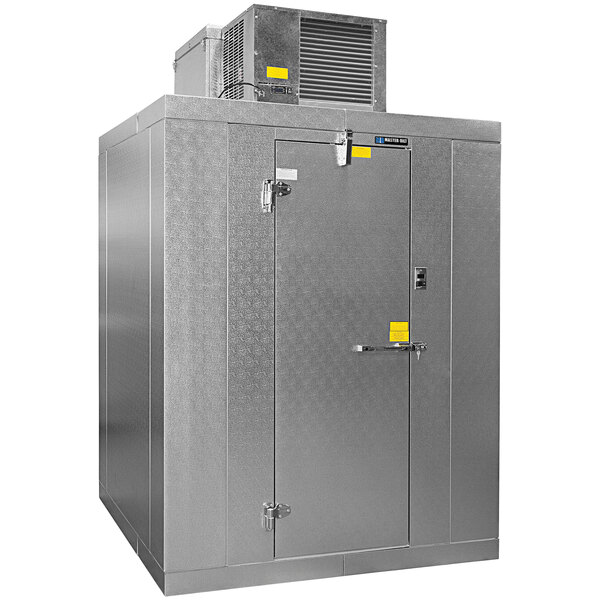

Bring versatility and superior storage with this easy-to-assemble Master-Bilt QSF7748-C quick ship 4' x 8' x 7' 7" indoor walk-in freezer with top-mounted refrigeration. This walk-in freezer uses an innovative, self-contained, top-mounted Capsule Pak refrigeration system, providing 100% usable interior storage space and utilizing a flush coil design to keep all cooling components outside the freezer. The Capsule Pak installs easily and uses R-290 refrigerant. Plus, the 115V freezer unit has a temperature range of -10 to -8 degrees Fahrenheit.
With panels made of coated 26 gauge corrosion-resistant and embossed galvanized steel, this Master-Bilt unit is durable for long-lasting use. The panels are also insulated with 4" thick EPA-compliant polyurethane to maintain consistent temperatures. An aluminum floor seals the structure and provides a durable surface for storage. This unit includes an electric vaporizer unit to evaporate condensed water inside the walk-in, eliminating the need for a drain line.
This unit has a secure, self-closing door with an NL2400 adjustable and spring-loaded door hinges and has a 26" opening. For increased safety and to protect your supplies, this unit comes with a deadbolt locking handle with an independent padlock to secure the door, and an inside safety release promotes increased safety for your staff. An externally-mounted digital thermometer allows you to easily verify that the walk-in is maintaining the correct temperature, while a vapor-proof light provides excellent interior visibility for added convenience!
Overall Dimensions:
Width: 48"
Depth: 96"
Height (without refrigeration unit): 91"
Height (with refrigeration unit): 106"
Capsule Pak Height: 15"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:Customer questions about this product
How can I determine the size of this product's interior?
My city or state has special requirements for walk-in refrigeration. What do I need to know before purchasing this item?
If you have any questions, please contact Special Orders prior to making your purchase.
Where will the door be located on my walk-in unit?
If you are interested in one of the alternate door configurations, first choose whether you want a left or right door hinge and then check the dropdowns at the top of the page - additional door configurations will be shown there, if any are available, and you can then select the right door configuration code for your application, using the codes in the diagram as a guide. If you don't see an "Optional - Alternate Floor Plans" dropdown, no alternate configurations are available for this particular unit.
Be aware that on units with wall-mounted refrigeration, selecting an alternate door configuration will move the refrigeration unit to the wall opposite the door, for proper airflow.
If you do not choose another floor plan, you will be shipped the standard configuration.
Can this item fit through a standard height 80" doorway ?
When I order this product, can I request liftgate delivery?
Made in America
This item was made in the United States of America.
CSA, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for electrical, plumbing, and/or mechanical products in Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
6-15P
This unit comes with a NEMA 6-15P plug.
