$3,726.00/Each

for details

Ships free with Plus

Other Available Ice Types:

  • Includes Manitowoc D420 ice storage bin with a capacity of 383 lb.
  • Produces up to 460 lb. of ice per day
  • easyTouch display makes operation as simple as possible
  • Features DuraTech technology for superior corrosion resistance
  • 2019 Kitchen Innovations Award recipient for progressively boosting efficiency and productivity
Shipping:

You May Also Need

Manitowoc Indigo NXT: Time Program

Manitowoc Indigo NXT: Time Program

Hello! Today we're going to talk about how to program this Indigo NXT touch display to take advantage of the time programs. And the way we do this is press the 'menu' button on the left of the display. And then we're going to press 'energy', and then we're going to press 'ice'. And then we can press 'time program'. The reason we would do this is because some regions have different prices for energy at different times of the day. For example, one the west coast, the price of energy is increased from 4 to 7 pm. So as an example, we're going to program this ice machine to stay off from 4 to 7 pm so that it's not running at that peak period when the energy price increases. Of course you could do this another way as well, if it was in a region where energy costs less at a certain time of day, you could program the machine to stay on at that time of day and off at others. So we have it programmed between 4 and 7 pm to switch off. So off at 4 pm and on at 7 pm. And we're going to go back. So we just have this set for Monday, but you can go through each day and program each day the same way for the machine. So if we go back to the main screen by pressing the left arrow or the home button, you can see that it is now in a program mode and making ice, and there is an 'ice now' symbol down there on the bottom right of the screen. So if it was between 4 and 7 pm right now and the ice machine was off and you wanted ice, you could just press the 'ice now' button at that time period.

Copy and paste the embed code above.

Programming your Indigo NXT ice machine to operate at certain time and not at others helps save energy consumption and costs. This short tutorial walks you through the programming process step-by-step.

Manitowoc Indigo NXT: Setup Wizard

Manitowoc Indigo NXT: Setup Wizard

So today we're looking into setting up the new Indigo NXT ice machine. We're going to plug it in. The first thing the screen is going to do is to check for an update to see if there's any accessories plugged into it. Then, after a brief pause, the screen is going to light up blue, and it's going to take you into a set-up wizard. The set-up wizard on this machine - the first thing it's going to do is ask you to select the language in your local region. You can change the language by pressing the up and down arrows on the screen. But as we are setting up here in the United States, we are going to select English and press the right arrow button. The set-up wizard is going to guide you through a step-by-step process of setting this ice machine up. So, we're going to go ahead and initiate that set-up by pressing the 'start wizard'. The first thing it's going to do is to check the model number and make sure it is valid, and then it is going to ask you to set up a date and time configuration. The first thing is the date configuration, so we can select month/day/year or day/month/year. We can also select 24 hour time clock or 12 hour time clock. We're going to select month/day/year and 12 hour time clock at this point. And press the right arrow button. Then we're going to set up the local time of day in our local region by pressing the up and down arrow buttons around the time to our local time. And then we're going to press the right arrow button on the unit. We're going to set up the date as well. This is an important feature so that when we do set up events, we make sure we have the right time and date for our recorded events in the memory of the unit. So we'll set up the dates by pressing the up and down, and then we'll press the right arrow key on the bottom of the screen. The next thing it's going to do is to auto-detect any accessories that are plugged into the ice machine. So, this ice machine has no accessories plugged into it currently, so the accessories have a little red X on them. Either they're not installed on the machine, or they've been installed incorrectly on the machine. But it's telling you there under accessories installed. So, we're going to press the right arrow button. Next option available on this feature of this machine is that you can import data to it, setting data if you already have it by pressing ''import to ice machine'. And you can use a USB stick to import that data. But we're going to set it up manually on a standard button. So we're going to press the right arrow button, and it's going to ask us for the units. We can set this as metric or standard on this unit. We're going to set ours as standard right now for the United States and then we're going to press the right arrow button. Brightness is another feature that can be adjusted, and this is stand-by screen brightness. So when the unit goes into a power save mode, you can set the brightness of the screen for use by pressing the right and left arrow buttons. And then we're going to press the right arrow button at the bottom. Now, this has a few program mode features that we're going to look at. One of them is 'continuous mode'. We're going to take a look at 'time program'. So, if a unit doesn't have to run on a certain day of the week, you can set it to turn off. So let's just say we don't open on business on Mondays, and we'd like the machine the stay off on Mondays, we can just press 'off' for 24 hours on Monday, or we could set the clock to stay off too on certain times. But we're going to set it back to continuous mode on our unit so that it runs 24 hours every day of the week until it goes off on full bin. So, we're going to set ours on 'continuous mode'. 'Weight program' is another option. You can set it by weight, if you'd like, so you can tell it to make a certain weight per day on each day of those units. We're just going to keep ours on a 'continuous mode' for now, on our ice machine. And then we're going to press the right arrow button. Cleaning reminders are available. You can set a cleaning reminder to clean your ice machine on a certain monthly period. We're going to set ours to clean every 6 months to remind us. And sanitizing, too. We're going to set the sanitizing reminder on for every 6 months, and we're going to press the right arrow key. Air filter on the back of our air-cooled ice machine. We're going to to select a reminder to tell us when to clean our air filter, and we're going to set up the machine as well to tell us to clean the air filter every 1 month on our ice machine. And then we'll press the right arrow button. Yes! We do have a water filter installed on our ice machine, so we're going to press the 'yes' button. And we have an Arctic Pure water filter, so we're going to press 'yes' on that, too. Specifically we have a 10,000 on this system, so we'll press the 'AR 10,000'. And then it tells us that our automatic reminder to replace the filter is set up. So what it actually does is calculate the water that the machine uses, and it will tell you based on that calculation when you should replace the water filter. There is an option if you're not using a Manitowoc water filter that it can do it by just time, as well, and tell you to replace the filter at a certain time that you can set. And then we're going to press the right arrow button. We're going to use factory defaults on our machine, but there are other options of using reverse osmosis, which has the benefit of using less water in your ice machine to make ice. There's also the option to use a little bit more water in your ice machine to make even clearer ice than you normally would. And we're going to set ours back to the normal use factory default water usage on our ice machine and press the right arrow button. And then it tells us that our set-up is complete on this ice machine. And it's going to ask us to switch the ice machine on. So we're going to press the right arrow button. Another feature of this ice machine is once we open the front door, there are 3 buttons behind the front panel: a power button, a lock button, and a clean button. The lock button is used if you're having the ice machine at the front-of-house or in a public area like a hotel lobby, and you don't want people to touch the touchscreen and change the settings. You can put the lock on and the touchscreen will become disabled. The padlock on the top right indicates that it's in lock mode. And we're going to turn the lock back off and press the power button on our ice machine for it to make ice. And the display will show it making ice. The other button on the top right is the clean button to initiate a clean cycle, which we're not going to do right now, so we'll close the front door up on this machine. And you'll see that it says 'making ice' on it.

Copy and paste the embed code above.

To make set-up as easy as possible on the Manitowoc Indigo NXT ice machine, a set-up wizard walks you through the process step-by-step. For a tutorial on how to do this, check out this video.

Manitowoc Indigo NXT: Overview

Manitowoc Indigo NXT: Overview

No Video Transcript entered.

Copy and paste the embed code above.

Get an up close and personal look at the Indigo NXT and it's next level approach to ice making!

Manitowoc Indigo NXT: Energy Efficiency

Manitowoc Indigo NXT: Energy Efficiency

Indigo NXT is the next level of energy efficiency. Not only is it the most efficient cube ice machine on the market, but it boasts 48% less global warming potential (GWP) than previous models. It's AHRI certified and exceeds even the stringent DOE 2018 energy standards. Plus, it features programmable ice scheduling, fitting around your schedule to best suit your business needs. The Indigo NXT is up to 43% more energy efficient that the previous standard, with the Energy Star 3.0 models being 8 - 20% more energy efficient. Condenser water usage was even reduced by an average of 23% to help save on water costs and overall water consumption; energy and water efficiencies could save up to an impressive $2,900 over the life of the unit. Sleek, powerful, and energy efficient, the Manitowoc Indigo NXT is the new generation of eco-friendly ice machines.

Copy and paste the embed code above.

For quality, convenience, and unbeatable energy efficiency, the Manitowoc Indigo NXT ice machine is the logical choice. Boasting multiple energy efficiency ratings, including Energy Star 3.0, this unit can help save your business thousands of dollars in utilities. Find out more here.

Manitowoc Indigo NXT: Menu

Manitowoc Indigo NXT: Menu

We're going to look at the Indigo NXT, some of the buttons on the front of the display of the touch screen. There are 3 main buttons on the bottom of the touchscreen. First one is a menu button on the left. You can press that menu button, and it'll take you to energy settings where you can set different energy settings. If you press the back arrow, we can go back. It'll take you into service, so if you need to see things about service, you can get a lot of information. Press the back button. Settings - if you need to change any of the settings on this ice machine. The setting menu will get you into changing those set-up options. And then reset defaults. If you want to reset this ice machine back to its factory default, this menu will take you in there. So if we go back to the home screen, the middle button gives you information on the ice machine. This gives you very important model and serial number information, so if you're looking for warranty information, this is where you'd find your model and serial number. It also tells you how much ice this ice machine produces, the installation date, and the manufacturing date. It will also gives you a countdown on the warranty days you have left on this ice machine. If you go back to the home screen, the contact information - the little telephone icon right there - the default is you can scan a QR code on our smart phone and it will tell you where the local service company is for this ice machine on this section. Also, you can program in the service company's information, so if you are the service company, you can program your own information in this screen so that instead of showing the QR code, it will show your name and contact information for this ice machine. So going back to the home screen, this ice machine has 3 buttons down at the bottom and the status in the middle of the time and date on top. That's an overview of that touch screen and the Indigo NXT ice machine by Manitowoc. Also on the Indigo NXT easyTouch display is 3 buttons located behind the front panel, which are the power button, the screen lock button, and the clean button.

Copy and paste the embed code above.

Easily navigate the Manitowoc Indigo NXT menu with this step-by-step tutorial. Intuitive by design, the touch screen menu provides everything from the time and date to the serial number and local service company.

Specs
Width 22 Inches
Depth 24 1/2 - 34 Inches
Height 71 1/2 Inches
Phase 1
Voltage 115
24 Hour Ice Yield 300 to 500 Pounds

460 Pounds
Condenser Type Air Cooled
Ice Type Half Size Cubes
Installation Type Modular
NSF Listed Yes
Power Usage 5.4 kWh per 100 lbs.
Type Ice Machines with Bins

Customer questions about this product

Why is a water filter automatically added to my cart with this item?
The use of poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality and a compatible water filter will be included when you add this piece of equipment to your cart. You may remove the filter from the cart prior to purchase.
Will this ice machine meet my business’s ice demand?
Every business type has unique demands for ice. If you have any questions about how much ice you’ll need please reference our Types of Ice Machines buying guide.
Ask your own question!

Details

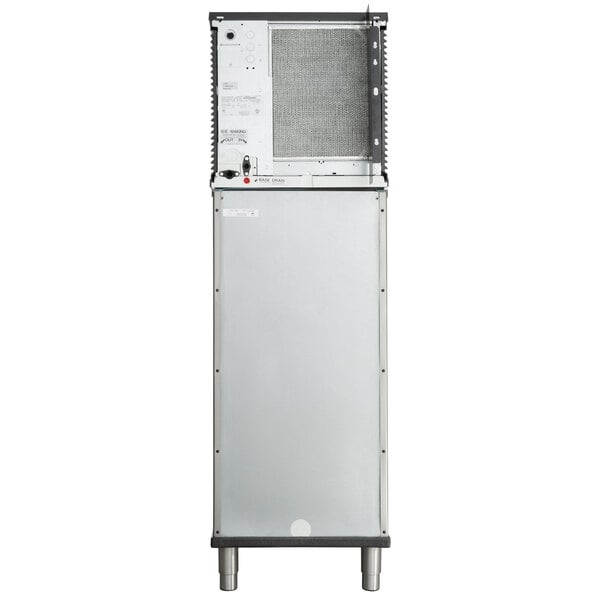

As part of the Manitowoc Indigo NXT series, this 22" wide IYT0420A air cooled ice machine features state-of-the-art intelligent diagnostics, providing 24 hour preventative maintenance and diagnostic feedback for trouble-free operation. This impressive unit can make up to 460 lb. of half dice ice cubes per day and, when compared to previous Indigo models, lowers energy consumption by an average of 41%, potable water usage by 21%, and condenser water usage by 34%!

A customizable ice making schedule allows for fluctuations in daily levels of production. Simply program the machine to produce ice by On/Off Time or Ice Volume. Its easyTouch display communicates operating statuses to your staff, as well as cleaning reminders, and asset information through an eye-catching blue illuminated display. This innovative technology allows you to easily improve energy management, set proper ice production levels, streamline cleaning processes, ease food safety concerns, maintain ice quality, and quickly receive up-to-date service information. With a unique patented technology, the acoustical ice sensing probe detects when the harvest is ready so the machine continues to run smoothly in challenging water conditions. Plus, this unit's space-saving design includes a DuraTech exterior for superior corrosion resistance. Featuring a hard, clear-coat layer on top of an aluminum alloy, this surface is easy to wipe clean and provides protection against fingerprints and scratches.

For maximum safety in sanitation, all Manitowoc Indigo NXT ice machines feature an easy-to-clean foodzone. A hinged front door swings out for easy access to the removable water-trough, distribution tube, curtain, and sensing probes for fast, efficient cleaning. Select components are made with Alpha San antimicrobial material for superior sanitation. This unit requires a 115V electrical connection for operation. The ice machine carries CE, UL, NSF, and ARI/AHRI certifications.

This ice machine also comes with a bin included so you don't need to worry about purchasing one separately. It features an insulated door that's angled 53 degrees for ergonomic scooping, as well as built-in side grips for one-handed use from multiple access points. This allows the worker to stand and scoop ice comfortably from more than one location in front of the bin. It also allows them to grasp the door while scooping for leverage and support. To ensure that the door remains open during the scooping process, the door is outfitted with a cammed self-latch to prevent premature closing.

An NSF-approved ice scoop with built-in knuckle and thumb guards is included with the bin to help prevent cross-contamination. It boasts a 5.3 lb. ice capacity, ensuring that retrieval is as efficient as possible.

This ice storage bin is built with exterior Duratech metal that resists corrosion and smudging better than stainless steel for brilliant luster and long-lasting reliability. Plus, the bin liner is blue polyurethane, which enhances the clearness of ice. The bin carries NSF and ARI/AHRI certifications.

Overall Dimensions:
Height: 71 1/2"

Ice Machine Dimensions:
Left to Right: 22"
Front to Back: 24 1/2"
Height: 21 1/2"

Bin Dimensions:
Left to Right: 22"
Front to Back: 34"
Height: 50"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents: Prop 65 Warning

  • Kitchen Innovations Award Winner

    Kitchen Innovations Award Winner

    This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.

  • Hardwired

    Hardwired

    This product must be hardwired; it does not plug into a standard wall outlet.

  • UL US & Canada

    UL US & Canada

    This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL) for use in the United States of America and Canada.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • CE Listed

    CE Listed

    This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.

  • 3/8

    3/8" Water Connection

    This unit comes with a 3/8" water connection.

Resources and Downloads

Specsheet Specsheet Spec Sheet Specsheet Manual Manual Manitowoc Ice Warranty Warranty Brochure Brochure

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
