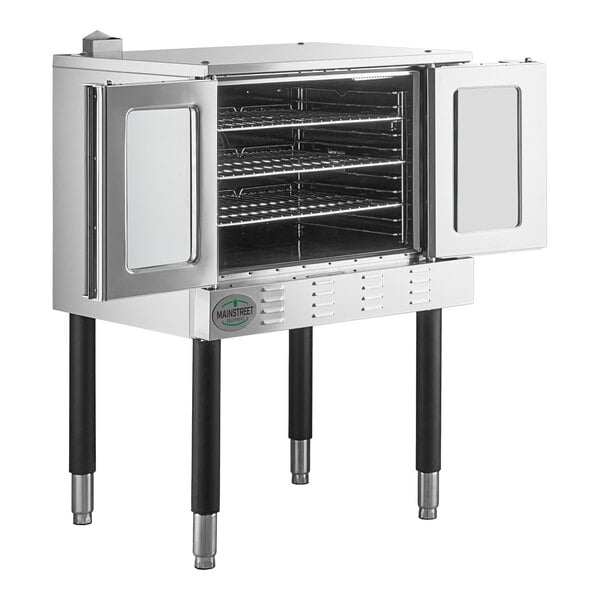

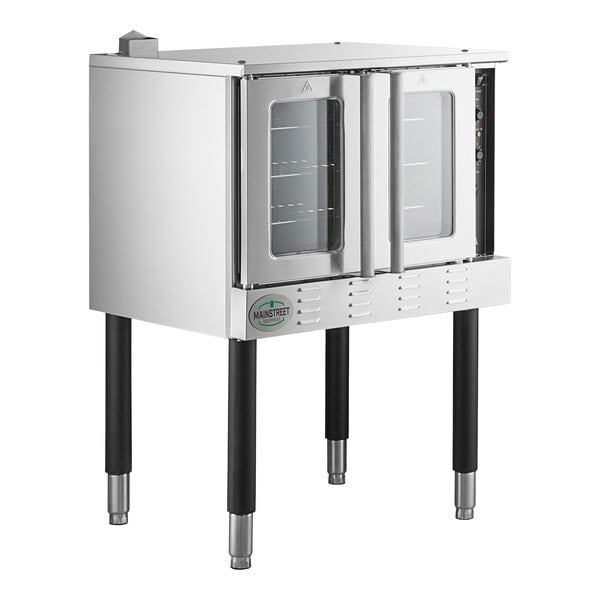

MainStreet Equipment EC1-D Single Deck Electric Full Size Convection Oven with Legs - 240V, 1 / 3 Phase, 11.9 kW
Item number 541fec1d
Quick Shipping
Usually ships in 1 business day
Product Overview
- Full size cavity houses 3 adjustable wire racks
- Temperature range from 150 to 500 degrees Fahrenheit
- Independent glass doors with stainless steel exterior and interior
- Features 60-minute timer and interior light controlled by rocker switch
- Field convertible from 1 phase to 3 phase
UPC Code:400017650203
Works With
View All Items- Quantity
- 1/Each
- Shipping Weight
- 514.5 lb.
- Width
- 38 1/8 Inches
- Depth
- 41 1/2 Inches
- Height
- 54 1/8 Inches
- Interior Width
- 29 Inches
- Interior Depth
- 22 1/4 Inches
- Interior Height
- 20 Inches
- Amps
- 30 - 50 Amps
- Phase
- 1 - 3 Phase
- Voltage
- 240 Volts
- Wattage
- 11.9 Kilowatts
- Control Type
- Dial
- Door Type
- Glass
- Features
- Adjustable Feet Field-Convertible (Electrical)
- Hinge Location
- Left Right
- Installation Type
- Freestanding
- Material
- Stainless Steel
- Number of Decks
- Single
- Number of Doors
- 2 Doors
- Number of Racks
- 3 Racks
- Oven Interior Style
- Standard Depth
- Plug Type
- Hardwire
- Power Type
- Electric
- Size
- Full Size
- Temperature Range
- 150 - 500 Degrees F
- Type
- Convection Ovens
Details
For an invaluable asset to any commercial kitchen, use this MainStreet Equipment EC1-D single deck electric full size convection oven for virtually all your cooking and baking applications. This unit features 4 adjustable legs and offers a full size cavity that houses 3 adjustable wire racks. These racks rest on the 11 sets of slides along the interior side walls, so you can benefit from a variety of rack configurations to best accommodate your trays or full size food pans.

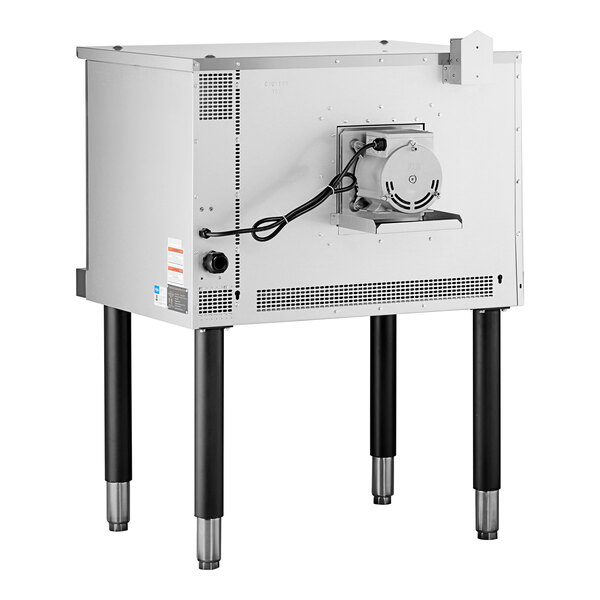

Cooking convenience is delivered by an assortment of special features that help make your job easier. For instance, a 60-minute timer helps you keep track of foods' progress while you multitask in the prep or storage areas. You can also switch the built-in convection fan between 2 modes, cool and cook, and 2 speeds, high and low. This gives you control over the oven's functioning so that it's always operating in the best manner for your tried-and-true or experimental recipes. Reaching temperatures from 150 to 500 degrees Fahrenheit, this oven operates with an electric automatic thermostat for reliable precision.
The 2 independent glass doors with steel handles allow for visibility while closed, giving you the ability to check on dishes without releasing hot air and reducing the chamber temperature. When the oven doors are open while it's on, the burners and fan will shut off until the doors are closed. Both the exterior and interior of the oven are built with stainless steel to offer maximum durability, while the floor is made of porcelain. To visually monitor your dishes as they cook or bake, just flip on the light controlled on the exterior control panel. This unit requires a 240V, 1 phase electrical connection for operation, but the unit can be field-converted to 3 phase.
Overall Dimensions:
Width: 38 1/8"
Depth: 41 1/2"
Height: 54 1/8"
Interior Dimensions:
Width: 29"
Depth: 22 1/4"
Height: 20"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
