Quantity Discounts


Ships free with Plus
Buy 3 - 9 $150.26/Each
Buy 1 - 2 $152.99/Each

  • Double-sided whiteboard
  • Great for displaying daily specials, classroom presentations, meeting materials, and more

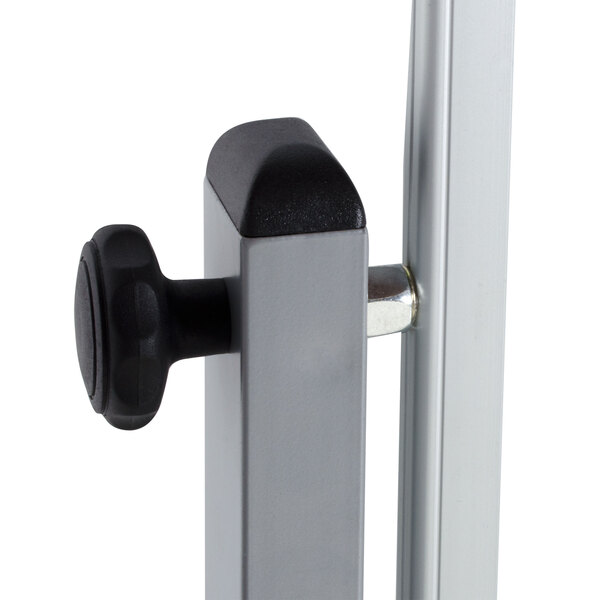

  • Locking knob mechanism allows board to be flipped

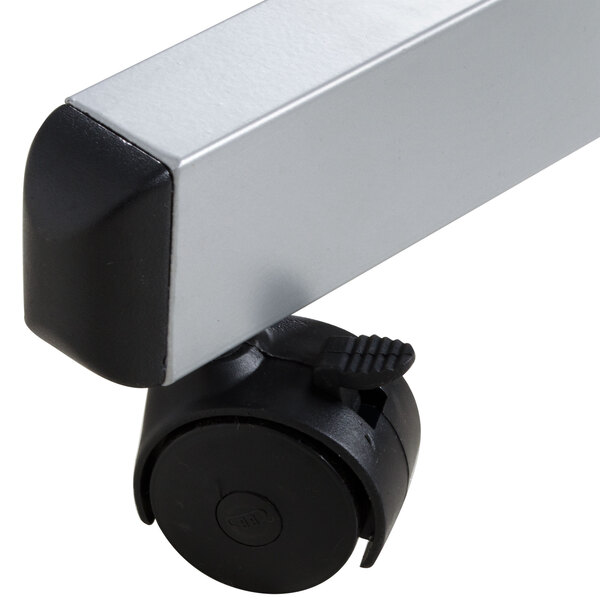

  • 4 casters, 2 with brakes, for added mobility
  • Lightweight aluminum frame
  • 35 3/8" x 47 1/4" writing area
  • Magnetic for hanging additional visual aids

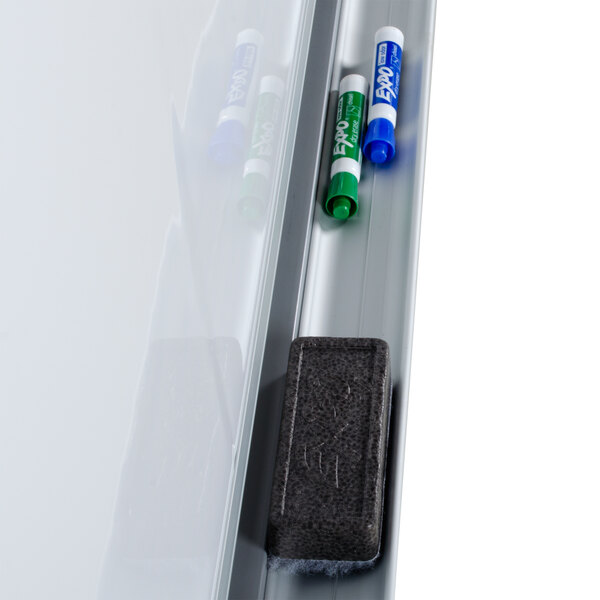

  • Includes a marker/eraser tray

UPC Code:


Usually Ships in 3 Business Days

You May Also Need

"You May Also Need" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

Luxor Mobile Whiteboard Assembly

Luxor Mobile Whiteboard Assembly

Today we’re gonna learn how to assemble a mobile whiteboard by Luxor. Here you see depicted the various hardware that will be used. Position one of the long, vertical supports on a table. Take the short, horizontal support and line it up by placing the long bolt with washer through. After you’ve sufficiently tightened the bolts by hand, use the wrench that was included in the hardware pack to complete the assembly. Next, insert a small washer on the end of the caster stem. Take the caster with washer and thread it on to the bottom of the short support. Tighten the nut by hand, turning the nut clockwise while holding the caster still. Once you’ve sufficiently tightened the caster, again use the wrench included with your hardware pack to secure the nut tightly against the bottom. Once you’ve finished assembling both sides, take the lower, bottom support and position it next to one of the fully assembled supports. Insert the bolt through the hole on the vertical support and line up the bottom support by passing the bolt through. Once we have the parts lined up, take one of the large washers and locking nut, and secure it in place.

When attaching the nut to the bolt, make sure to put the widest section of the nut against the washer, and the part with the rubber gasket away from the bolt head. Use the same approach to fasten the bolt to the hole at the bottom of the support as well. For use of assembly and to tighten the nuts, it’s recommended to use two wrenches. Use the same approach to fasten the bolts, washers, and nuts to the other side. Depending on the model purchased, you might have to pre-assemble the tray to the center section with the sheet metal screws provided according to the instruction sheet. Next, locate the center section that includes the tray and your spring release and locking ring. Attach the locking ring to the hole that’s been pre-drilled into the underside of the spring release.

Take the center tray with the spring release that’s been attached, and line it up with the middle of the pre-built unit. Line up the holes and again use the short bolt, large washer, and locking nut to begin assembling your component. It’s recommended that you fasten the top section on one side and then the top section on the other before assembling the bolts, washers, and nuts. Depending on the model you purchase, you might have to preassemble the components of the knob according to the instruction sheet. Slide the knob through the hole on the top of the vertical support, line up the slip nut and small washer with the hole of the threaded insert that’s been pre-attached to the side of the whiteboard. Once you’ve lined up the components, turn the knob clockwise, screwing it through the assembly into the side of the whiteboard. Carefully remove the plastic protective cover from the front surface of the whiteboard. Once the whiteboard’s been assembled you can test the spring release by pulling down on the ring. Your mobile whiteboard by Luxor is now ready for use.

Copy and paste the embed code above.

Check out this video to learn how to assemble your mobile whiteboard from Luxor! Add visual appeal to your meetings or presentations with this convenient whiteboard that you can assemble and transport.

Luxor MB3648WW Specs
Width 48 3/8 Inches
Depth 20 1/2 Inches
Height 72 Inches
Board Width 35 3/8 Inches
Board Height 47 1/4 Inches
Board Color White
Casters Yes
Features Magnetic

Marker Ledge
Frame Material Aluminum
Installation Type Mobile
Shape Rectangle
Style Double Sided
Type Marker Boards

Luxor MB3648WW Details

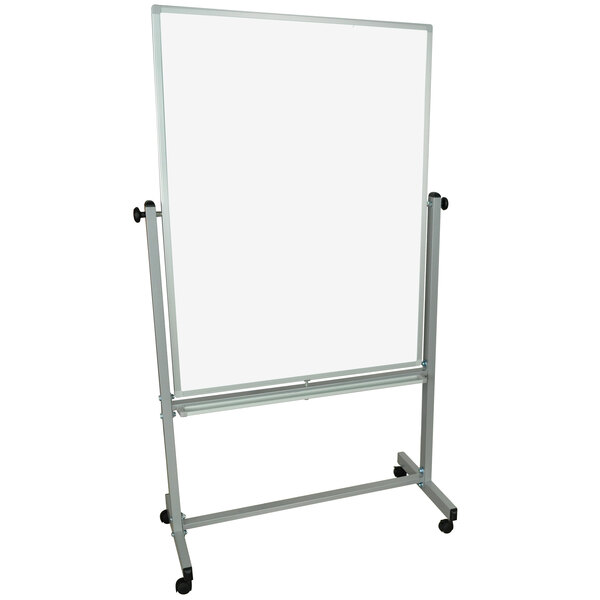

Display daily specials, upcoming events, and more with this Luxor MB3648WW 35 3/8" x 47 1/4" mobile whiteboard! Its convenient, double-sided magnetic surface is made of painted steel and provides a large writing surface that is ideal for hanging presentation materials. Perfect for classrooms and conference rooms, this whiteboard has an attractive chrome-finished aluminum frame with a tray for storing extra markers or erasers when not in use. Thanks to this product's knob adjustment feature and locking brakes, you can easily flip from one side to the other while ensuring that the board stays steady as you write. Plus, its lightweight aluminum frame and 4 casters make it easy to maneuver down hallways, into elevators, and around the room!

Assembly required.

Overall Dimensions:
Width: 48 3/8"
Depth: 20 1/2"
Height: 72"
Board Width: 35 3/8"
Board Height: 47 1/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Resources and Downloads for
Luxor MB3648WW

Specsheet Specsheet Instructions Instructions Warranty Warranty

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Customer Reviews

  • Overall User Rating: Luxor MB3648WW 35 3/8" x 47 1/4" Double-Sided Whiteboard with Aluminum Frame and Stand

    4.0 stars from 1 review


    People Talk About:

    whiteboard wheel sticking quickly nice lubricant fixed erases

    This is a very nice whiteboard. It erases very well and does not chip or warp at all. I only had a minor problem with a wheel sticking, but some lubricant quickly fixed it.
