$13,751.00/Each

This product is no longer available. We've left this page up for reference only.

Usually Ships in 5-6 Months from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Quick-Ship eligible
  • 4" foamed-in-place insulation
  • 1 1/2 hp top-mounted, self-contained refrigeration system
  • Sturdy aluminum floor; 100% usable interior space

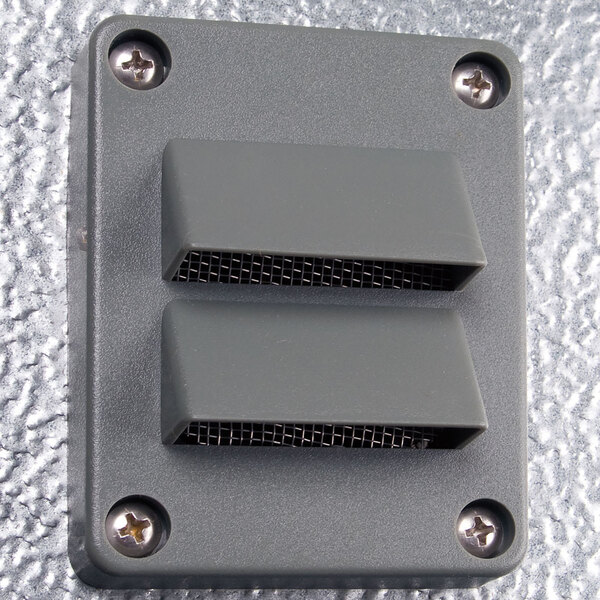

  • Heated air vents eliminate vacuum and pressure buildup
  • 208/230V
  • Ships unassembled for quick and easy installation
UPC Code:400011140786

Kolpak QS7-0610-FT-R Specs

Quantity
1/Each
Shipping Weight
1433 lb.
Width
70 Inches
Depth
116 Inches
Height
90 1/4 Inches
Door Width
26 Inches
Interior Width
62 Inches
Nominal Width
6 Feet
Interior Depth
108 Inches
Nominal Depth
10 Feet
Door Height
78 Inches
Nominal Height
7 1/2 Feet
Refrigeration Unit Height
18 7/8 Inches
Amps
13.5 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
208/230 Volts
Capacity
320 cu. ft.
Compressor Location
Top Mounted
Door Style
Swing
Door Type
Solid
Features
Made in America  NSF Listed
Floor
With Floor
Hinge Location
Right
Horsepower
1 1/2 hp
Plug Type
Hardwire
Refrigerant Type
R-404A
Refrigeration Type
Self-Contained
Temperature Range
-10 Degrees F
Usage
Indoor

Kolpak QS7-0610-FT-R Details

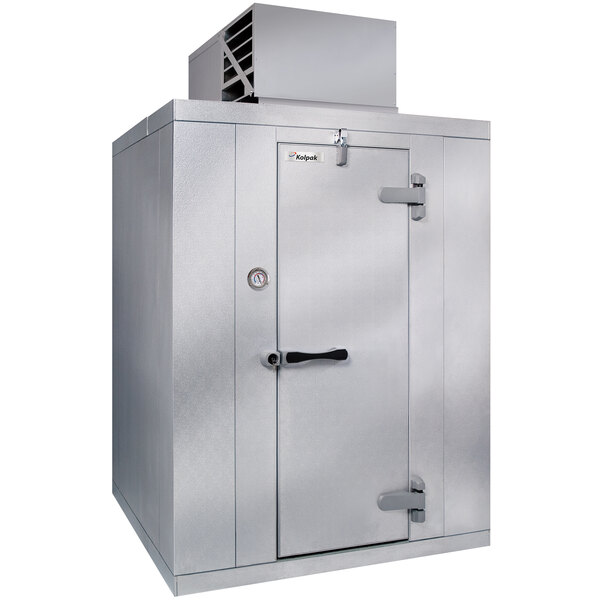

The Kolpak QS7-610-FT indoor walk-in freezer boasts a rugged, high performance design intended for years of trouble-free use. A top-mounted, 1 1/2 hp refrigeration system fits flush to the interior cavity, giving you 100% usable interior space. Its self-contained design with automatic condensate evaporator doesn't require any plumbing, and it installs easily without the need for a refrigeration technician.

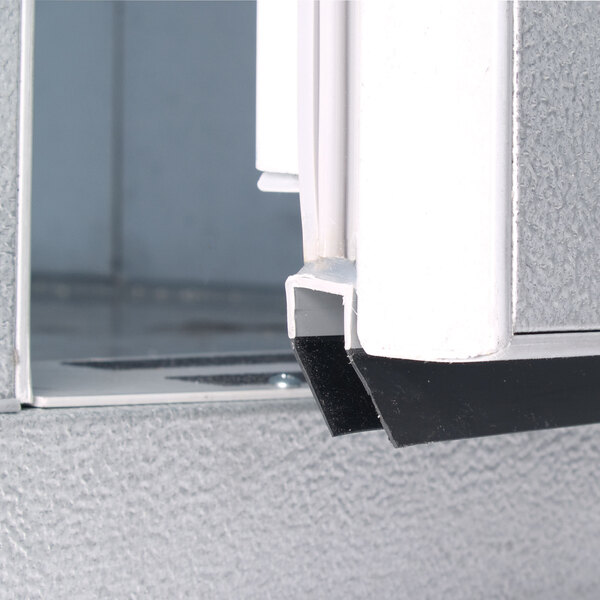

The walk-in's "Posi-Loc" panel fasteners and magnetic gaskets ensure an airtight enclosure for high performance and energy efficiency, and an interior safety release prevents accidental entrapment. This walk-in features a 1/8" smooth aluminum floor that helps insulate the freezer and protect it from condensation forming. This is very important if you do not have a concrete floor at ground level on which to place your freezer.

- Panels made of durable, 26 gauge embossed "Galvalume" steel with 4" polyurethane insulation

- Floor panels can withstand evenly distributed load of 700 lb./sq. ft.

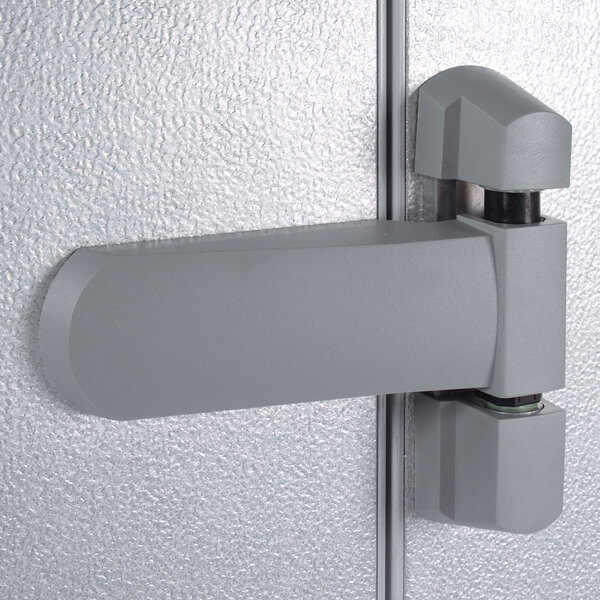

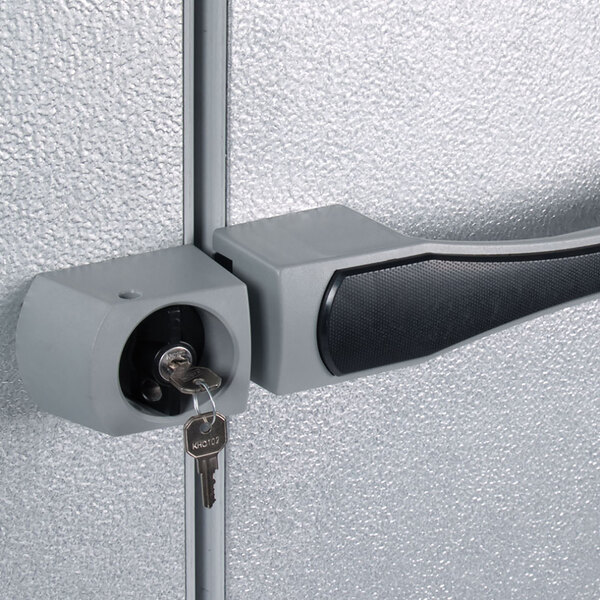

- Adjustable hinges with durable handle; interior safety release prevents accidental entrapment

- 1 1/2 hp self-contained refrigeration system with R-404A refrigerant maintains -10 degrees Fahrenheit; hot gas condensate evaporator

- 208/230V

Overall Dimensions:
Width: 5' 10"
Depth: 9' 8"
Height (Without refrigeration unit): 7' 6 1/4"
Height (With refrigeration unit): 9' 1 1/8"
Door Width: 26"
Door Height: 78"

Interior Dimensions:
Width: 5' 2"
Depth: 9'
Capacity: 320 cu. ft.

Attention CA Residents:
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
