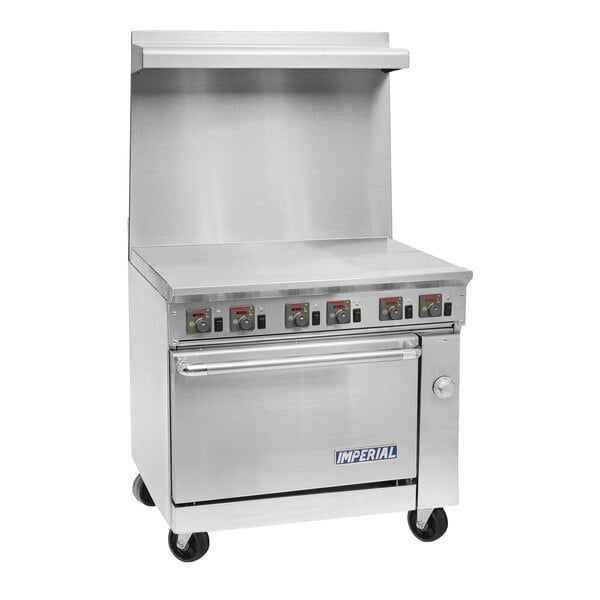

Imperial Range Pro Series IR-6-EW 36" Electric Range with 6 Wafer Plates and 1 Standard Oven - 208V, 3 Phase
Item number 974ir6ewcMFR number IR-6-EW
Usually Ships in 1-2 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Features 6 wafer plate elements that heat evenly and prevent spills from entering the unit
- Unique burner baffle distributes heat evenly throughout the oven cavity
- Standard oven accommodates standard 18" x 26" sheet pans left-to-right and front-to-back
- Porcelainized oven interiors and stainless steel exterior are durable and easy to clean
- Requires a 208V, 3 phase electrical connection for operation
UPC Code:400017932422
- Quantity
- 1/Each
- Shipping Weight
- 558 lb.
- Width
- 36 Inches
- Depth
- 35 7/8 Inches
- Nominal Width
- 36 Inches
- Oven Interior Width
- 26 1/2 Inches
- Oven Interior Depth
- 26 Inches
- Cooking Surface Height
- 36 Inches
- Oven Interior Height
- 14 Inches
- Phase
- 3 Phase
- Voltage
- 208 Volts
- Wattage
- 27.8 Kilowatts
- Amps - Per Line
- 32 - 55 Amps
- Backsplash
- With Backsplash
- Burner Style
- Wafer
- Construction
- Stainless Steel
- Features
- Adjustable Legs Made in America Overshelf
- Installation Type
- Freestanding
- Number of Burners
- 6 Burners
- Number of Ovens
- 1 Oven
- Oven Temperature Range
- 150 - 500 Degrees F
- Plug Type
- Hardwire
- Power Type
- Electric
- Range Base Style
- Standard Oven
Imperial Range IR-6-EW Details

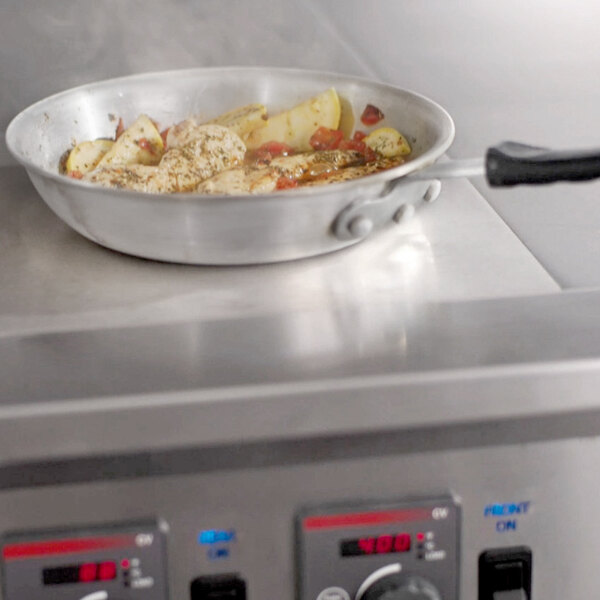

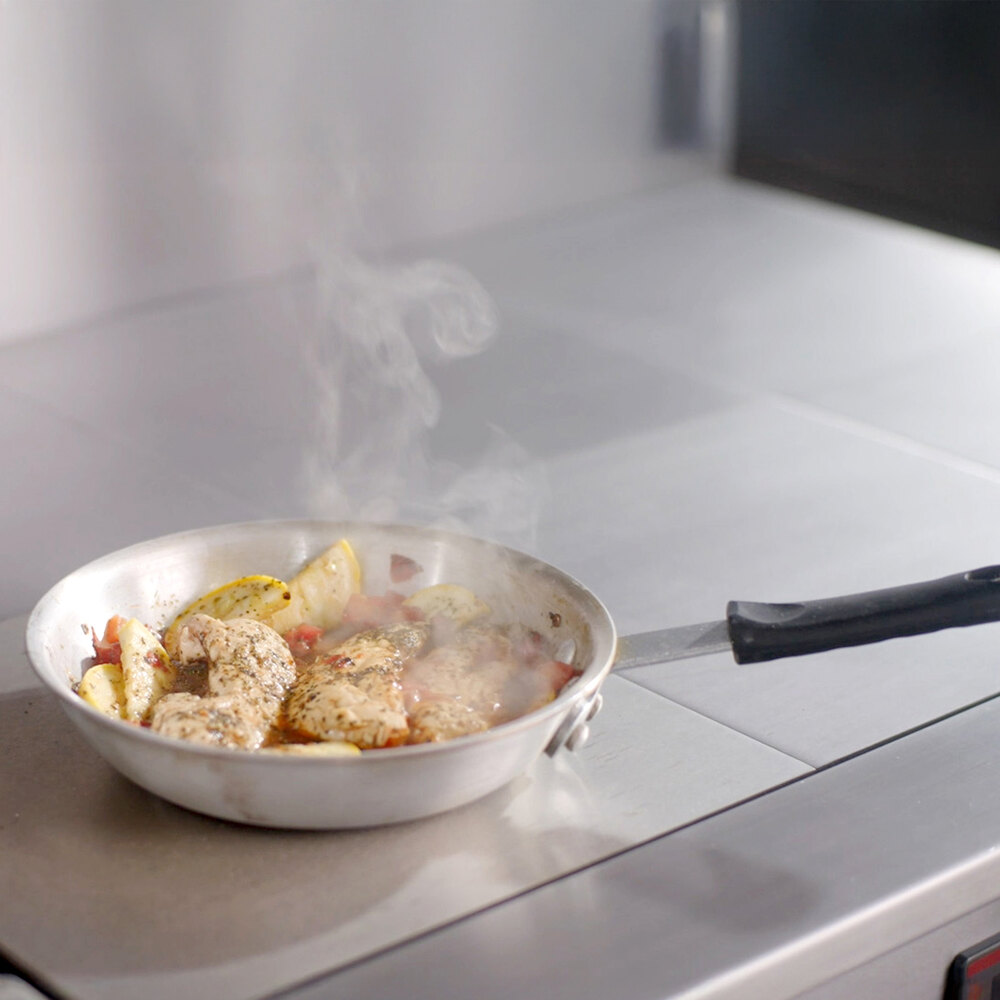

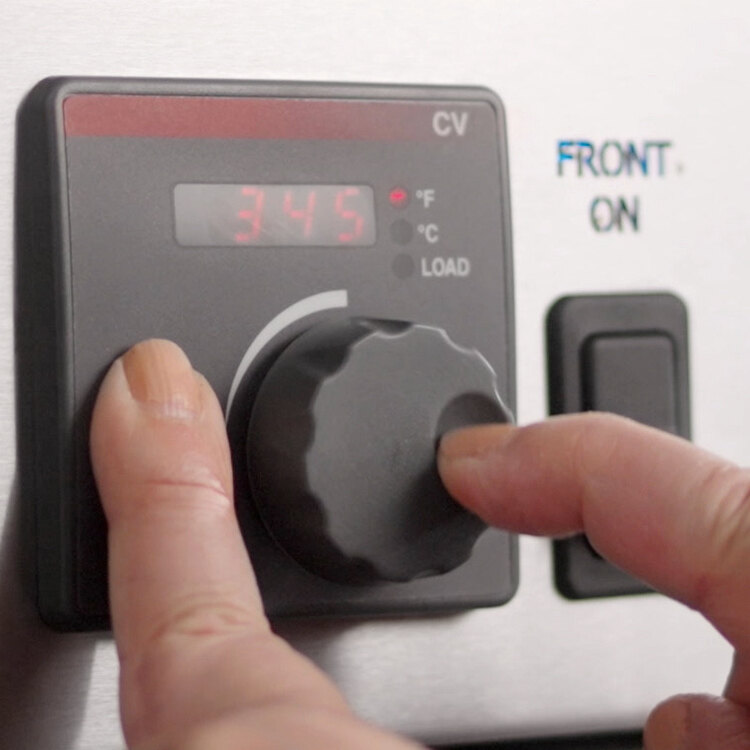

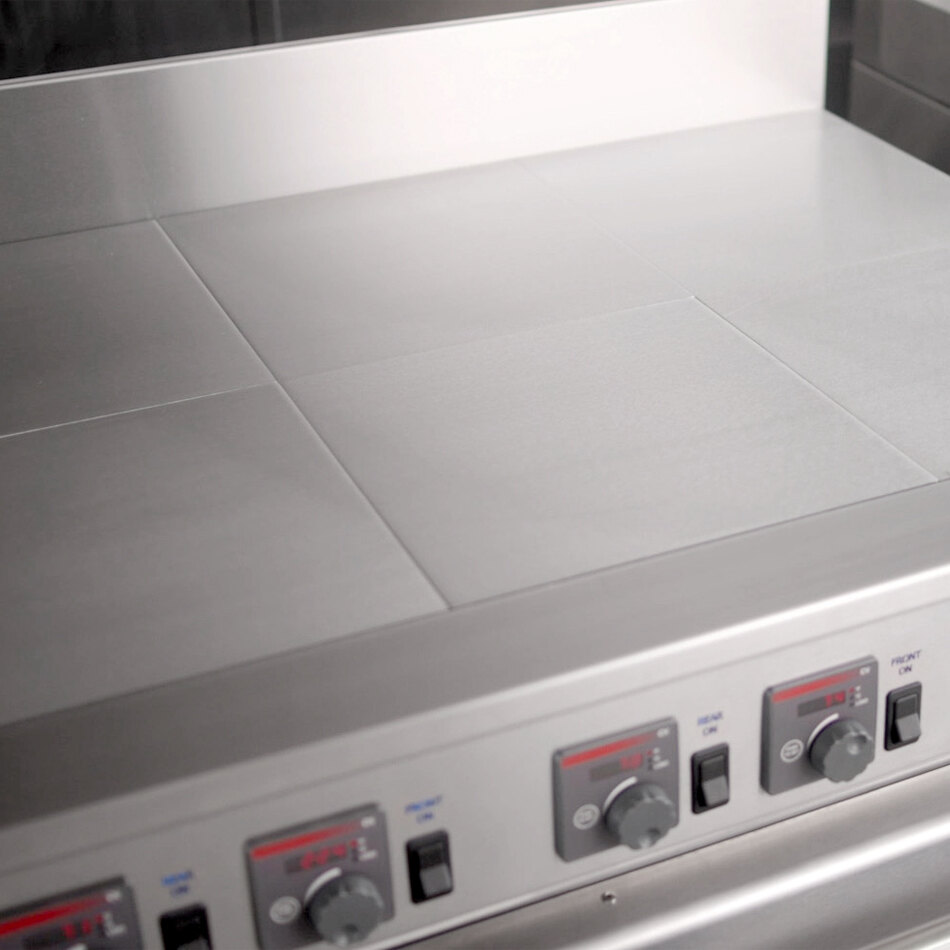

The Imperial Range Pro Series 36" electric range with 6 wafer plates and 1 standard oven is designed to be a versatile and efficient addition to your establishment! The steel construction provides the unit with excellent heat retention and quick recovery. With 6 solid wafer plates, this unit allows you to cook at up to 650 degrees Fahrenheit, heating food up to 50% faster. Each 3.75 kW wafer plate heats quickly and evenly and has a flat surface that makes it much easier to clean than traditional ranges with coil-style burners. Plus, the 12" x 12" wafer plates in the front add versatility, and the wider 12" x 13" wafer plates in the rear allow for maximum pan contact. The plates are operated by thermostatic controls, which offer versatility when cooking various products.

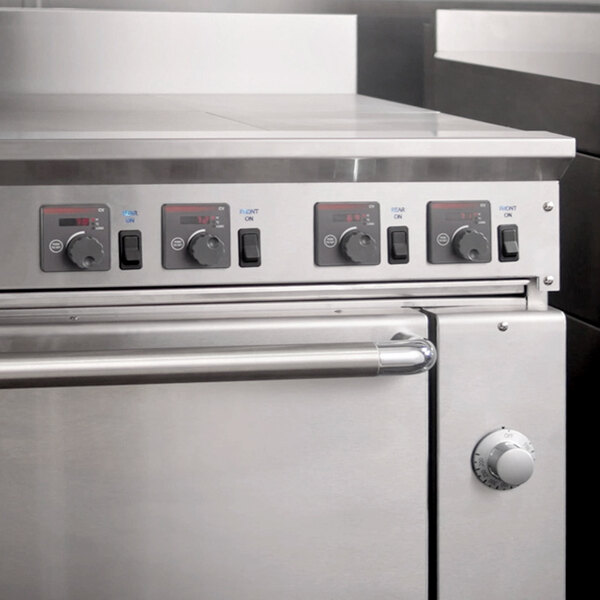

This unit also features 1 standard, 26 1/2" wide oven with 1 chrome oven rack for your low-volume baking and warming needs. The ovens have a 5.3 kW output with an adjustable temperature range of 150-500 degrees Fahrenheit, and side oven controls are in an insulated side compartment to remain protected from heat. A unique baffle is situated above the heating element to keep cooking temperatures even throughout each oven, while a splash screen protects the element from food spills. The ovens have a porcelainized interior for easy cleaning, as well as a porcelainized, stamped, inner door liner for excellent heat retention. Standard 18" x 26" sheet pans will fit in these ovens in either front-to-back or side-to-side positions.
Boasting a stainless steel exterior with welded, polished stainless steel seams, this unit provides outstanding durability in your busy, commercial establishment. The large 3 1/4" landing edge also offers ample space for convenient plating. With sturdy, stainless steel, 6" adjustable legs, you'll have no trouble finding the perfect spot for this unit among the rest of your kitchen equipment. This unit requires a hardwired 208V, 3 phase electrical connection.
Overall Dimensions:
Left to Right: 36"
Front to Back: 35 7/8"
Cooking Surface Height: 36"
Height: 56 1/2"
Oven Dimensions:
Left to Right: 26 1/2"
Front to Back: 26"
Height: 14"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
CE Marking
This product complies with the standards imposed by Conformance European (CE).
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Resources and Downloads for Imperial Range IR-6-EW
A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Standard 1 year limited warranty
