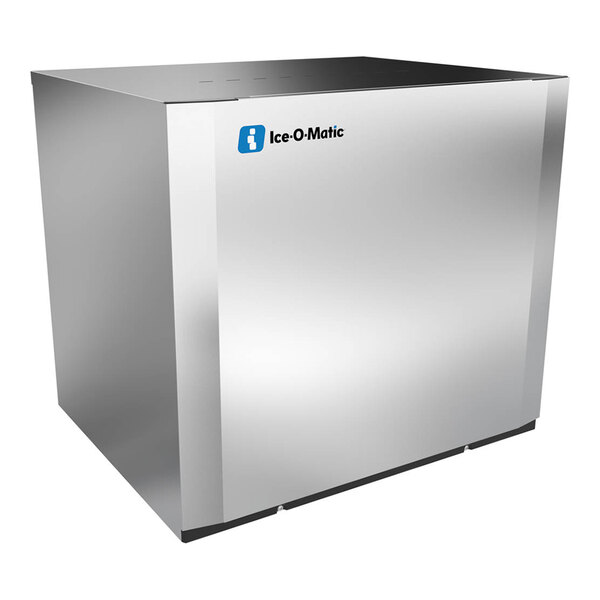

Ice-O-Matic CIM1136FW90 Elevation Series 30 1/4" Water-Cooled Full Dice Cube Ice Machine - 960 lb., 208-230V

Item number 458ci1136fw90MFR number CIM1136FW90

Video is loading

Ships free with

Free Shipping

Only

$7,009.00/Each

Accessories & Options

Add a Recommended Ice-O-Matic Ice Bin

Add a Recommended Ice-O-Matic Ice Dispenser

What We Offer

Protect Your Product

Coverage starting at $164.55

Earn up to $210.27 back (21,027 points)
(21,027 points) with a Webstaurant Rewards Visa® Credit Card
Apply, opens link in this tab

Add to Wish List

Usually Ships in 1-2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Produces up to 960 lb. of full dice cube ice per day
Corrosion-resistant and fingerprint-proof aluminum construction
Harvest Assist feature offers consistent ice production
Quick, easy cleaning with dishwasher-safe components
Modular, water-cooled design; R-290 refrigerant, 208-230V

UPC Code:400018198247

View All Products From Ice-O-Matic

View all Ice-O-Matic Water Cooled Ice Machines

Works With

Ice-O-Matic KBT5 Bin Top for 30" CIM and ICE Series on B100 Bin
$327.00/Each
Add to Cart
Quantity for Ice-O-Matic KBT5 Bin Top for 30" CIM and ICE Series on B100 Bin
Ice-O-Matic BPF-1 Filler Panel Kit for 30" CIM and ICE Series Cubers on B110 Bin
$178.00/Each
Add to Cart
Quantity for Ice-O-Matic BPF-1 Filler Panel Kit for 30" CIM and ICE Series Cubers on B110 Bin
Ice-O-Matic B40 30" Ice Storage Bin - 344 lb.
$1,305.00/Each
Add to Cart
Quantity for Ice-O-Matic B40 30" Ice Storage Bin - 344 lb.
Ice-O-Matic B55 30" Ice Storage Bin - 510 lb.
$1,506.00/Each
Add to Cart
Quantity for Ice-O-Matic B55 30" Ice Storage Bin - 510 lb.
Ice-O-Matic CD40030 30" Wide Hotel Ice Dispenser 180 lb. Capacity - 115V
$4,487.00/Each
Add to Cart
Quantity for Ice-O-Matic CD40030 30" Wide Hotel Ice Dispenser 180 lb. Capacity - 115V
Ice-O-Matic IFQ2 Double Ice Machine Water Filter - 0.5 Micron and 3 GPM
$703.00/Each
Add to Cart
Quantity for Ice-O-Matic IFQ2 Double Ice Machine Water Filter - 0.5 Micron and 3 GPM

Quantity: 1/Each
Shipping Weight: 210 lb.
Width: 30 1/4 Inches
Depth: 24 1/4 Inches
Height: 26 15/16 Inches
Amps: 13.1 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 208 - 230 Volts
24 Hour Ice Yield: 960 Pounds
Ambient Temperature Range: 50 - 100 Degrees F
Condenser Type: Water Cooled
Features: Corrosion-Resistant Made in America NSF Certified
Ice Type: Full Size Cubes
Installation Type: Modular
Material: Aluminum
Plug Type: Hardwire
Product Line: Ice-O-Matic Elevation Series
Refrigerant Type: R-290A
Type: Ice Machines
Water Inlet Size: 3/8 Inches
Water Pressure Range: 20 - 80 PSI
Water Temperature Range: 40 - 100 Degrees F

Ice-O-Matic CIM1136FW90 Details

Produce up to an impressive 960 lb. of 7/8" x 7/8" x 7/8" full dice cube ice per day with this Ice-O-Matic Elevation Series water-cooled ice machine. Crafted with corrosion-resistant and fingerprint-proof aluminum, this ice machine is built to withstand the demands of a busy commercial kitchen. Plus, all evaporator plates have durable, electroless nickel plating for added reliability. The Harvest Assist feature ensures consistent ice production for the life of the ice machine to increase capacity, reduce energy consumption, and allow you to keep up with high demand without sacrificing quality.

This ice machine is designed for convenience with quick and easy cleaning thanks to its front-facing evaporator and dishwasher-safe components. The modular, water-cooled design provides flexibility in installation options to suit your kitchen layout. Using R-290 refrigerant, this ice machine is ideal for restaurants, bars, and hotels. This Ice-O-Matic ice machine delivers reliable performance and high-volume ice production to meet your establishment's needs. It requires a 208-230V electric connection and must be hardwired. A cord and plug are not included. Compatible ice bins and dispensers are sold separately.

Overall Dimensions:
Width: 30 1/4"
Depth: 24 1/4"
Height: 26 15/16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Made in America
This item was made in the United States of America.
NSF Certified
This item is certified by NSF to applicable standards.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

How can I figure out the total daily water consumption of my water cooled ice maker?

In order to figure out the total daily water consumption you must take into consideration both condenser cooling water as well as potable ice making water. The equation is as follows:

(Potable Water + Condensor Water) x (lb. of ice per day / 100)

Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours

How do I match up ice machines, bins, and dispensers?

To help you find the right bin / dispenser / machine combination for your needs, you'll find manufacturer recommended ice bins and dispensers listed in either the Works With items or the Accessories & Options dropdown on each ice machine's product page. Dispensers and ice bins will have manufacturer recommended ice machines listed in the Works With items on their pages. If the bin or dispenser is wider than the ice machine, additional adapters, deflectors, and/or top kits may be necessary to join the machine to the bin. Please refer to the provided documentation on the ice machine and ice bin / dispenser product pages for more information.

Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My ice machine has been shut down for awhile, how should I restart it?

If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.

Should I buy an air-cooled or water-cooled ice machine?

Air-cooled ice machines are the most common choice. They're more energy-efficient and use much less water than a water-cooled model. Unless you are replacing an existing water-cooled unit or are operating under very high ambient temperatures, you probably will want an air-cooled unit. It's a great idea to check what your existing unit is before placing your order so that the installation of the new one will go smoothly!

Why does my water cooled ice machine use more water than is advertised?

Water cooled ice machines will seem to use more water than they should because they are constantly pulling in water to cool the machine when it's turned on. The water usage that most manufactures list is the amount of water needed to produce a certain number of pounds of ice in the given period of time, but doesn't factor in the amount of water that the machine will use in total.

Why should I buy a water filter along with this product?

Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.

Will this ice machine meet my business’s ice demand?

Every business type has unique demands for ice. If you have any questions about how much ice you’ll need please reference our Types of Ice Machines buying guide.

Need Parts & Accessories?

Show replacement parts and accessories for Ice-O-Matic CIM1136FW90 today!

Find Parts for this Item

Resources and Downloads for Ice-O-Matic CIM1136FW90

458CI1136FW90_CIM1136FW90.pdf

Specsheet

458CI0320FW90_CIM Installation and Owner's Manual.pdf

Manual

458CI0320FW90_Ice-O-Matic-Warranty-03.25.pdf

Warranty

458CI0320FW90_CIM R290 Small Cuber Service Parts_11-20-25.pdf

Parts Manual

458CI0320FW90_F00383-CLEANING-AND-SANITIZING-AN-ICE-O-MATIC-COMMERCIAL-ICE-MACHINE.pdf

Cleaning Guide

A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab

Resources
