$7,562.50/Each

Earn up to $226.88 back (22,688 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Versatile design includes both a refrigerated and a heated well
  • Perfect for holding pre-chilled and pre-heated foods at their ideal temperatures
  • Made with auto-defrost and excellent insulation for the refrigerated well
  • Built with the Hydro-Heater Food Rethermalizer / Bain-Marie Heater
  • Includes remote-mounted condensing unit and control panel
UPC Code:400015788922

Hatco HCWBIR-2DA 120/208V 1 PHASE Specs

Quantity
1/Each
Shipping Weight
214 lb.
Width
37 Inches
Depth
27 Inches
Height
26 1/2 Inches
Condenser Length
14 5/8 Inches
Condenser Width
12 1/4 Inches
Condenser Height
11 3/8 Inches
Amps
14.5 Amps
Phase
1 Phase
Voltage
120/208 Volts
Wattage
3,000 Watts
Color
Silver
Compressor Location
Bottom Mounted
Control Type
Digital
Features
Made in America  NSF Listed
Installation Type
Drop In
Pan Mounting
Recessed
Power Type
Electric
Size
Full Size
Type
Refrigerated Food Wells

Hatco HCWBIR-2DA 120/208V 1 PHASE Details

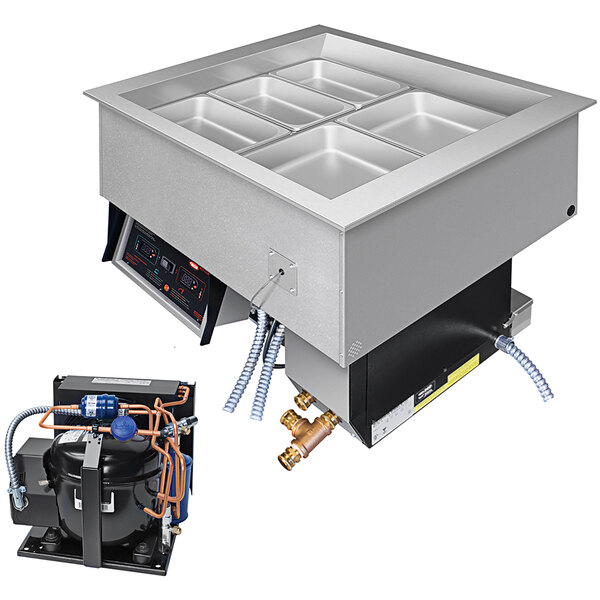

Keep hot foods hot and cold foods cold all at once with this Hatco HCWBIR-2DA 37" x 27" x 26 1/2" remote hot / cold drop-in well- 120/208V, 1 phase, 3000 watts. This versatile unit features a refrigerated well and a heated well that are perfect for holding pre-chilled and pre-heated foods together. It is made with adjustable set points to automatically keep foods at their ideal temperatures. This makes it great for use in buffets, catered events, and cafeterias. The wells can be used with different sized pans, including full, half, or third size (each sold separately) in a variety of configurations to suit your needs.

The refrigerated well of this unit includes an auto-defrost function, excellent insulation, and a highly efficient condenser, allowing for ease of use for staff and easy serviceability. Its heated well is built with the Hydro-Heater Food Rethermalizer / Bain-Marie Heater which contains "free-flow" technology. This technology is designed to provide the well with a longer life and create a safe, ergonomic operation. Plus, the included remote-mounted condensing unit and control panel allows you to install the unit in the most convenient location for your establishment while still being able to control it. A 20' cord is included with the condenser and an R-513A refrigerant is required for use (sold separately). A 120/208V electrical connection is required for operation of this drop-in well.

Overall Dimensions:
Width: 37"
Depth: 27"
Height: 26 1/2"

Condenser Dimensions:
Length: 14 5/8"
Width: 12 1/4"
Height: 11 3/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Customer questions about this product

How hot will the heated well get?

It depends. When filled with water, it can reach 210 degrees Fahrenheit. When dry, it can reach up to 380-450 degrees Fahrenheit.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Ask your own question!
  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

Resources and Downloads for
Hatco HCWBIR-2DA 120/208V 1 PHASE

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

NOTICE: This product does not ship internationally.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
