- Voltage:
- 208V, 3 Phase
Works great,

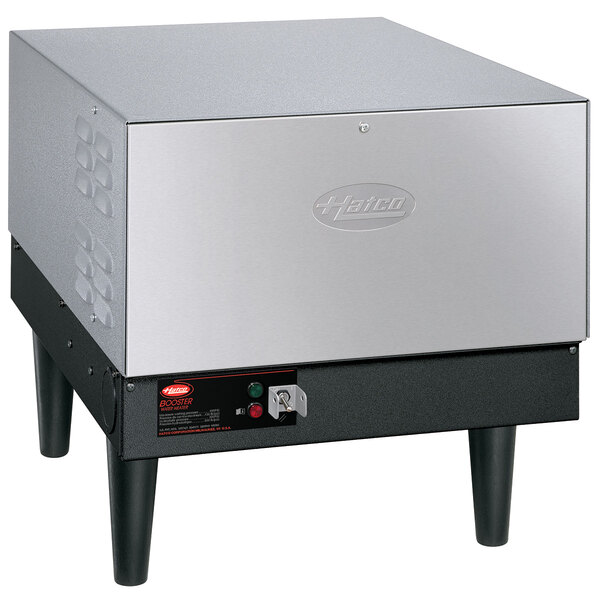

Hatco C-54 6 Gallon Compact Booster Water Heater - 208V, 3 Phase, 54 kW
Item number 413c54cMFR number C-54 208/3
Apply, opens link in this tabEarn up to $142.82 back (14,282 points)
(14,282 points) with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.
Quick Shipping
Usually ships in 1 business day
Product Overview
- 6 gallon storage capacity
- Space-saving compact design is easy to install next to dishwasher
- Fiberglass insulation to minimize heat loss
- Stainless steel front panel with 6" legs
- 208V, 3 Phase, 54 kW
Quality Rating:
UPC Code:615700013504
- Quantity
- 1/Each
- Shipping Weight
- 142 lb.
- Width
- 18 Inches
- Depth
- 24 Inches
- Height
- 18 Inches
- Amps
- 149.9 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 208 Volts
- Wattage
- 54 Kilowatts
- Features
- Made in America NSF Certified UL Certified
- Flow Rate
- 310 - 542 GPH
- Plug Type
- Hardwire
- Power Type
- Electric
- Tank Capacity
- 6 Gallons
- Usage
- Medium Duty
Hatco C-54 208/3 Details
The space saving Hatco C-54 54 kW compact booster water heater has a 6 gallon capacity to provide plenty of hot final rinse water required to properly sanitize and flash-dry dishes and flatware.
The Hatco C-54 electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch. Fiberglass insulation minimizes heat loss, while the stainless steel front panel and powder coated body provide long-lasting durability. Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easier servicing.
Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.
Overall Dimensions:
Width: 18"
Depth: 24"
Height (including legs): 18"
Other Specifications:
Water Temperature Recovery @ 40 Degrees Fahrenheit Rise: 542 GPH
Water Temperature Recovery @ 70 Degrees Fahrenheit Rise: 310 GPH
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
NSF Certified
This item is certified by NSF to applicable standards.
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Can this booster water heater replace a primary water heater?
No, it is not designed for that purpose. This unit should only be used as a secondary water heater.
Need Parts & Accessories?
Show replacement parts and accessories for Hatco C-54 208/3 today!
Resources and Downloads for Hatco C-54 208/3
Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Extended Warranty
Opens in new tab
Replacement Parts List
Opens in new tab
Brochure
Opens in new tab
Brochure
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
