$4,290.55/Each

Ships free with Plus

Earn up to $128.72 back (12,872 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 6 gallon storage capacity
  • Castone lined tank backed by 10 year limited warranty
  • 45 kW
  • 208V, 3 Phase
Quality Rating:
UPC Code:C2.00012

Hatco C-45 208/3 Specs

Quantity
1/Each
Shipping Weight
170 lb.
Width
18 Inches
Depth
24 Inches
Height
18 Inches
Amps
125 Amps
Hertz
60 Hz
Phase
3 Phase
Voltage
208 Volts
Wattage
45 Kilowatts
Features
Made in America  NSF Listed
Flow Rate
258 - 452 GPH
Plug Type
Hardwire
Power Type
Electric
Tank Capacity
6 Gallons
Usage
Medium Duty

Hatco C-45 208/3 Details

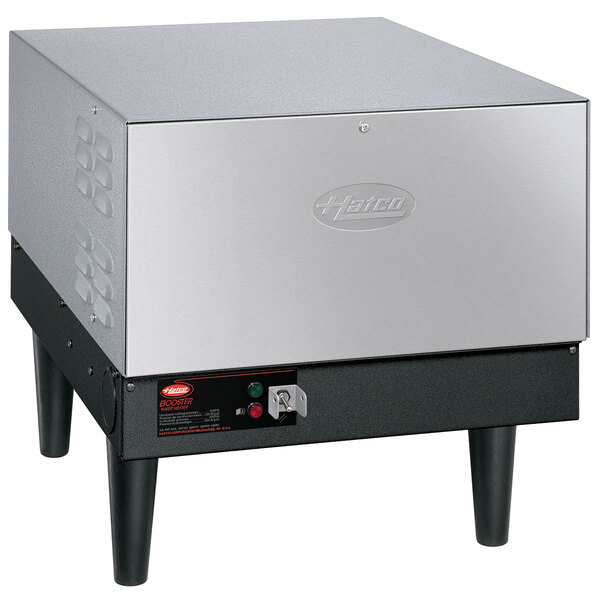

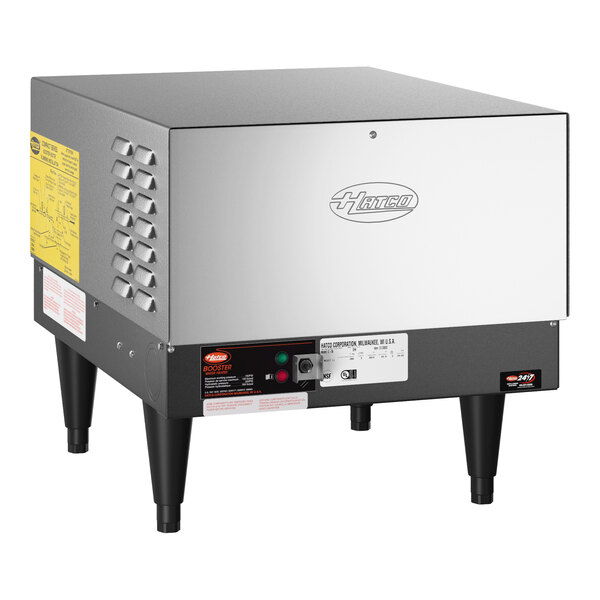

The space saving Hatco C45 45 kW compact booster water heater has a 6 gallon capacity to provide plenty of hot final rinse water required to properly sanitize and flash-dry dishes and flatware.

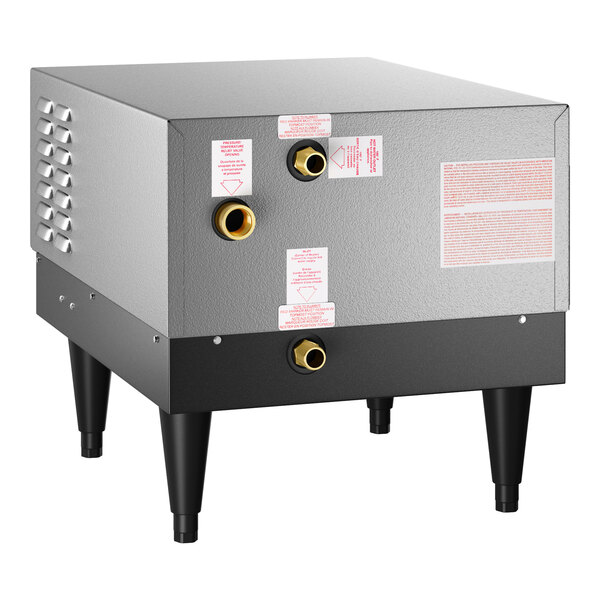

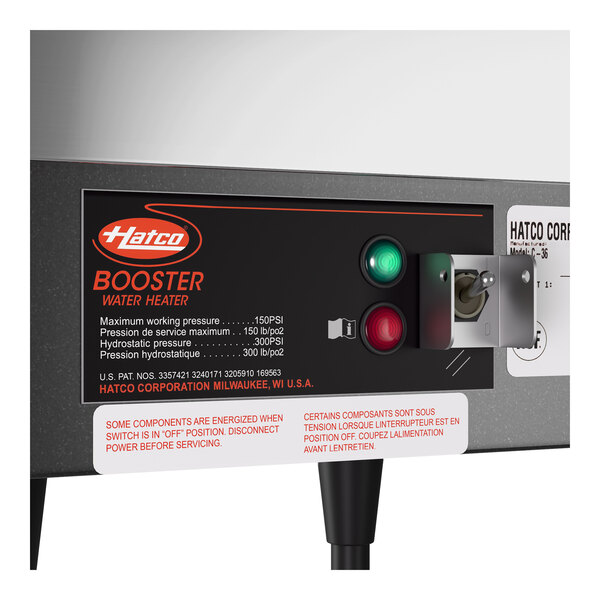

The Hatco C45 electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch. Fiberglass insulation minimizes heat loss, while the stainless steel front panel and powder coated body provide long-lasting durability. Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easier servicing.

Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.

Overall Dimensions & Specs:
Width: 18"
Depth: 24"
Height (including legs): 18"
Water Temperature Recovery @ 40 Degrees Fahrenheit Rise: 452 GPH
Water Temperature Recovery @ 70 Degrees Fahrenheit Rise: 258 GPH

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Can this booster water heater replace a primary water heater?

No, it is not designed for that purpose. This unit should only be used as a secondary water heater.
Ask your own question!
  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Need Parts & Accessories?

Show replacement parts and accessories for Hatco C-45 208/3 today!

Resources and Downloads for
Hatco C-45 208/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
