Product Overview

  • 6 gallon storage capacity
  • Space-saving compact design is easy to install next to dishwasher
  • Fiberglass insulation to minimize heat loss
  • Stainless steel front panel with 6" legs
  • 240V, 3 Phase
Quality Rating:
UPC Code:400011005931

Hatco C-24 240/3 Specs

Quantity
1/Each
Shipping Weight
135 lb.
Width
13 Inches
Depth
20 3/4 Inches
Height
19 3/4 Inches
Amps
57.8 Amps
Hertz
60 Hertz
Phase
3 Phase
Voltage
240 Volts
Wattage
24 Kilowatts
Features
Made in America  NSF Listed
Flow Rate
138 - 241 GPH
Plug Type
Hardwire
Power Type
Electric
Tank Capacity
6 Gallons
Usage
Medium Duty

Customer questions about this product

Can this booster water heater replace a primary water heater?

No, it is not designed for that purpose. This unit should only be used as a secondary water heater.

Ask your own question!

Hatco C-24 240/3 Details

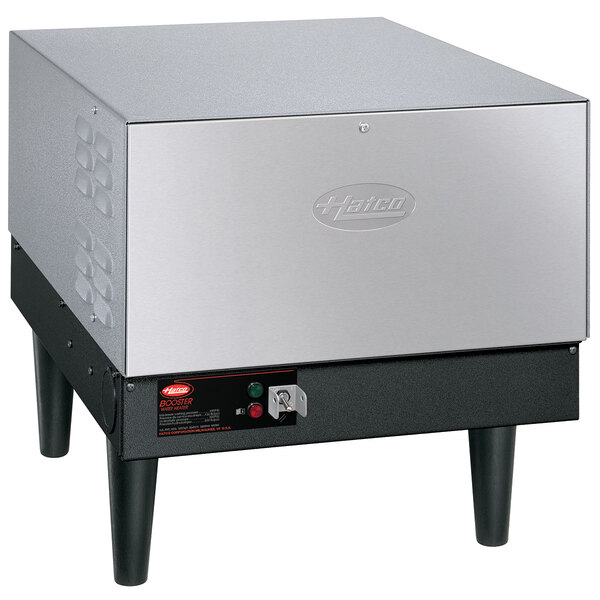

The space saving Hatco C-24 24 kW compact booster water heater has a 6 gallon capacity to provide plenty of hot final rinse water required to properly sanitize and flash-dry dishes and flatware.

The Hatco C-24 electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch. Fiberglass insulation minimizes heat loss, while the stainless steel front panel and powder coated body provide long-lasting durability. Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easier servicing.

Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.

Overall Dimensions:
Width: 13"
Depth: 20 3/4"
Height: 19 3/4"(includes legs)

Other Specifications:
Water Temperature Recovery @ 40 Degrees Fahrenheit Rise: 241 GPH
Water Temperature Recovery @ 70 Degrees Fahrenheit Rise: 138 GPH

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

Resources and Downloads for
Hatco C-24 240/3

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
