$2,929.00/Each

Ships free with Plus
  • Prevents grease from entering plumbing and septic systems
  • 16 gauge fully welded 304 stainless steel construction ensures product is durable and reliable
  • Programmable controller and interface with energy save mode
  • 2" uni-directional inlet and outlet accepts a variety of flow connections
  • Reduces need for grease trap service and cleaning
Shipping: Usually ships in 1 business day

Other Products from this Line

Grease Guardian Point Source Machines

Grease Guardian Point Source Machines

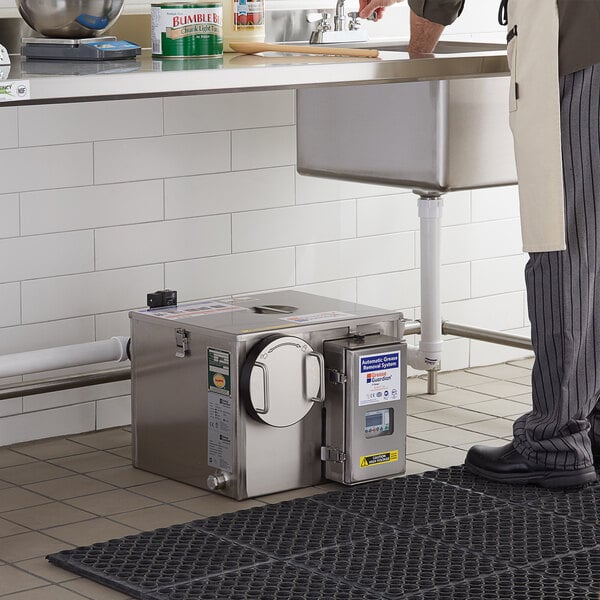

Introducing the Grease Guardian by FM Environmental Limited. In today's industrial and commercial environment, pollution is one of the biggest challenges faced by organizations across the world. In recent years, it has become more common to hear about fat spurs in big cities and suburbia. And fats, oils, and greases coming from hotel kitchens, restaurants, and catering facilities that are not properly equipped with a grease removal unit. Grease Guardian has developed its latest line of grease interceptors to suit these applications, GGX15, GGC20, GGX25, and GGX35. The Grease Guardian X range grease removal units are ideal for almost any location. The Grease Guardian X series design is optimized to serve busy kitchens that have limited space for traditional, in-ground grease traps. Allowing for point of source installation under the main grease producing fixture such as sinks and ovens. From the sink or oven, the drain water containing both solids and greaseways flows in the inlet located in the back of the tank and then is directed through a solid strainer positioned above the water level. Any food waste such as rice or vegetables are filtered by the basket, allowing only the greasy liquids through. When the liquid waste enters the main chamber the grease and fat separate from the water, rise to the surface, and remain in the tank. Only the treated water continues under the outlet and down the drain. A skimming cycle is automatically set to come on for a short period of time in order to remove the trapped grease. First the grease is heated and liquefies on the surface. Next, the program switches from heating to skimming mode. The trap skims off the surface on a stainless steel drum and is scraped into an external grease collection container. The entire process is fully automatic. The option of the wash down system helps with internal cleaning of the GGX. The maintenance of the GGX could not be easier. When the GGX is not in operation, simply remove the strainer basket from the side of the machine by releasing the access cap. Empty the contents of the basket into a food waste bin. When the grease collection container is full, remove the side and empty into a liquid recycling drum. The grease wiper can be removed from the side and wiped clean. Fine sediment can be removed periodically using the drain valve in the bottom of the tank, or on certain models through the option of a solid transfer pump, or by using a local waste pump. The Grease Guardian is fully sealed and made entirely of the best quality stainless steel and meets all major international grease trap standards. Grease Guardian: the best in grease removal technology.

Copy and paste the embed code above.

The Grease Guardian ensures your drains stay grease and clog free!

Grease Guardian LLC CG-4 Specs
Length 25 Inches
Width 22 Inches
Height 13 1/2 Inches
Capacity 10 lb.
Flow Rate 4 GPM
Inlet and Outlet Size 2 Inches
Material Stainless Steel
Type Automatic Grease Removal Units
Water Inlet Size 1/2 Inches

Grease Guardian LLC CG-4 Details

Improve your back-of-house efficiency with the Grease Guardian CG-4 Combi Guardian 10 lb. automatic grease trap. By filtering wastewater from your attached rotisserie or combi oven, this machine separates solids and grease and protects your plumbing in the process. After filtering, settled grease is automatically sent to the external grease collector, as many as four times per day, which reduces the time you spend cleaning the machine and the risk of backup.

Using a durable skimming wheel, the CG-4 is capable of outputting a skimming rate of 11 / 22 pounds per low / high cycle. The skimming process makes the removal and recycling of grease easier than ever. With the integrated controller and interface, you're able to set energy-saving options based on the needs of your establishment. Featuring a 4 gpm flowrate and a 10 lb. grease retention capacity, this machine is built to handle any kitchen and is ideal for floor or shelf-mounted arrangement.

With a fully sealed, air-tight stainless steel lid and robust stainless steel clamps, this machine is built to withstand consistent and long-term use. It also features an above-water, heavy-duty stainless steel dry solids strainer basket. This unit requires a 110V electrical connection.

Overall Dimensions
Length: 25"
Width: 22"
Height: 13 1/2"
Inlet / Outlet Diameter: 2"
Hot Water Inlet Diameter: 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

  • PDI Certified

    PDI Certified

    This item has been certified by the Plumbing and Drainage Institute (PDI), which promotes the advancement of Engineered Plumbing Products.

  • NSF Listed

    NSF Listed

    This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.

  • IAPMO R&T UPC Certified - USA & Canada

    IAPMO R&T UPC Certified - USA & Canada

    This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.

Resources and Downloads for
Grease Guardian LLC CG-4

2020 Combi Guardian Cut Sheet Brochure Specsheet Grease Guardian Standard Warranty Warranty
