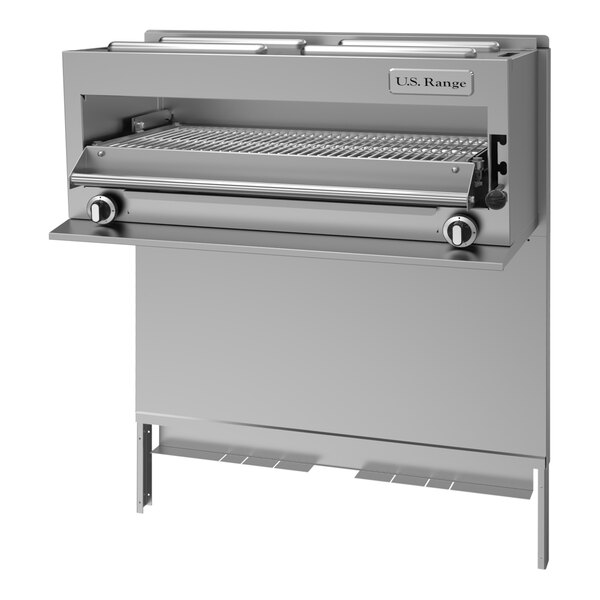

U.S. Range UIR36 Natural Gas Range-Mount Infra-Red Salamander Broiler for Cuisine Series - 40,000 BTU
Item number 372cir36nMFR number UIR36 NAT
Works With
Apply, opens link in this tabEarn up to $128.94 back (12,894 points)
(12,894 points) with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.
Usually Ships in 3 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Stainless steel front, top, sides, backsplash, and bottom
- (2) 20,000 BTU infra-red burners
- 2 individual high and low valve controls
- 3-position spring-balanced, adjustable rack assembly
- For range-mount applications on select Cuisine series ranges
UPC Code:400010076802
Works With
- Quantity
- 1/Each
- Shipping Weight
- 200 lb.
- Width
- 35 1/2 Inches
- Depth
- 16 5/8 Inches
- Height
- 45 3/8 Inches
- Control Type
- Manual
- Features
- NSF Certified
- Gas Connection Size
- 1/2 Inches
- Installation Type
- Range Mounted
- Number of Shelves
- 1 Shelf
- Power Type
- Natural Gas
- Total BTU
- 40,000 BTU
- Type
- Salamanders
Garland / US Range UIR36 NAT Details
This U.S. Range natural gas range-mount infra-red salamander broiler is a great addition to your existing Cuisine range (sold separately)! Thanks to 2 powerful 20,000 BTU infra-red burners, you'll be able to brown the tops of casseroles, melt cheese, broil or reheat individual entrees, and finish cuts of meat with ease! This salamander broiler features a stainless steel top, front, sides, and backsplash for durability and easy cleaning. It's compatible with select U.S. Range Cuisine series ranges.
To protect employees from the heat, this unit is equipped with a stainless steel bottom heat shield. A 3-position, spring-balanced adjustable rack assembly, 2 individual high and low valve controls, and a large capacity removable grease pan enhance flexibility and ease of use. This unit requires a natural gas connection for operation.
Overall Dimensions:
Width: 35 1/2"
Depth: 16 5/8"
Height: 45 3/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
NSF Certified
This item is certified by NSF to applicable standards.
1/2" Gas Connection
This unit comes with a 1/2" gas connection to be installed by a professional.
CSA
This product is certified by CSA to applicable Canadian standards.
