Name: Eversteel by T&S SMPF-8WLN-06 Stainless Steel 8" Wall Mount Mixing Faucet with 6" Swing Nozzle and Mini Pre-Rinse Unit with 1.15 GPM Spray Valve
Brand: T&S Brass and Bronze Works
SKU: 510SMPF8WLN6
Price: 494.99 USD
Availability: LimitedAvailability

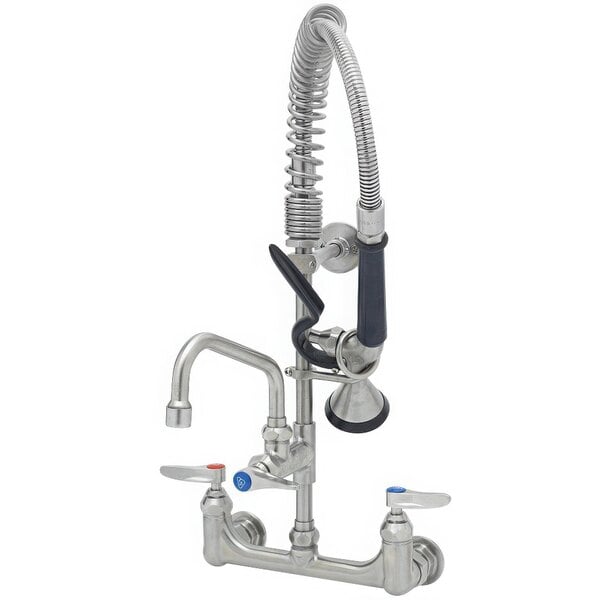

A silver stainless steel wall mount pre-rinse faucet with a hose and mini pre-rinse unit.

Only

$494.99/Each

Ships free with Plus

Earn up to $14.85 back (1,485 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

6" swing nozzle offers ideal clearance
Produces excellent output with a 1.15 GPM spray valve
Convenient wall mount configuration
Ultra-durable stainless steel construction
Color-coded lever handles for simplified temperature identification

UPC Code:400015974066

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 12 lb.
Hose Length: 24 Inches
Faucet Width: 12 5/8 Inches
Faucet Height: 22 1/8 Inches
Add-On Faucet: 6 Inches
Add-on Flow Rate: 9.73 GPM
Add-On Type: Swing
Cartridge Type: Compression
Faucet Centers: 8 Inches
Finish: Brushed
Handle Type: Lever
Material: Stainless Steel
Mounting Style: Wall Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: Mini Pre-Rinse Faucets
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.15 GPM
Temperature Rating: 40 - 140 Degrees Fahrenheit
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

Customer questions about this product

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

Ask your own question!

T&S Brass and Bronze Works SMPF-8WLN-06 Details

Discover exceptional cleaning power with this Eversteel by T&S SMPF-8WLN-06 stainless steel 8" wall mount mixing faucet with 6" swing nozzle and mini pre-rinse unit with 1.15 GPM spray valve. Featuring stainless steel 1/2" NPT female inlets, this attractive brushed-finish stainless steel unit is built for exceptional performance in busy establishments. The 6" swing nozzle, which includes a stream regulator outlet, offers optimal clearance in large sinks for easy completion of hand and dishwashing procedures. Stainless steel lever handles with color-coded indexes offer clear visibility for temperature identification at a glance, and quarter-turn Eterna compression cartridges with spring checks work to prevent crossflow.

The mini pre-rinse unit is constructed with a 24" flexible stainless steel hose and comes complete with a heat-resistant blue handle and hold-down ring to protect your hands during use. The 1.15 GPM spray valve, built with an integrated spray face and bumper, offers the intense power that you need to maintain increased cleanliness in your business. Additionally, this unit comes standard with a stainless steel 8" riser and 6" adjustable wall bracket ensure convenient installation and outstanding durability. Upgrade your sanitation process with this reliable Eversteel by T&S faucet and pre-rinse unit!

Overall Dimensions:
Faucet Height: 22 1/8"
Faucet Width: 12 5/8"
Add-On Faucet: 6"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

NSF/ANSI 61 & 372
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
