Product Overview
- Durable stainless steel top ideal for commercial use
- Full perimeter marine edge contains spills or leaks
- Features high density polyurethane foam insulation
- Comes with 6" casters
- Each drawer holds one 12" x 20" x 4" deep hotel pan
- Four independent temperature controlled drawers
- 660 lb. weight capacity
- Environmentally-safe R290 refrigerant
Other Products from this Line
$15,694.00/Each
$7,392.00/Each
$10,847.00/Each
$11,216.00/Each
$12,607.00/Each
$13,282.00/Each
$15,282.00/Each
$15,509.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 540 lb.
- Width
- 75 1/4 Inches
- Depth
- 31 15/16 Inches
- Height
- 26 Inches
- Amps
- 4.8 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Drawers
- Base Style
- Refrigerator
- Capacity
- 1/6 Size Food Pans Half Size Food Pans lb.
- Compressor Location
- Side Mounted
- Features
- NSF Listed
- Full Size Food Pan Capacity
- 10 Pans
- Horsepower
- 1/4 HP
- Number of Drawers
- 4 Drawers
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Temperature Range
- 36 - 40 Degrees F
- Top Capacity
- 660 lb.
- Top Style
- Marine Edge
- Type
- Chef Bases
Customer questions about this product
Does free shipping apply to this Delfield item if I am shipping it to a residential address?
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
Delfield F2975CP Details

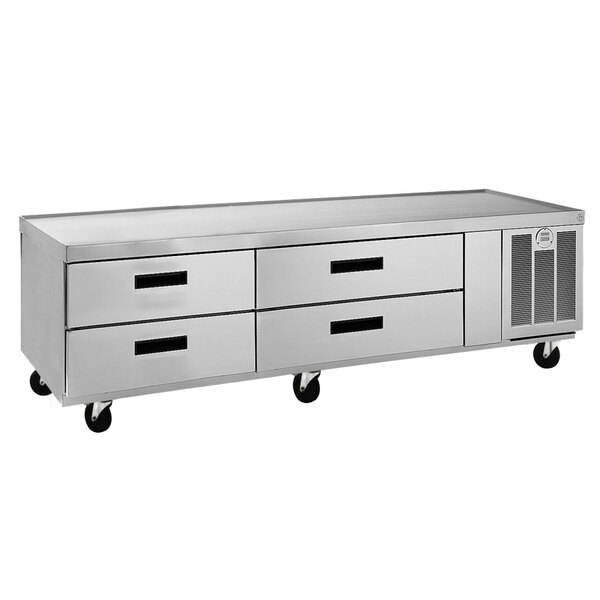

The Delfield F2975CP four drawer 75" refrigerated chef base makes food preparation faster and more convenient by providing both a cooled storage area for temperature sensitive ingredients, and a sturdy base to hold your cooking equipment! Each of the right-hand drawers is 32" wide and can hold two 12" x 20" full size pans up to 4" deep. The left-hand drawers are 27" wide and can each hold two 12" x 20" full size pans up to 4" deep (sold separately). For added convenience, the drawers on this unit are designed to open further than drawers in many standard chef bases. This allows you to lift pans straight up and reduces the risk of spills.
This heavy duty chef base features durable stainless steel ends and a flat, stainless steel top to stand up to the rigor of a busy kitchen, and to evenly support equipment. This sturdy top works to preserve internal temperatures by eliminating heat transfer from your cooking equipment to the refrigerated drawers. It also features a full perimeter marine edge to collect excess water and other runoff.
This Delfield 75" chef base is insulated with high density polyurethane foam, and the drawers are further insulated with an ABS interior liner to ensure that each section stays at its intended setting. A 1/4 hp compressor runs on eco-friendly R290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business. For easy cleaning and movement, this chef base features six 6" casters. This Delfield F2975CP refrigerated chef base requires a 115V electrical connection.
Overall Dimensions:
Left to Right: 75 1/4"
Front to Back: 31"
Height: 26"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in Canada.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
