Product Overview

  • Prevents pests and airborne pollutants from entering facility
  • Durable 1-piece stainless steel construction
  • 8 1/2" low profile design, works over entrances up to 10' high
  • 1/5 hp variable speed motor with low noise level (53 dBA high speed and 44dBA low speed)
  • 240V, 1 Phase
UPC Code:400012859410

Curtron S-LP-42-1-VS-EH-240/1 Specs

Shipping Weight
70 lb.
43 Inches
11 7/8 Inches
8 1/2 Inches
33.3 Amps
60 Hertz
1 Phase
240 Volts
8,000 Watts
Low Profile  Made in America
1/5 HP
Installation Type
Surface Mounted
Noise Level
53 dB
Plug Type
Back Door  Drive-Thru Window  Front Door
Air Curtains

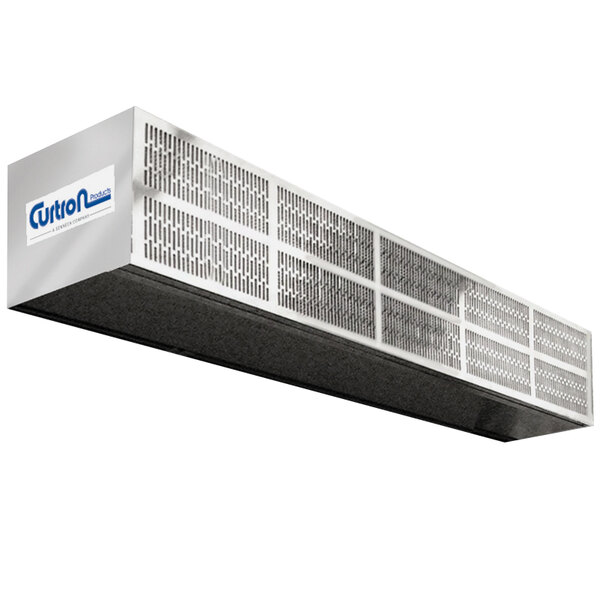

Curtron S-LP-42-1-VS-EH-240/1 Details

This Curtron S-LP-42-1-VS-EH commercial low profile air curtain is a great solution when you need a way to keep pests and airborne pollutants out, but you have limited installation space to work with! This model boasts a powerful 1/5 hp variable speed motor design and an innovative air compression chamber that together produce a powerful, uniform airflow pattern over entryways up to 10' high. This "air wall" keeps insects and other small pests from entering your building, but it also saves you money on your energy bill by keeping outside hot and cold air from infiltrating climate-controlled areas!

The air curtain operates at a mere 44 dBA on low speed and 53 dBA on high, so you don't need to worry about the noise bothering your employees or customers. And since it only measures 8 1/2" high, you can install this low profile unit in spaces that might otherwise be too small for a conventional model. It's a great option for a wide range of applications like drive-thru windows, concession stands, building entrances, walk-in coolers, and patios!

A durable 1-piece stainless steel body gives this model superior durability, and it includes filters to improve the air quality. It is rated with a CFM of 1380 at the nozzle. It requires a 240V electrical connection and must be hardwired.

Overall Dimensions:
Width: 43"
Depth: 11 7/8"
Height: 8 1/2"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired


    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
