$14,999.00/Each

This product is no longer available. We've left this page up for reference only.

Special Order Shipping

An estimated delivery date will be provided after placing the order

Product Overview

  • Cleans open-ended containers up to 24" in diameter and 36" high
  • Front-loading, hinged door with safety interlock
  • Dual 14-guage stainless steel tanks for recirculating and rinsing / sanitizing
  • Self-contained heating with two 6 kW immersion heaters
  • Pre-programmed 4, 6, or 8 minute wash cycles with 30-second sanitizing rinse cycle
UPC Code:400015300421
View all Champion Single Rack Dishwashers and Double Rack Dishwashers

Champion PPU-GCW-1-E Specs

Quantity
1/Each
Shipping Weight
850 lb.
Width
45 1/2 Inches
Depth
32 3/8 Inches
Height
85 1/2 Inches
Door Opening Width
25 Inches
Door Opening Height
38 Inches
Interior Diameter
24 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
208 Volts
Application
Trash Can Washers
Dishwasher Style
Front Load
Features
Made in America
Horsepower
2 HP
Interior Clearance
36 Inches
Number of Cycles
3 Cycles
Racks Per Hour
10
Type
Single Rack
Wash Tank Capacity
20 gal.
Water Inlet Size
3/4 Inches
Water Usage
3.1 Gallons Per Rack

Champion PPU-GCW-1-E Details

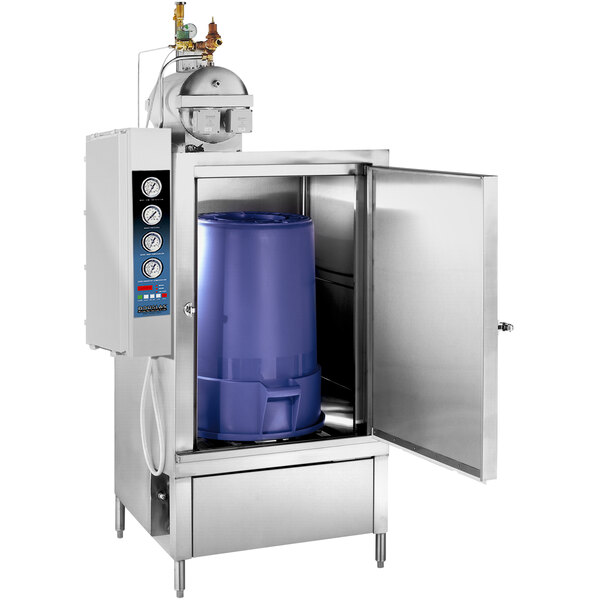

Eliminate the need to handwash trash cans in your business with the Champion GCW-1 208/1 trash can washing machine. This machine cleans and sanitizes the inside and rinses the outside of open-ended containers like trash cans and barrels up to 24" in diameter and 36" high. The machine has an easy-to-use, front-loading design with a hinged door and a safety interlock that prevents operation when the door is open. An integrated push-button control interface allows you to pre-program short, medium, or long wash cycles at 4, 6, or 8 minutes. It also features LED lights indicating wash, rinse, and unload functions and displays error codes for troubleshooting. The powerful 2 HP wash pump and rotating wash arm with V jets allow the machine to effortlessly cut through tough soiling, while an external rinse hose with a spray gun provides a convenient way to pre-spray stubborn messes prior to starting a wash cycle.

This machine features two stainless steel tanks, one for dispensing fresh rinse water and one for recirculating detergent wash water. Self-contained water heating via two 6 kW immersion heaters ensures that water reaches the desired temperature quickly and helps save space in your establishment by eliminating the need for an external heating unit. Using the shortest wash cycle, the machine can process up to 10 units per hour, using only 31 gallons of water. No matter the duration, each wash cycle at 150 degrees Fahrenheit is followed by a 30-second fresh water sanitizing rinse cycle at 180 degrees Fahrenheit to ensure proper sanitizing.

Temperature and pressure gauges for the wash and rinse functions make it easy for the operator to monitor machine activity and ensure ideal conditions are maintained. Additionally, the unit's filtration system is easy to access and clean, making it simple for operators to ensure optimal day-to-day machine performance. This unit requires a 208V, 1 phase electrical connection for operation.

Overall Dimensions:
Width: 45 1/2"
Depth: 32 3/8"
Height: 85 1/2"
Door Opening Width: 25"
Door Opening Height: 38"
Recirculating Wash Tank Capacity: 20 gallons
Sanitizing Rinse Tank Capacity: 6 gallons

Attention CA Residents:

Customer questions about this product

Is there anything else I should consider before ordering this item?

This item carries a 25% restocking fee for returns. Please be sure to check all necessary utility connections and installation requirements to be sure that this item will install correctly. Contact our customer solutions team if you have any questions so we can help ensure you purchase the right product and configuration for your needs!

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.
Ask your own question!
  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Listed, US

    UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
