Product Overview
- Provides fresh air in your establishment
- Blowers perform at low speed and low noise levels
- Features galvanized steel housing
- Cabinet boasts weatherproof design
- Requires a 1 phase electrical connection for operation
Other Products from this Line
$1,199.00/Each
$969.00/Each
- Canarm SIG1230200M 32" x 57" x 32" Silver Side Intake Filtered Fresh Air Supply Unit - 3 Phase, 2 hp
$1,139.00/Each
- Canarm SIG1530300M 32" x 57" x 32" Silver Side Intake Filtered Fresh Air Supply Unit - 3 Phase, 3 hp
$1,469.00/Each
$1,009.00/Each
$939.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 140 lb.
- Width
- 32 Inches
- Depth
- 57 Inches
- Height
- 32 Inches
- Wheel Diameter
- 15 Inches
- Phase
- 1 Phase
- Voltage
- 115/208-230 Volts
- Color
- Silver
- Cubic Feet per Minute
- 3,000 - 5,200 CFM
- Drive Type
- Belt Drive
- Horsepower
- 3 HP
- Installation Type
- Roof Top Mounted
- Material
- Aluminum Steel
- Plug Type
- Hardwire
- Style
- Side Intake
- Type
- Supply
Canarm SIG1510300 Details

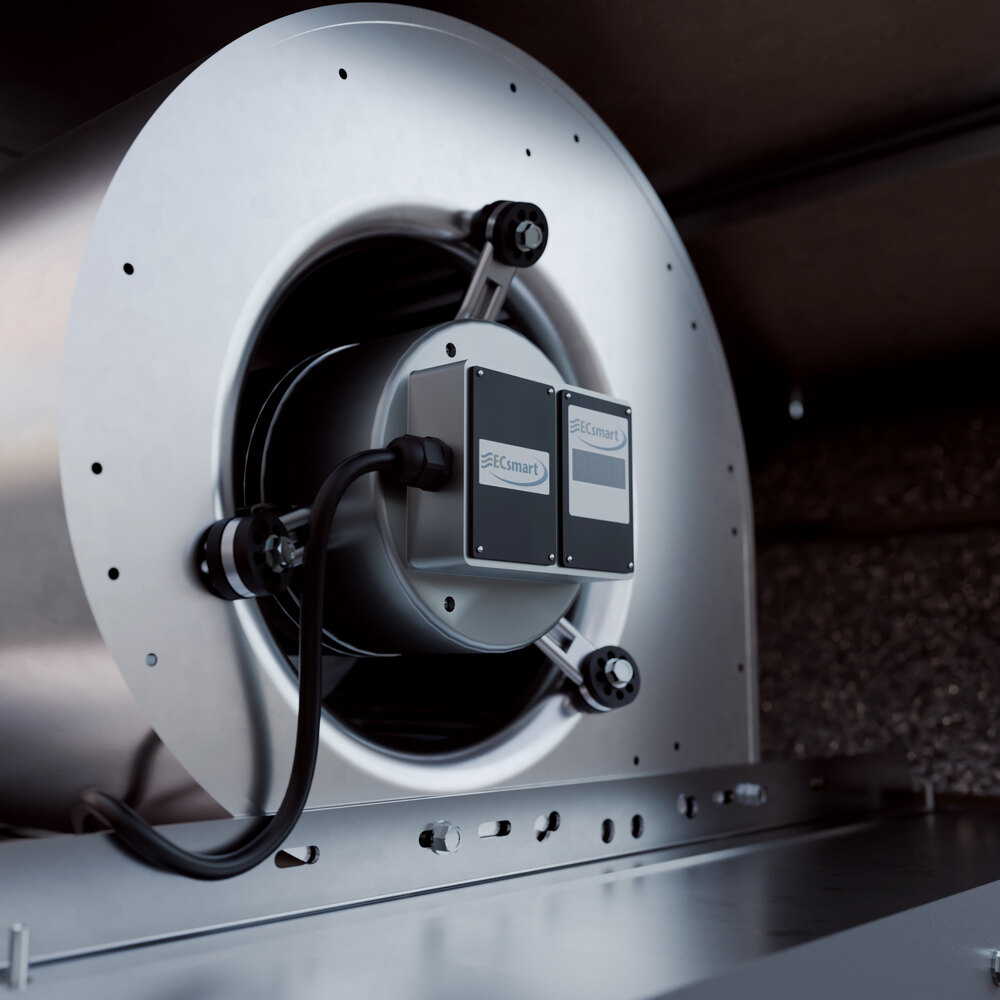

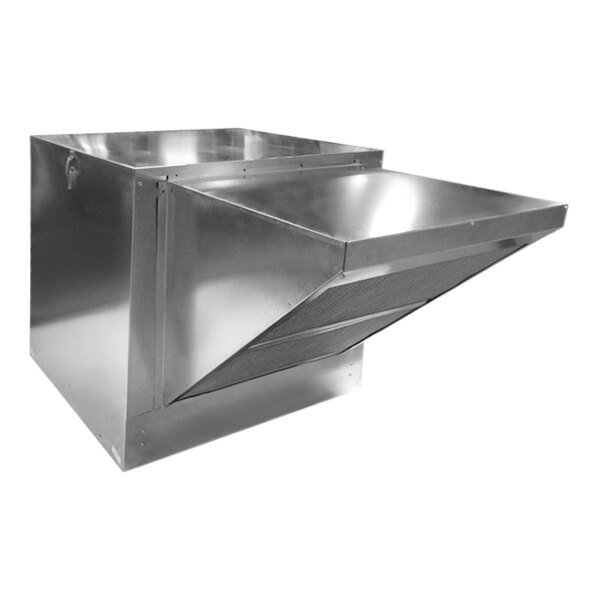

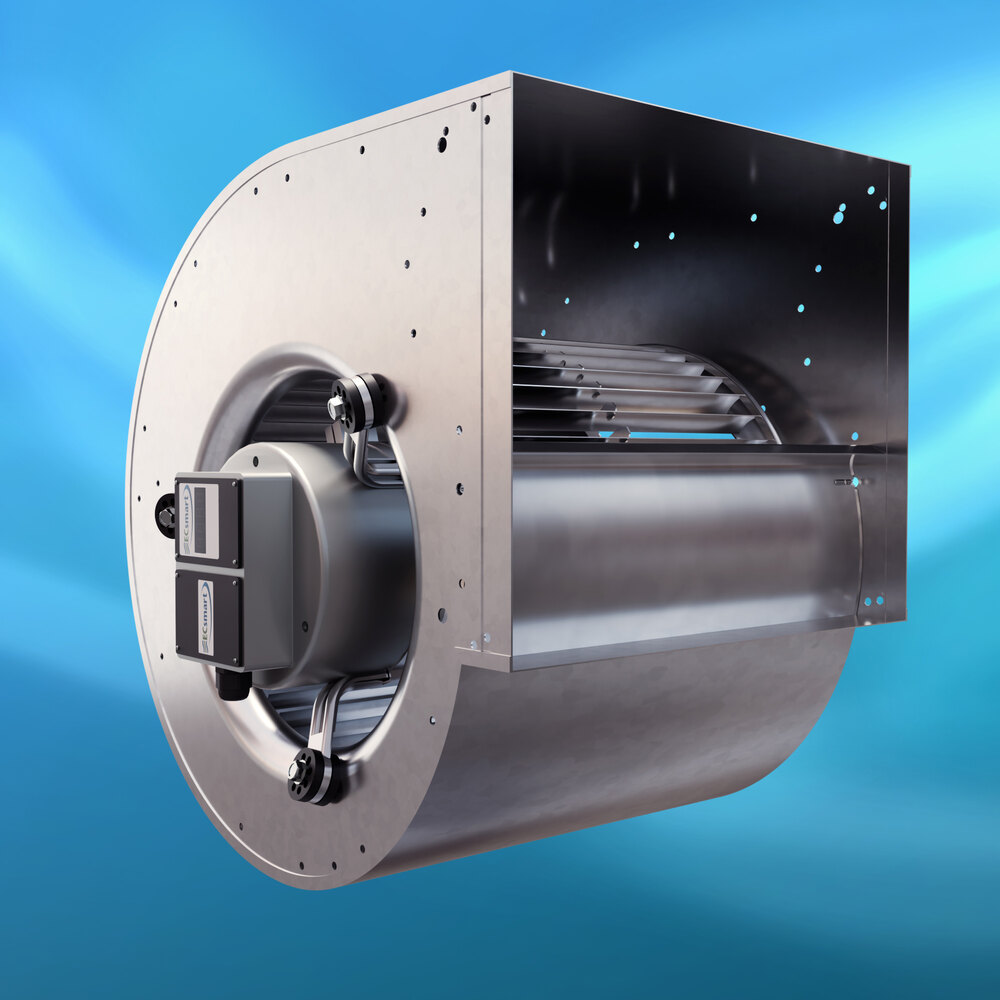

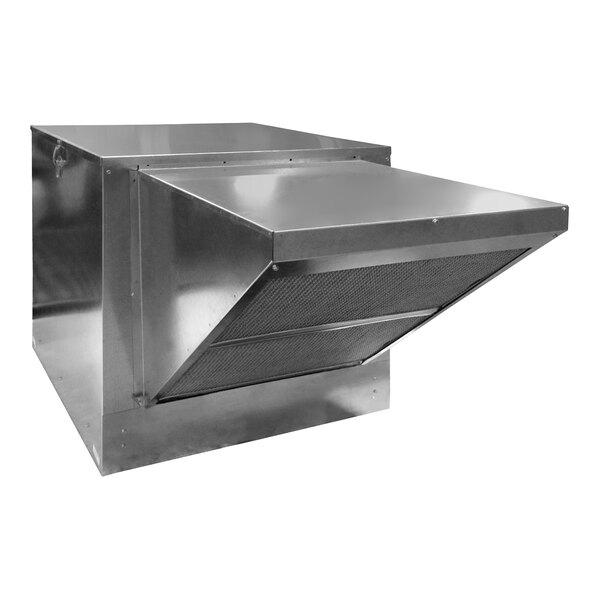

Enhance air quality in apartments, office buildings, and schools with this Canarm SIG1510300 side intake filtered fresh air supply unit. This unit works to eliminate contaminants to provide fresh air in your establishment. Designed with a large surface area, this unit offers efficient filtration that will help keep your air fresh and clean. It uses 16" x 25" x 1" filters and boasts a 3 hp motor that delivers 3,000 to 5,200 CFM. This unit is equipped with flexible forward curved belt drive blowers that perform at a low speed. Plus, the blowers function at low noise levels to help maintain a quiet environment in your facility.

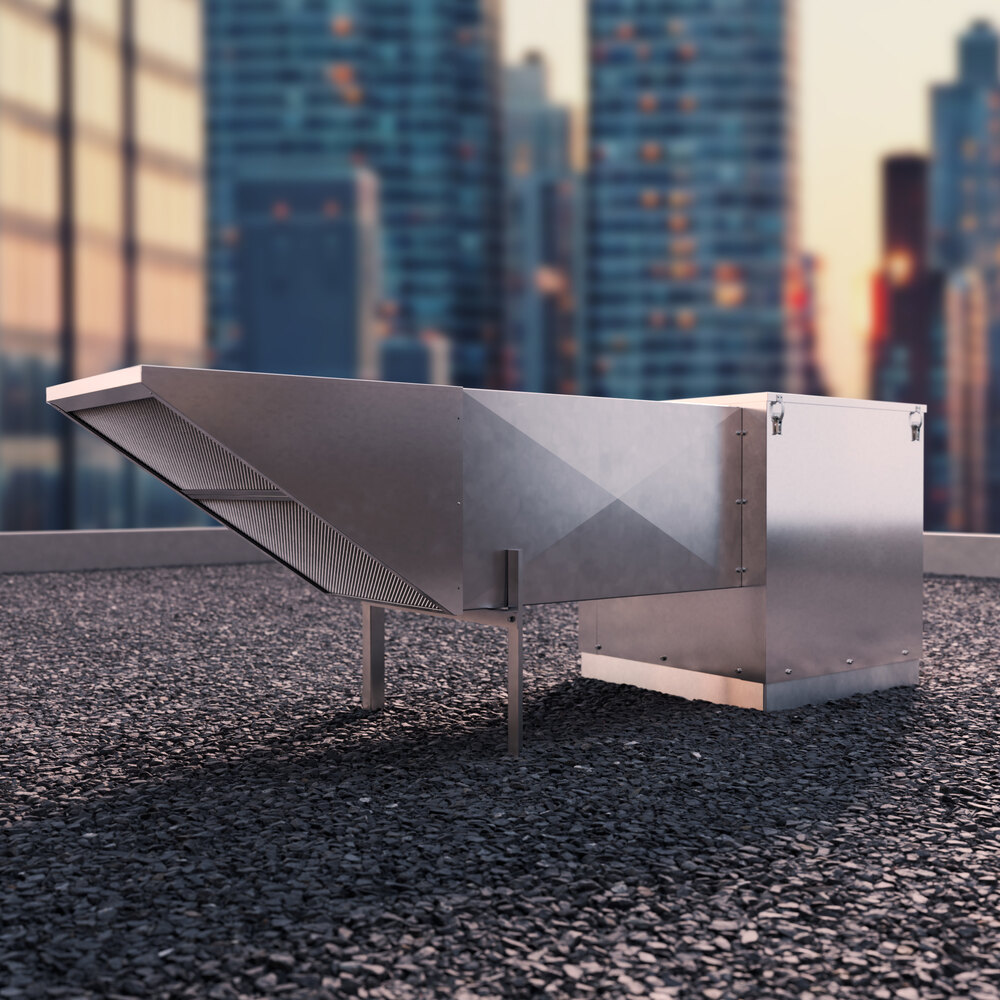

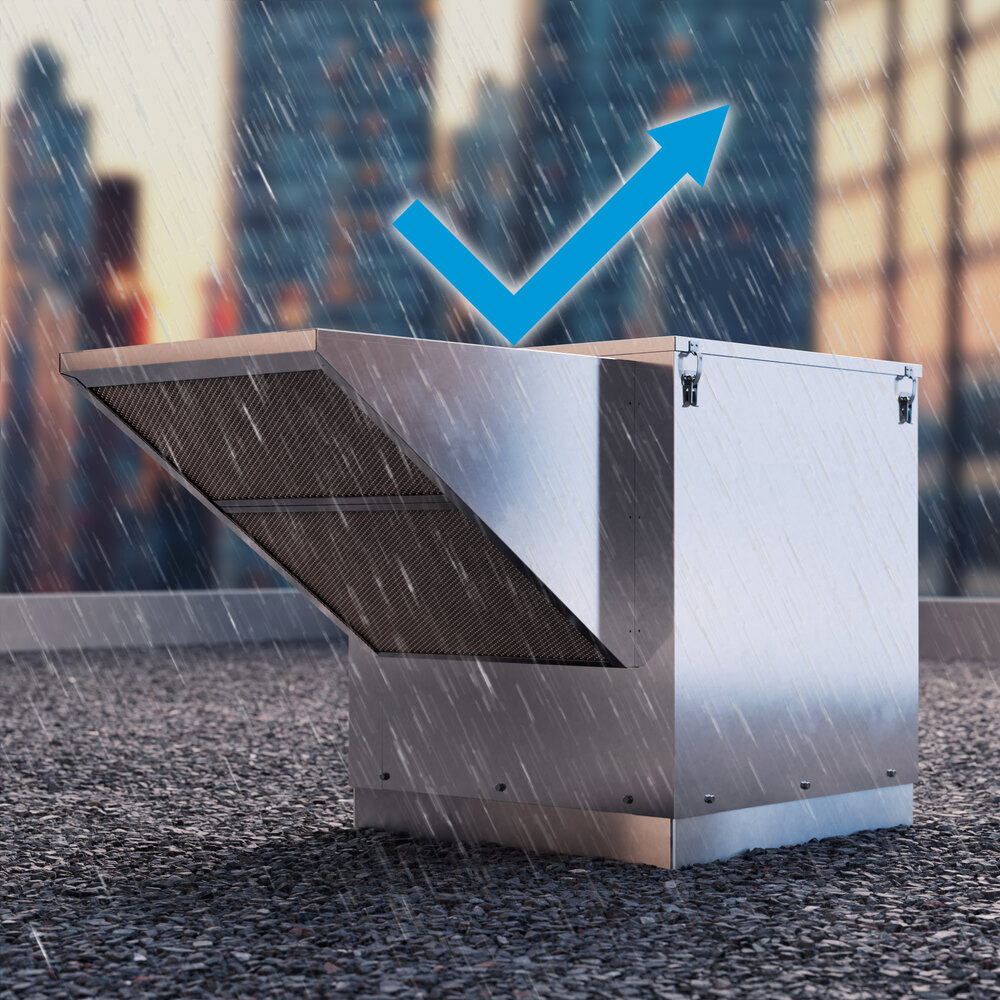

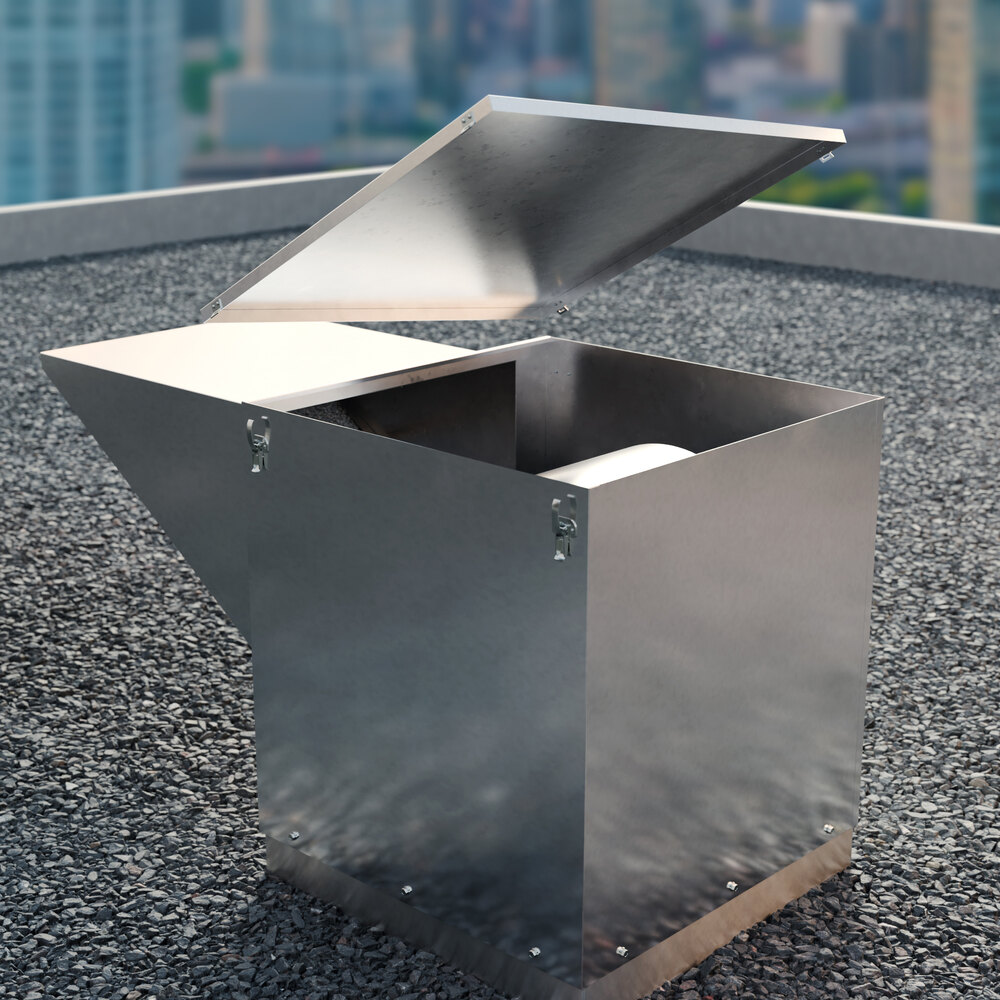

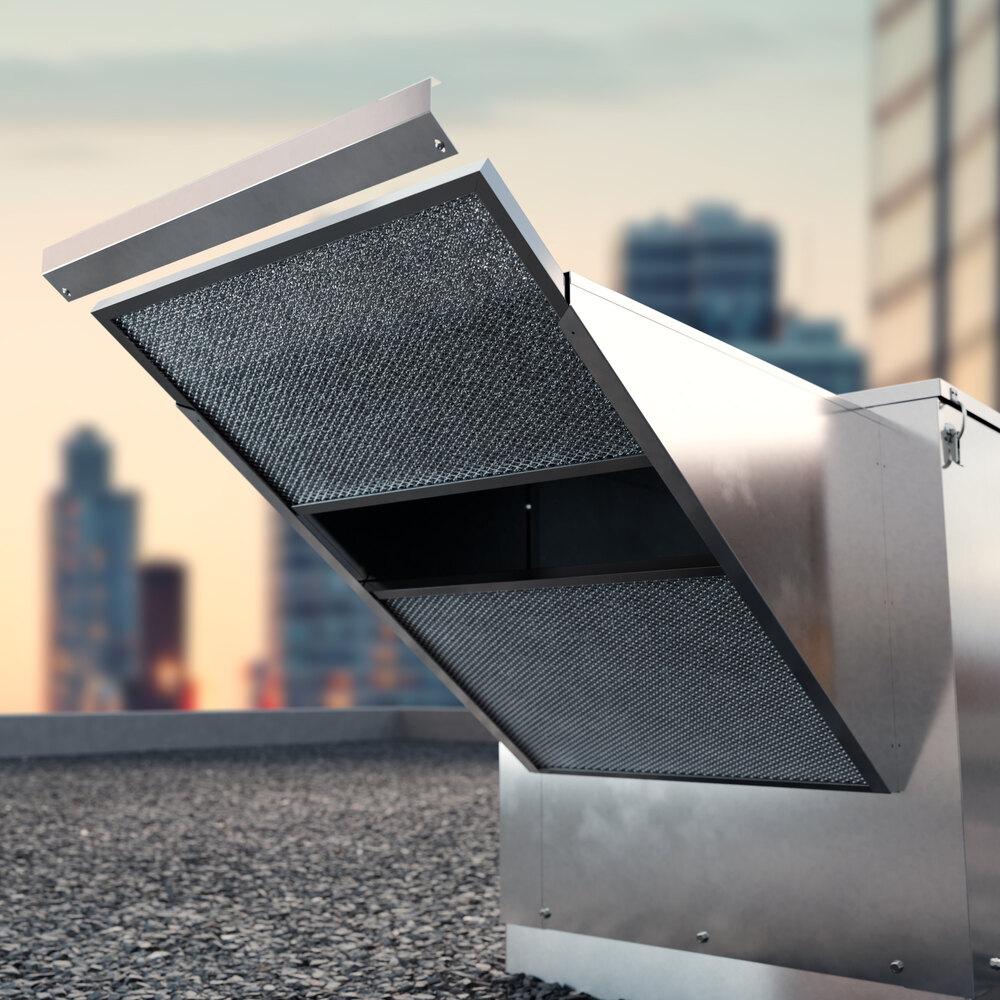

This unit boasts galvanized steel housing, making it durable enough for long-term use. Suitable for temperatures ranging from -65 to 250 degrees Fahrenheit, the unit's heavy-duty ball bearings can withstand extreme cold and heat. This unit is built for outdoor roof mounting, thanks to the cabinet's weatherproof design. For your convenience, this unit includes washable aluminum mesh filters that are housed in the intake hood. The filters can be reached through the hood end cap for the utmost ease of accessibility. Customers can easily add an additional air supply duct extension between the intake hood and the unit to allow for increased separation where needed.
This unit requires a 1 phase, 115/208-230V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 32"
Depth: 57"
Height: 32"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
