$1,449.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Moves dust, fume exhaust, and other non-abrasive particles
- Direct drive system powers the blower’s fan
- Features welded 16 gauge steel housing
- Boasts heavy cast aluminum wheels with straight radial blades
- 115V/208-230V; 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 200 lb.
- Width
- 17 5/8 Inches
- Depth
- 21 1/4 Inches
- Height
- 28 1/8 Inches
- Phase
- 1 Phase
- Voltage
- 115/208-230 Volts
- Color
- Silver
- Gauge
- 16 Gauge
- Horsepower
- 2 HP
- Material
- Steel
- Max CFM
- 3,420 CFM
- Min CFM
- 640 CFM
- Motor Type
- Direct Drive
- Plug Type
- Hardwire
- Power Type
- Electric
- Speeds
- Variable
- Style
- Fixed
- Type
- Radial Blowers

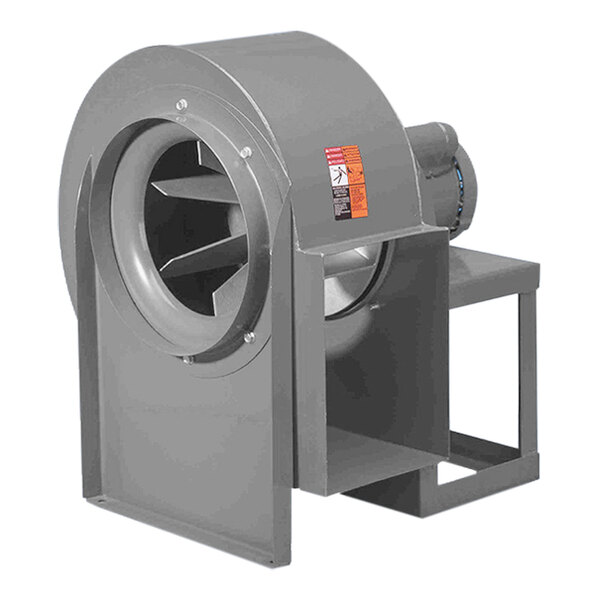

Canarm KE-14S Details
Enhance air quality in your facility with the help of this Canarm KE Series direct drive radial blade blower. This unit is designed to move dust, fume exhaust, and other non-abrasive particles. It is ideal for greenhouse, inflation, exhaust, and high static applications, and it is suitable for use in facilities where dust and grit are pervasive. This unit boasts a 2 hp motor that delivers 640 CFM to 3,420 CFM. The reliable direct drive system requires minimal maintenance.

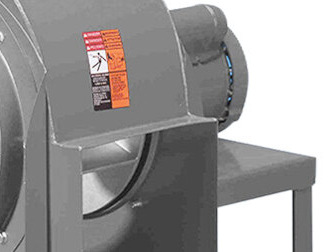

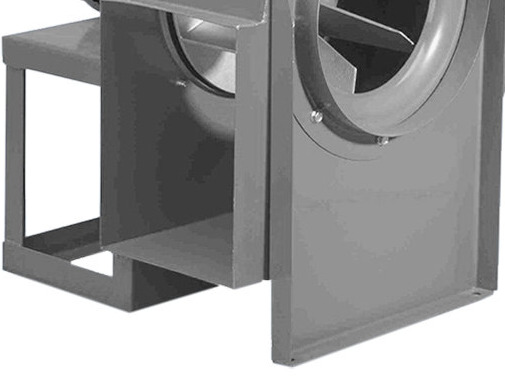

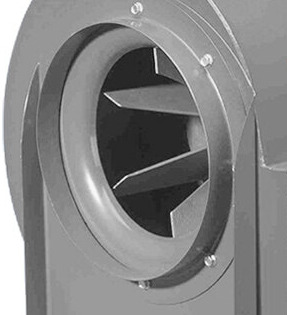

This unit boasts welded 16 gauge steel housing and motor bases, making it durable enough for long-term use. Designed with heavy cast aluminum wheels with straight radial blades, this unit offers excellent filtration that will help keep your air fresh and clean. Plus, the wheels are self-cleaning and dynamically balanced, making them great for efficient operations. The TEFC motors are shielded from weather, dust, and other airborne contaminants, making them suitable for long-term use. This unit is equipped with a clockwise rotation system and a bottom horizontal discharge, meaning the unit can be rotated at 45-degree increments.
This unit requires a 1 phase, 115V/208-230V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 17 5/8"
Depth: 21 1/4"
Height: 28 1/8"
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
