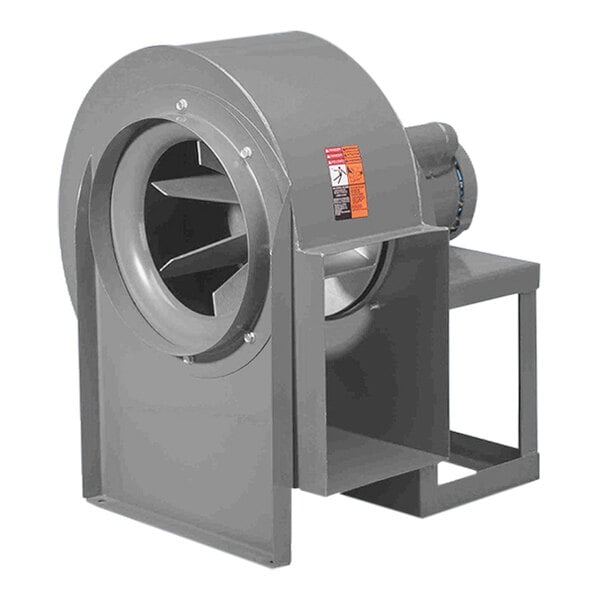

Canarm KE Series Direct Drive Radial Blade Blower KE-12M - 2,375 CFM, 3 Phase, 1 hp
Item number 644657ke12mMFR number KE-12M
$1,039.00/Each
Ships free with
Earn up to $31.17 back (3,117 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Moves dust, fume exhaust, and other non-abrasive particles
- Direct drive system powers the blower’s fan
- Features welded 16 gauge steel housing
- Boasts heavy cast aluminum wheels with straight radial blades
- 208-230V/460V; 3 phase
UPC Code:400016642872
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 139 lb.
- Width
- 16 3/8 Inches
- Depth
- 20 1/8 Inches
- Height
- 27 1/8 Inches
- Phase
- 3 Phase
- Voltage
- 208-230/460 Volts
- Color
- Silver
- Gauge
- 16 Gauge
- Horsepower
- 1 hp
- Material
- Steel
- Max CFM
- 2,375 CFM
- Min CFM
- 350 CFM
- Motor Type
- Direct Drive
- Plug Type
- Hardwire
- Power Type
- Electric
- Speeds
- Variable
- Style
- Fixed
- Type
- Radial Blowers
Canarm KE-12M Details
Enhance air quality in your facility with the help of this Canarm KE Series direct drive radial blade blower. This unit is designed to move dust, fume exhaust, and other non-abrasive particles. It is ideal for greenhouse, inflation, exhaust, and high static applications, and it is suitable for use in facilities where dust and grit are pervasive. This unit boasts a 1 hp motor that delivers 350 CFM to 2,375 CFM. The reliable direct drive system requires minimal maintenance.

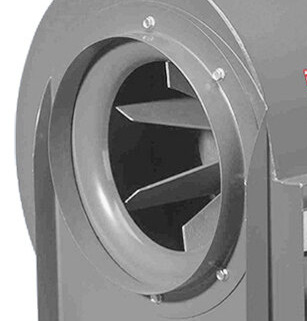

This unit boasts welded 16 gauge steel housing and motor bases, making it durable enough for long-term use. Designed with heavy cast aluminum wheels with straight radial blades, this unit offers excellent filtration that will help keep your air fresh and clean. Plus, the wheels are self-cleaning and dynamically balanced, making them great for efficient operations. The TEFC motors are shielded from weather, dust, and other airborne contaminants, making them suitable for long-term use. This unit is equipped with a clockwise rotation system and a bottom horizontal discharge, meaning the unit can be rotated at 45-degree increments.
This unit requires a 3 phase, 208-230V/460V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 16 3/8"
Depth: 20 1/8"
Height: 27 1/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
