Product Overview

  • Moves dust, fume exhaust, and other non-abrasive particles
  • Direct drive system powers the blower’s fan
  • Features welded 16 gauge steel housing
  • Boasts heavy cast aluminum wheels with straight radial blades
  • 208-230V/460V; 3 phase
UPC Code:062345392677

Canarm KE-11M Specs

Quantity
1/Each
Shipping Weight
99 lb.
Width
14 3/4 Inches
Depth
17 Inches
Height
19 3/4 Inches
Phase
3 Phase
Voltage
208-230/460 Volts
Color
Silver
Gauge
16 Gauge
Horsepower
1/2 HP
Material
Steel
Max CFM
1,430 CFM
Min CFM
430 CFM
Motor Type
Direct Drive
Plug Type
Hardwire
Power Type
Electric
Speeds
Variable
Style
Fixed
Type
Radial Blowers

Canarm KE-11M Details

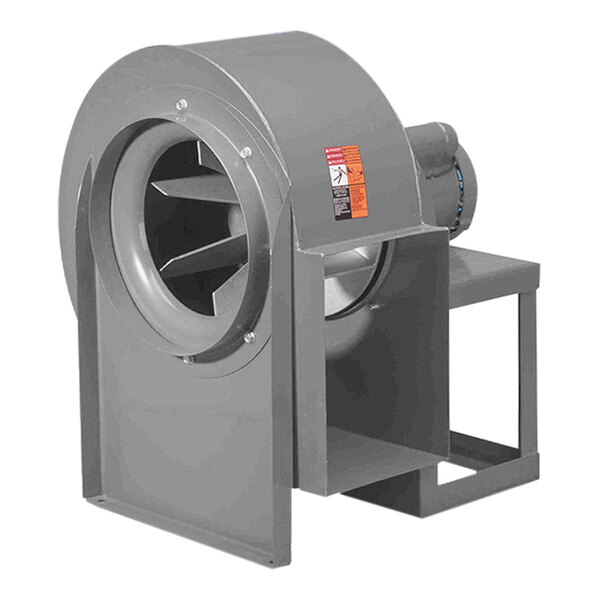

Enhance air quality in your facility with the help of this Canarm KE Series direct drive radial blade blower. This unit is designed to move dust, fume exhaust, and other non-abrasive particles. It is ideal for greenhouse, inflation, exhaust, and high static applications, and it is suitable for use in facilities where dust and grit are pervasive. This unit boasts a 1/2 hp motor that delivers 430 CFM to 1,430 CFM. The reliable direct drive system requires minimal maintenance.

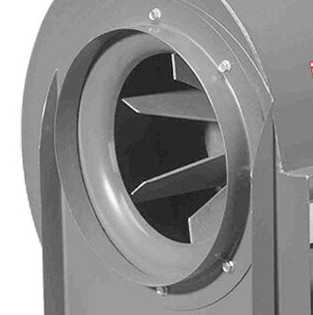

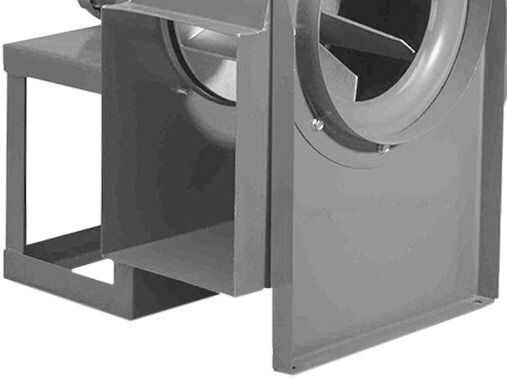

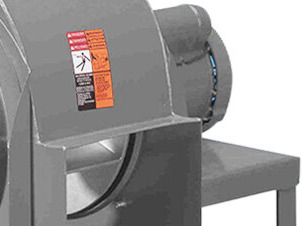

This unit boasts welded 16 gauge steel housing and motor bases, making it durable enough for long-term use. Designed with heavy cast aluminum wheels with straight radial blades, this unit offers excellent filtration that will help keep your air fresh and clean. Plus, the wheels are self-cleaning and dynamically balanced, making them great for efficient operations. The TEFC motors are shielded from weather, dust, and other airborne contaminants, making them suitable for long-term use. This unit is equipped with a clockwise rotation system and a bottom horizontal discharge, meaning the unit can be rotated at 45-degree increments.

This unit requires a 3 phase, 208-230V/460V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 14 3/4"
Depth: 17"
Height: 19 3/4"

Attention CA Residents:
  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
