- Replacement base unit for double stacked configuration
- Durable full angle iron frame with 2 interior oven lamps
- 5 racks that can hold (5) 18" x 26" baking pans in left to right or front to back positions
- Powder-coated door handle that operates 2 dependent doors
- 14 gauge double-sided porcelainized baking compartment liner for easy clean up
- Temperature range from 200 to 500 degrees Fahrenheit and solid state manual controls
- Three tubular heaters; 1/2 hp blower motor with thermal overload protection
- 240V; 3 phase; 11kW
|Blodgett ZEPH200EBAS240/3 Specs|
|Shipping Weight||555 lb.|
|Width||38 1/4 Inches|
|Depth||36 7/8 Inches|
|Interior Width||29 Inches|
|Interior Depth||28 1/4 Inches|
|Interior Height||20 Inches|
|Amps||24 - 26 Amps|
|18 x 26 Pan Capacity||5 Pans|
|Features|| Energy Star Qualified|
Made in America
|Maximum Temperature||500 Degrees F|
|Number of Chambers||1|
|Number of Decks||Single|
|Number of Doors||2 Doors|
|Number of Racks||5|
|Oven Interior Style||Deep Depth|
|Temperature Range||200 - 500 Degrees F|
Customer questions about this product
- In what situation would I want to buy this model?
- This unit should only be used to replace an oven in a pre-existing stacked configuration. It does not come with any accessories.

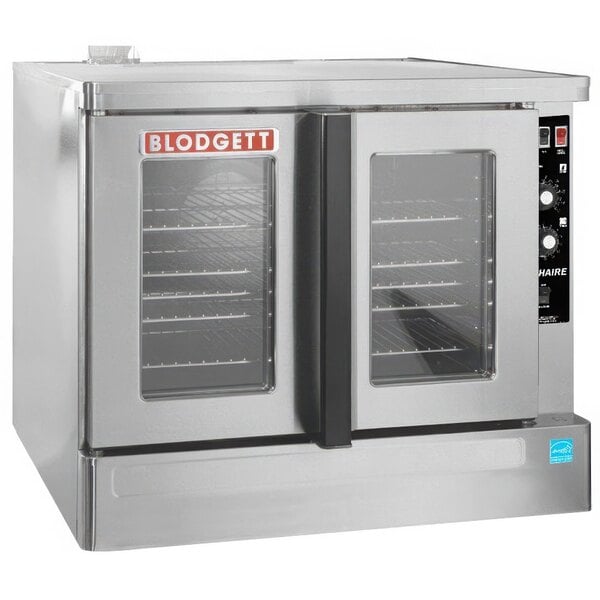

Blodgett ZEPH200EBAS240/3 Details
Cooking your bakery's famous streusels, muffins, donuts, and bread will never be easier than with this Blodgett ZEPHAIRE-200-E-240/3 replacement base model bakery depth electric convection oven! As a base model, this item includes only the oven without any legs or venting connections to offer you the more economical choice of purchasing a single new oven to replace a broken unit in your existing double stacked configuration. Boasting a sturdy iron frame with a stainless steel top, this oven is sure to bring stability to your kitchen. It features solid state manual controls with an electro-mechanical 60 minute timer for easy adjustment and monitoring of popular food items.
Thanks to a two speed fan and 1/2 hp blower motor, this convection oven efficiently recirculates heated air through its interior compartment to reduce energy consumption and increase performance. This system offers a cost-effective way of cooking your product at a lower temperature for a shorter amount of time, allowing you to get food to the tables faster. The oven has three tubular heaters that are controlled by a solid state thermostat with a temperature range from 200 to 500 degrees Fahrenheit, giving you the ability to prepare a wide variety of products. For safety, the blower motor has an automated thermal overload protection mechanism and a control area cooling fan.
The powder-coated handle provides a comfortable grip while operating two dependent doors, which are tightly secured to the frame with a triple-mounted pressure lock design. The interior features five chrome-plated racks that can be configured into eleven rack positions with a minimum of 1 5/8" spacing to ensure that you are getting the most out of your oven, which has the ability to hold up to (5) 18" x 26" standard full size baking pans. In bakery depth ovens, you can arrange the pans in either left to right or front to back positions allowing for a "staggered" effect that improves airflow during baking. A 14 gauge double-sided porcelainized baking compartment liner allows for easy clean up of your unit. As an added benefit, the interior is illuminated with 2 interior oven lamps, giving you the ability to check on your product without opening the doors and letting excess heat escape. A 240V, 3 phase electrical connection is required for operation.
Left to Right: 38 1/4"
Front to Back: 36 7/8"
Left to Right: 29"
Front to Back: 28 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Made in America
This item was made in the United States of America.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
