Other Available Voltages:
Installation ServicesCheck if installation is currently available for your area. Enter ZIP Code >
- Replacement base unit for double stacked configuration
- Solid state thermostat with temperature control range of 200-500 degrees Fahrenheit
- Cook and hold feature; Pulse Plus fan control
- 5 chrome-plated, adjustable racks that can fit into 11 positions
- (2) dual pane thermal glass windows encased in stainless steel door frames
- Fits five 18” x 26” standard full-size baking pans in left-to-right position
- Doors can easily be opened simultaneously with one hand
- 208V, 1 Phase, 11 kW
|Blodgett MARKV100BASE208/1 Specs|
|Shipping Weight||468 lb.|
|Width||38 1/4 Inches|
|Depth||36 7/8 Inches|
|Height||30 7/8 Inches|
|Interior Width||29 Inches|
|Interior Depth||24 1/4 Inches|
|Interior Height||20 Inches|
|18 x 26 Pan Capacity||5 Pans|
|Amps - Per Line||51|
|Features|| Cook and Hold|
Energy Star Qualified
Made in America
|Maximum Temperature||500 Degrees F|
|Number of Chambers||1|
|Number of Decks||Single|
|Number of Doors||2 Doors|
|Number of Racks||5|
|Oven Interior Style||Standard Depth|
|Temperature Range||200 - 500 Degrees F|
Customer questions about this product
- In what situation would I want to buy this model?
- This unit should only be used to replace an oven in a pre-existing stacked configuration. It does not come with any accessories.
Blodgett MARKV100BASE208/1 Details

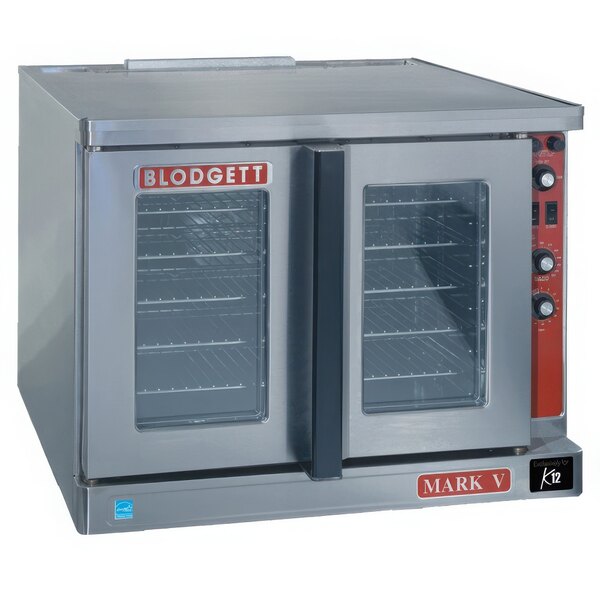

Cooking in your restaurant or school kitchen will be easier than ever before with this Blodgett MARK V-100 Premium series single deck, replacement base model full size electric convection oven. As a base model, this item includes only the oven without any legs or venting connections to offer you the more economical choice of purchasing a single new oven to replace a broken unit in your existing double stacked configuration. This unit offers a solid state infinite control with manual timer for simple, precise control of your cooking operations, with a wide temperature range from 200-500 degrees Fahrenheit to accommodate cooking a variety of different foods. Also, as part of the Premium series, this oven comes standard with a cook and hold function and a Pulse Plus fan control that gently pulses the fan to minimize rippling of batter foods.
A double-sided, porcelainized compartment liner and crumb pans will make for easier cleaning at the end of the day. Five chrome plated racks fit into 11 different positions while five standard full-size pans fit left-to-right so you can cook multiple trays at once. The 1/2 hp two-speed fan motor recirculates heated air for fast, even baking while an automatic thermal overload protection and control area cooling fan prevent overheating.
Two dual pane thermal glass windows encased by stainless steel door frames help reduce energy consumption and keep the outside glass from getting too hot. Capable of being opened simultaneously with one hand, the doors also work well to keep your kitchen moving at a fast pace! Additionally, the triple-mounted pressure lock door provides extra security to keep doors tightly shut.
The stainless steel front, top, and sides ensure your unit is corrosion resistant and durable. Rigid mineral fiber insulation at the top, back, sides and bottom provide a practical way of conserving energy and won't shift or sag out of place over time. It requires a 208V, 1 phase electrical connection.
Left to Right: 38 1/4"
Front to Back: 36 7/8"
Height: 30 7/8"
Left to Right: 29"
Front to Back: 24 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Made in America
This item was made in the United States of America.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Resources and Downloads for
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Please note there is an 8% administrative warranty fee and potential for additional export fees for units that are shipped outside of the United States
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
