- Double deck, half-sized design
- Dual pane thermal glass window in a left-hinged stainless steel door
- Includes 5 chrome-plated racks per section; each oven has 9 rack positions
- Tubular heaters; two speed fan motors
- Solid state manual controls; temperature range of 200 to 500 degrees Fahrenheit
- Stainless steel front, top, and sides
- Solid mineral fiber insulation at the top, back, sides, and bottom
- 220-240V, 3 Phase, 11.2 kW total; 5.6 kW per oven
- Quantity
- 1/Each
- Shipping Weight
- 595 lb.
- Width
- 30 1/4 Inches
- Depth
- 25 1/8 Inches
- Height
- 69 1/8 Inches
- Interior Width
- 15 1/4 Inches
- Interior Depth
- 21 Inches
- Interior Height
- 20 Inches
- Hertz
- 60 Hertz
- Phase
- 3 Phase
- Voltage
- 220 - 240 Volts
- Wattage
- 11.2 Kilowatts
- 13 x 18 Pan Capacity
- 5 Pans
- Amps - Per Line
- 11 - 21
- Control Type
- Dial
- Features
- Energy Star Qualified
Made in America
NSF Listed
Vent Riser - Horsepower
- 1/4 HP
- Installation Type
- Freestanding
- Maximum Temperature
- 500 Degrees F
- Number of Chambers
- 2
- Number of Decks
- Double
- Number of Doors
- 2 Doors
- Number of Racks
- 10
- Oven Interior Style
- Standard Depth
- Plug Type
- Hardwire
- Power Type
- Electric
- Size
- 1/2 Size
- Temperature Range
- 200 - 500 Degrees F
Customer questions about this product
- How will this double convection oven arrive? Is there anything special I need to know about setting it up?
- Double deck convection ovens like this one will ship separately. You will need to un-crate each oven and then stack one on top of the other as part of the installation process. Consult your installation manual for details specific to the oven you ordered.
- How do I know if the listed amperage is in reference to a single oven, or the combined total for each individual oven?
- If you're ever unsure of an electrical specification and how it relates to your operation, be sure to check out the Specification Sheet or consult a qualified technician for additional information.

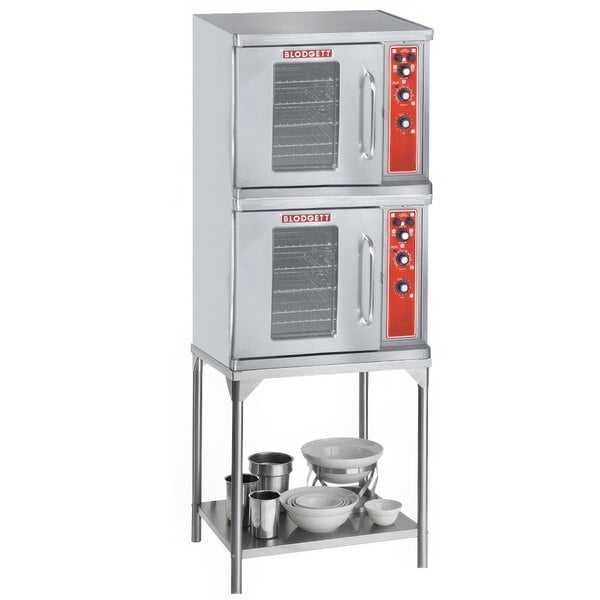

Blodgett CTBDBL240/3 Details
Add greater efficiency and baking capacity to your restaurant, cafe, or kiosk by choosing this space-efficient Blodgett CTB Premium series double deck half size electric convection oven! As a double stacked configuration, this unit includes two individual ovens that allow you to double your baking capacity in the same small footprint.
This convection oven features two tubular heaters per oven compartment that provide a total of 11.2 kW of heating power. The right-side solid state manual controls offer a wide temperature range, from 200 to 500 degrees Fahrenheit, and the separate dial controls for temperature and time allow you to quickly and easily apply the settings that you need. Two speed, 1/4 hp convection motors ensure even temperatures throughout the oven cavities for better baking results than conventional ovens.
The interior of this oven's cavities are covered with a dual-sided porcelainized baking compartment liner. Each oven compartment can hold up to (5) 13" x 18" half size sheet pans in a front to back position and it has 9 rack positions with a minimum of 1 5/8" spacing. Five chrome plated racks are included per oven cavity to provide support for all of your heaviest baking trays.
The stainless steel front, sides, and top allow durability, ease of cleaning, and corrosion resistance while solid mineral fiber insulation at the top, back, sides, and bottom helps to prevent heat from escaping for greater energy conservation. The left-hinged doors feature dual pane thermal glass encased in stainless steel door frames with chrome plated door handles.
The oven rests on a 19" tall stainless steel stand that provides the necessary clearance for cleaning and maintenance. It also keeps the oven at an ergonomic height for easy access!
It requires a 220-240V, 3 phase electrical connection. A vent riser is included for proper ventilation.
Overall Dimensions:
Left to Right: 30 1/4"
Front to Back: 25 1/8"
Height: 69 1/8"
Interior Dimensions (per compartment):
Left to Right: 15 1/4"
Front to Back: 21"
Height: 20"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
Made in America
This item was made in the United States of America.
CE Listed
This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
