$8,779.00/Each

Contact us for details

Ships free with Plus

Call 717-392-7472(Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST)

Why do we do this?

Earn up to $263.37 back (26,337 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Enter ZIP Code >

Usually Ships in 4 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Top freezer cabinet and bottom right-hand refrigerator cabinet provide ultimate storage flexibility
  • 2 self-closing doors with stay-open features, locks, and magnetic gaskets
  • Easy-to-use full electronic controls include One-Touch Defrost and automatic defrost
  • Stainless steel exterior and interior with 6" casters
  • Uses eco-friendly R290 refrigerant; 1/2 hp freezer and 1/10 hp refrigerator, 115V
UPC Code:400013766007

Beverage-Air HBRF23HC-1-A Specs

Quantity
1/Each
Shipping Weight
448 lb.
Width
27 1/4 Inches
Depth
33 3/4 Inches
Height
84 Inches
Freezer Interior Width
24 1/4 Inches
Interior Width
24 1/4 Inches
Refrigerator Interior Width
24 1/4 Inches
Freezer Interior Depth
28 1/4 Inches
Interior Depth
28 1/4 Inches
Refrigerator Interior Depth
28 1/4 Inches
Freezer Interior Height
17 7/8 Inches
Refrigerator Interior Height
26 7/8 Inches
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Amps - Freezer
4
Amps - Refrigerator
2
Capacity
18.625 cu. ft.
Capacity - Freezer
11.5 cu. ft.
Capacity - Refrigerator
8.65 cu. ft.
Color
Silver
Compressor Location
Bottom Mounted
Construction
All Stainless Steel
Door Style
Swing
Door Type
Solid
Dutch Half Doors
With Dutch Half Doors
Features
LED Lighting  Made in America
Horsepower - Freezer
1/2 HP
Horsepower - Refrigerator
1/10 HP
Installation Type
Freestanding
Number of Doors
2 Doors
Number of Shelves
4 Shelves
Plug Type
NEMA 5-15P  NEMA 5-20P
Refrigerant Type
R-290
Sections
2
Temperature Range - Freezer
0 Degrees F
Temperature Range - Refrigerator
36 - 38 Degrees F

Customer questions about this product

Can I use the top of my unit for storage?

Nothing should be stored on top of your unit. Typically, top mount refrigerators and freezers do not have an actual top. If you’re looking for extra storage space, we recommend choosing a bottom mount unit.

Does Beverage-Air warrant this item for use in a food truck?

This item is covered under Beverage-Air's warranty contingent upon the unit being kept in a controlled climate. This means that the interior of the food truck may not be susceptible to extreme high or low temperatures. If warranty service is required, the truck must be able to sit stationary for 24-48 hours to allow for a technician to service the equipment.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

What does the “H” or “HC” mean in the newer Beverage-Air model numbers?

This is a representation that the unit is using a “Hydrocarbon” refrigerant. This would include both R290 and R600a refrigerants. They are being used as an eco-friendly refrigerant by Beverage-Air in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.

Can this item fit through a standard height 80" doorway ?

Due to the height of this item, it may not be able to fit through a standard 80" tall doorway when standing upright. Please consider the best means of entry before purchasing, or measure your entryway to ensure that you will be able to bring your order inside if the item cannot be carried on its side.

Ask your own question!

Beverage-Air HBRF23HC-1-A Details

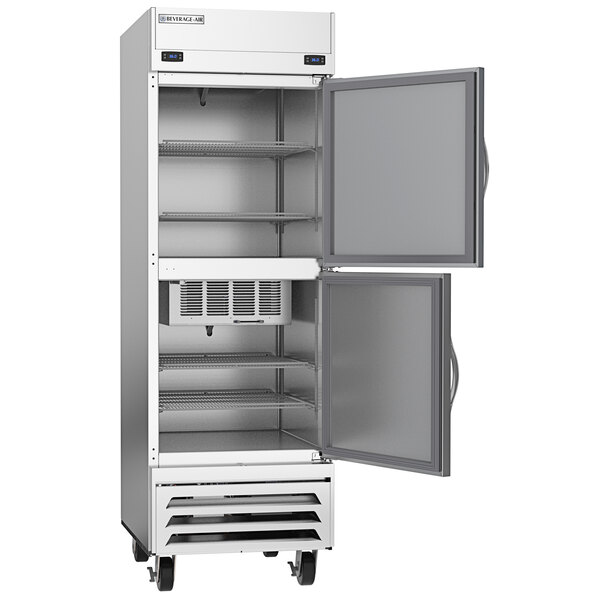

Your business is constantly changing and so are your storage needs. To accommodate these diverse needs, Beverage-Air HBRF23HC-1-A Horizon Series one section dual temperature reach-in freezer / refrigerator offers a space-efficient, versatile solution. Half freezer and half refrigerator, the unit provides both storage environments in the footprint of just one. Made of stainless steel, it includes 2 solid, self-closing doors, each with a 120 degree stay-open feature, magnetic gasket, and lock. The doors are also field reversible, allowing you to change the hinge side to best suit your space.

Each section of the cabinet houses 2 heavy-duty, epoxy-coated wire shelves and bright, LED lighting. Plus, both sections are rated for open food storage, increasing the unit's convenience and versatility.

The freezer portion operates with a 1/2 hp refrigeration system that circulates R290 refrigerant. This system uses expansion valve technology for efficient recovery and maintains temperatures at or below 0 degrees Fahrenheit. The refrigerator portion operates with a 1/10 hp system and circulates R290 refrigerant, maintaining temperatures between 36 and 38 degrees Fahrenheit. For easy operation, the unit features a full electronic control, which includes One-Touch Defrost to simplify maintenance. The one-piece grill is also easy to remove as needed. To thoroughly clean your kitchen, roll the unit aside on its 6" heavy-duty casters, and reach the floors and walls around it. It requires (2) 115V electrical connections, one for the freezer and one for the refrigerator.

Overall Dimensions:
Width: 27 1/4"
Depth: 33 3/4"
Height: 84"
Capacity (top section): 8.65 cu. ft.
Capacity (bottom section): 11.5 cu. ft.

Interior Dimensions:
Width: 24 1/4"
Depth: 28 1/4"
Height (top section): 26 7/8"
Height (bottom section): 17 7/8"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Attention CA Residents

WARNING:This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • 5-20P

    5-20P

    This unit comes with a NEMA 5-20P plug.

  • UL Sanitation

    UL Sanitation

    This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).

Need Parts & Accessories?

Show replacement parts and accessories for Beverage-Air HBRF23HC-1-A today!

Resources and Downloads for
Beverage-Air HBRF23HC-1-A

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Beverage Air equipment purchased in 2013 or later will have a 3 year parts and labor warranty. Equipment purchased prior to 2013 will have a 1 year parts and labor warranty. RESIDENTIAL USERS: Your warranty will be voided if installed in non-commercial or residential applications.

Equivalent Items

Beverage-Air HBRF23-1 (Formerly)
