$10,159.93/Each

for details

You will only be emailed once the product becomes available. We won't add you to our email list or share your data.

Other Available Sizes:

  • Holds up to 10 full size sheet pans
  • Allows you to cook with convection, steam, or a combination of both
  • Automatic high-speed reversing fans and an advanced airflow design for even heating
  • Simple digital controls give users complete control over the cooking process from start to finish
  • 208/240V, 3 phase, 20 kW
UPC Code: 6997390000601
Shipping: Usually Ships in 1 Business Day
Axis Combi Oven: Cleaning

Axis Combi Oven: Cleaning

MVP Group Presents Axis: A Brief Orientation on the Axis Combi Oven Cleaning Procedures. Andrea Telaro - Corporate Chef. Cleaning Procedures. Oven must be in the OFF position. Press the Rotary Knob to enter the Cleaning Mode. Verify the oven is in Cleaning Mode with "CLn" appearing on the display panel. Choose from 3 levels of cleaning with the Rotary Knob. To start cleaning, press the Rotary Knob. Water Connection. Detergent Connection. Water Connection. Drain Connection. Only one chemical solution is required

Copy and paste the embed code above.

Learn about the proper cleaning techniques for your Axis Combi Oven in this how-to video!

Axis Combi Oven: Programmed Cooking

Axis Combi Oven: Programmed Cooking

MVP Group Presents Axis: A Brief Orientation on the Axis Combi Oven Programmed Cooking. Andrea Telaro - Corporate Chef. Programmed Cooking Mode Operation. Power Button. Cooking Modes: Temperature Control, Probe Control, Delta-T Cooking. Cooking Functions / Parameters: Timer Control, Chimney Control, Steam Control. Oven Operations and Programming Functions: Recipes Menu, Fan Control, Start / Stop Button. Rotary Knob. Probe Plug Port with water-tight cap. Turn the oven ON. Press the Recipe Menu icon (the first available (unprogrammed) recipe number will appear). Turn the Rotary Knob to select your desired Menu Program Number. Confirm by pressing the Rotary Knob. Press the Recipe Menu icon again - Cooking Phase 1 setting will appear. To program Cooking Phase 1 (Oven Preheat): Rotate the Rotary Knob to the desired preheat temperature setpoint. Confirm by pressing the Rotary Knob. Press the Timer Control icon. Rotate the Rotary Knob to select the desired cycle cook time. Confirm by pressing the Rotary Knob. Press the Steam Control icon. Rotate the Rotary Knob to select the desired steam percentage (i.e. 6 = 60%). Confirm by pressing the Rotary Knob. Press the Recipe Menu icon twice to set up Cooking Phase 2. The Phase 2 LED will illuminate on the Recipe Menu Icon. To program Cooking Phase 2: Rotate the Rotary Knob to the desired temperature setpoint. Confirm by pressing the Rotary Knob. Press the Timer Control icon. Rotate the Rotary Knob to select the desired cycle cook time. Confirm by pressing the Rotary Knob. Press the Steam Control icon. Rotate the Rotary Knob to select the desired steam percentage (i.e. 6 = 60%). Confirm by pressing the Rotary Knob. Press the Recipe Menu icon twice to set up Cooking Phase 3. The Phase 3 LED will illuminate on the Recipe Menu Icon. To program Cooking Phase 3: Rotate the Rotary Knob to the desired temperature setpoint. Confirm by pressing the Rotary Knob. Press the Timer Control icon. Rotate the Rotary Knob to select the desired cycle cook time. Confirm by pressing the Rotary Knob. Press the Steam Control icon. Rotate the Rotary Knob to select the desired steam percentage (i.e. 6 = 60%). Confirm by pressing the Rotary Knob. Press and hold the Recipe Menu Button until the display reads "MEM". To start cooking using the program you just entered, press the Start / Stop Button. How to Cook using a Programmed Recipe: Press the Recipe Menu Button. Rotate the Rotary Knob to select a pre-programmed recipe. Confirm the cooking program by pressing the Rotary Knob. To start the cooking cycle, press the Start / Stop Button.

Copy and paste the embed code above.

Learn about the features and operation of programmed cooking with this Axis Combi Oven in this how-to video!

Axis Combi Oven: Manual Cooking

Axis Combi Oven: Manual Cooking

MVP Group Presents Axis: A Brief Orientation on the Axis Combi Oven Manual Cooking Mode Operation. Andrea Telaro- Corporate Chef. Manual Cooking Mode Operation. Power Button. Cooking Modes: Temperature Control, Probe Control, Delta-T Cooking. Cooking Functions / Parameters: Time Control, Chimney Control, Steam Control. Oven Operations and Programming Functions: Recipes Menu, Fan Control, Start / Stop Button. Rotary Knob. Probe Plug Port with water-tight cap. Turn the oven ON. Probe Control Icon. Confirm on the digital display the oven is in the "Manual" Cooking Mode "Nan". Press the Temperature Control icon and set the oven temperature to the desired setpoint. Confirm by pressing the Rotary Knob. Press the Timer Control icon and set the time to the number of minutes required for the cooking cycle. Confirm by pressing the Rotary Knob. Press the Chimney icon to set the desired Chimney function ("Open" - the light is on or "Closed" - the light is off). The Chimney icon will stop flashing when set to the desired position. Press the Steam icon and set the steam to the desired steam percentage (i.e. 6 = 60%). Confirm by pressing the Rotary Knob. To start cooking, press the Start Button. When the cooking cycle is complete, an alarm will sound.

Copy and paste the embed code above.

Learn about the features and operation of manual cooking with this Axis Combi Oven in this how-to video!

Axis Combi Oven: Probe Cooking

Axis Combi Oven: Probe Cooking

MVP Group Presents Axis: A Brief Orientation on the Axis Combi Oven Probe Control Cooking Mode Operation. Andrea Telaro- Corporate Chef. Probe Control Cooking Mode Operation. Power Button. Cooking Modes: Temperature Control, Probe Control, Delta-T Cooking. Cooking Functions / Parameters: Time Control, Chimney Control, Steam Control. Oven Operations and Programming Functions: Recipes Menu, Fan Control, Start / Stop Button. Rotary Knob. Probe Plug Port with water-tight cap. Turn the oven ON. Probe Control Icon. Confirm on the digital display the oven is in the "Manual" Cooking Mode "Nan". Plug the probe into the designated Core Probe Port as indicated and press the Probe Control icon. Set Cooking Phase 1 temperature to the desired Preheat setpoint. Confirm by pressing the Rotary Knob. Probe Cooking Mode is Active "Prb". If Steam is required, press the Steam Control icon and set to desired steam percentage, from 1 to 10 (i.e. 7 = 70%). Confirm by pressing the Rotary Knob. To initiate the cooking cycle, press the Start / Stop Button. When operating the oven in the Probe Control Cooking Mode, the cook time will not be shown on the display. The cycle is controlled by the internal food temperature measured by the probe. The cooking cycle is complete when the desired internal food temperature is achieved. When the internal food temperature is reached an alarm will sound indicating the cooking cycle is complete.

Copy and paste the embed code above.

Learn about the features and operation of probe cooking with this Axis Combi Oven in this how-to video!

Axis AX-CL10D Specs
Width 38 5/8 Inches
Depth 35 1/16 Inches
Height 47 1/4 Inches
Interior Width 28 5/16 Inches
Interior Depth 21 1/4 Inches
Interior Height 37 5/16 Inches
Phase 3 Phase
Voltage 208 - 240 Volts
Wattage 14 Kilowatts
Capacity 10 Full Size Sheet Pans
Control Type Dials / Buttons

Touchscreen
Door Type Glass
Features Self Cleaning

With Steam
Pan Type Full Size Sheet Pans
Power Type Electric
Temperature Range 86 - 500 Degrees F

Axis AX-CL10D Details

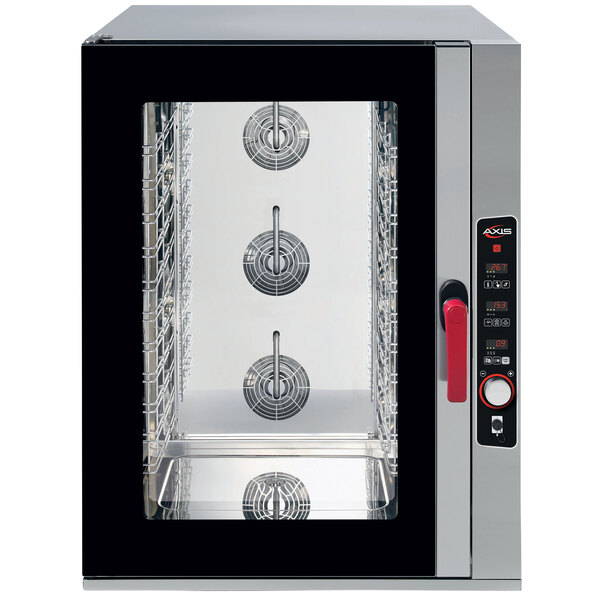

This versatile Axis AX-CL10D full size 10 pan combi oven is a great way to cook, steam, roast, and even bake from the same convenient unit! Boasting the ability to cook with convection, steam, or a combination of both, this combi oven is sure to boost your operation's efficiency with its versatile output and compact footprint. The spacious cavity offers plenty of room to hold 10 full size sheet pans, while 4 stainless steel wire shelves are included to accommodate a variety of other shapes and sizes of pans and dishes.

Digital controls give users complete control over the cooking process from start to finish, allowing you to store up to 99 recipes with 4 cooking cycles to give repeat customers the consistency they're looking for when dining at your restaurant. By simply pressing a few buttons, you can adjust the temperature from 86-500 degrees Fahrenheit, set the timer for up to 16 hours, and inject 0-100% steam to keep your foods moist and minimize shrinkage. A probe is included so that you can cook your product until it reaches a set internal temperature, while a convenient Delta T cooking mode dynamically adjusts the oven cavity's temperature based on the product's interior temperature for perfect results every time.

Automatic high-speed reversing fans and an advanced airflow design combine with ultra-high temperature fiberglass insulation to ensure even, consistent heating. Interior lighting and a double pane glass door makes monitoring your food a breeze, while the heating elements, steam, and fans stop when the door is open for added safety. A self-cleaning cycle keeps the combi oven looking and working great, while conveniently minimizing the time and labor spent on maintenance. This machine requires a 208/240V, 3 phase electrical connection for operation.

Overall Dimensions:
Width: 38 5/8"
Depth: 35 1/16"
Height: 47 1/4"

Interior Dimensions:
Width: 28 5/16"
Depth: 21 1/4"
Height: 37 5/16"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents: Prop 65 Warning

  • ETL US & Canada

    ETL US & Canada

    This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.

  • ETL Sanitation

    ETL Sanitation

    This item meets the sanitation standards imposed by the ETL, a division of the Intertek Group.

  • Hardwired

    Hardwired

    This product must be hardwired; it does not plug into a standard wall outlet.

  • 3/4

    3/4" Water Connection

    This unit comes with a 3/4" water connection.

Resources and Downloads for
Axis AX-CL10D

Axis AX-CL10D Spec Sheet Specsheet Axis AX Combi Manual Manual
