Regularly

$2,929.00/Each

$2,679.00/Each

Ships free with Plus

Earn up to $87.87 back (8,787 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 2 3/4" casters bring the unit to an ADA-compliant working height
  • Top accommodates (10) 1/6 size, 6" deep food pans (sold separately)
  • Industry-best 3/4" cutting board is built-in for convenient prep space and removable for cleaning
  • Corrosion-resistant stainless steel exterior and interior; foamed-in-place polyurethane insulation
  • Easy-to-read digital temperature control with auto defrost; 115V; R290 refrigerant; 1/4 hp
UPC Code:400015927499

Specs

Quantity
1/Each
Shipping Weight
417 lb.
Width
60 1/4 Inches
Depth
29 1/2 Inches
Height
40 1/8 Inches
Power Cord Length
84 Inches
Cutting Board Width
60 1/4 Inches
Interior Width
56 1/2 Inches
Nominal Width
60 Inches
Shelf Width
27 1/4 Inches
Cutting Board Depth
11 1/2 Inches
Interior Depth
23 1/2 Inches
Shelf Depth
17 Inches
Interior Height
19 3/4 Inches
Work Surface Height
33 Inches
Amps
5.4 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Wattage
540 Watts
1/6 Size Pan Capacity
10 Pans
Access Type
Doors
BTU (LBP)
1,368 BTU
Capacity
16.6 cu. ft.
Casters
With Casters
Color
Silver
Compressor Location
Rear Mounted
Compressor Style
Side / Rear Breathing
Construction
Stainless Steel
Cutting Board Thickness
3/4 Inch
Door Style
Swing
Door Type
Solid
Features
ADA Compliant  Removable Magnetic Door Gaskets
Hinge Location
Left  Right
Horsepower
1/4 HP
Individual Shelf Capacity
88 lb.
Number of Doors
2 Doors
Number of Shelves
2 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Starting Amps
16.2 Amps
Starting Wattage
1,620 Watts
Style
ADA Height
Temperature Range
33 - 40 Degrees F
Top Capacity
318 lb.
Top Type
Standard Top  Workstation Refrigerators
Type
Prep Refrigeration

Details

Optimize your back-of-house operations and better keep up with customer demands with this Avantco SS-PT-60-10-A 60" 2 door stainless steel ADA height refrigerated sandwich prep table with workstation! Whether used in a university, sub shop, or hospital, this ADA height unit is sure to help streamline the sandwich prep process with its convenient features and capacity. This unit has a workstation, allowing users to place condiments, utensils, and even a cash register on the unit without sacrificing cutting board space!

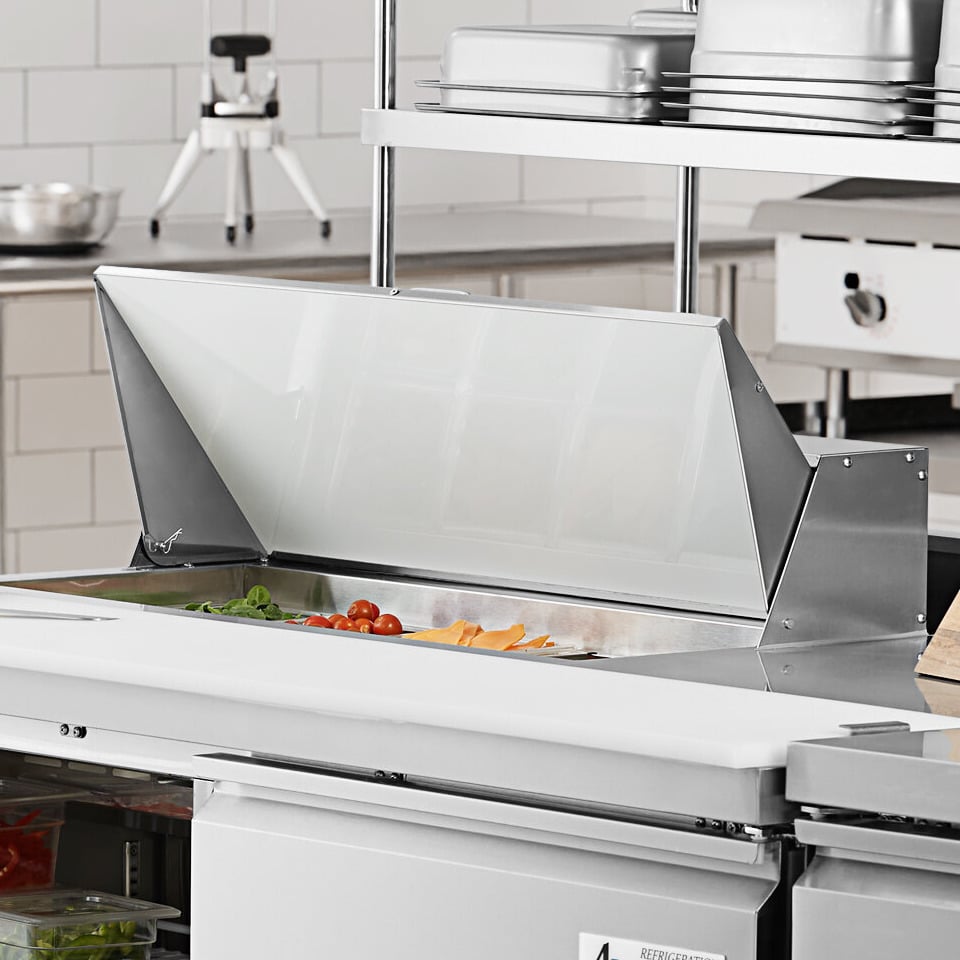

Its top accommodates up to (10) 1/6 size food pans up to 6" deep (sold separately). These are great for holding common sandwich or salad toppings, from eggs and cheese to green pepper or ham. Plus, a lift-up lid encloses the top to maintain proper, food-safe temperatures.

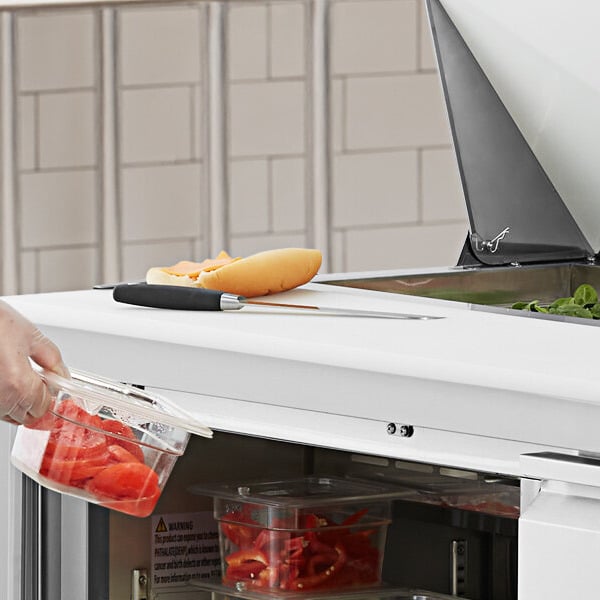

A full-length cutting board, which is 11 1/2" deep, is mounted to the table surface, providing a place for slicing ingredients and assembling orders. This industry-best cutting board is 3/4" thick for added durability and reliability. It is built-in to the unit for convenient prep space and can be easily removed for cleaning.

Beneath the workspace is additional storage space. Because it's refrigerated, the space is great for storing back-up ingredients, such as deli meat and cheese, as well as less common toppings. Two epoxy-coated steel shelves are included and can each accommodate up to 88 lb. of weight, helping to organize your assorted supplies. The two solid swing doors allow users to quickly grab supplies without interrupting workflow.

High quality performance is made possible by the unit's 1/4 hp refrigeration system, which maintains temperatures between 33 and 40 degrees Fahrenheit. It does this by circulating R290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3. Plus, the easy-to-read digital temperature control with auto defrost makes adjusting and maintaining specific temperatures easier than ever!

The unit has a corrosion-resistant construction and is designed with commercial use in mind. It features a 430 type stainless steel exterior and a 201 type stainless steel interior, which is fortified with foamed-in-place polyurethane insulation. The insulation also helps to promote proper temperature retention. The 2 3/4" casters make moving simple for easy cleaning and bring the unit to an ADA-compliant working height. For operation, the prep table requires a 115V electrical connection.

Overall Dimensions:
Width: 60 1/4"
Depth: 29 1/2"
Height: 40 1/8"
Working Height: 33"
Capacity: 16.6 cu. ft.

Interior Dimensions:
Width: 56 1/2"
Depth: 23 1/2"
Height: 19 3/4"

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Customer questions about this product

Are there any temperature specifications to keep in mind when installing this Avantco prep table?

Using this unit in consistent ambient temperatures above 75 degrees Fahrenheit will void the warranty. Any exposure to ambient temperatures of 90 degrees Fahrenheit or above will also void the warranty.

Can this prep table fit through a narrow doorway or hallway?

Avantco prep tables have an easily removable cutting board for your convenience. This makes for easy cleaning and for helping fit through narrow spaces. After removing the cutting board from the Avantco prep table the standard tops are 29 3/8" deep, the mega tops are 33 13/16" deep, and the pizza prep tables are 31 1/2" deep.

Do the ADA casters come installed?

No, they must be installed after delivery.

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

How do I correctly install the shelves into this unit?

To promote proper air flow through your Avantco unit, please ensure that the wire ledges on the shelves are positioned toward the back of the unit. These ledges help keep enough space between your product and the back wall so that cold air can adequately circulate through the cabinet. Incorrectly installing the shelf ledges can restrict airflow, causing the temperature in the bottom of your unit to rise.

How do I know if this unit will fit under or match the height of my ADA-height counter?

Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:

Counter Height: Work surface is more than 34" high; standard-height unit.

ADA Height: Work surface height is 34" or less; complies with ADA regulations.

Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.

If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

My unit was delivered, but I don’t see any casters?

The units come with casters preassembled underneath the pallet.

What kinds of pans can I use in my Avantco refrigerated prep table?

The types of pans and pan sizes that should be used in your Avantco refrigerated prep table depend on the table model and size. It’s important to refer to your equipment's Specification Sheet and/or Owner's Manual to see what pan sizes and configurations are recommended. Certain accessories may be needed in order to use pans of a different size than what is recommended.

It is also important to note that mixing and matching pans from different manufacturers may result in the pans not fitting properly. To ensure your pans will fit, refer to the items listed in the product’s "Works With" section. The pan sizes and configurations that each refrigerated prep table accommodates may vary. The items included in the “Works With” section may be used in your model, though configurations combining two or more different pan sizes may not be possible or may require adjustments to be made. The exceptions below apply to the model type indicated:

Mega Top Models – Can fit up to (3) 1/3 size pans from front to back without the use of a middle divider; 1/3 and 1/6 size pans cannot be combined in the same section

Standard Top Models – To use 1/3 size pans, included divider bars must be removed, or narrower divider bars must be used

Pizza Prep Models – While 1/3 size pans are the standard to use in pizza prep models, 1/6 size pans may be used when the orientation is changed

Why are the dimensions in the title different from the actual dimensions in the description?

The dimensions given in the title represent an “industry standard” – a basic size that most manufacturers produce and that people in the industry use to easily identify a type of item. However, not all manufacturers produce their products the same way. For example, a title might say 12", but the item may actually be slightly larger or smaller. We include both measurements to help you find the product you’re looking for and so you also know how large the product actually is.

Why is there a step in the interior of this undercounter unit?

This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.
Ask your own question!
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).
