Avantco Ice UC-160-FA 26" Air Cooled Undercounter Full Cube Ice Machine - 152 lb.

Item number  194uc160fa

$1,559.00/Each

This product is no longer available. We've left this page up for reference only.

UPC Code:400013678577

View All Products From Avantco Ice MachinesView all Avantco Ice Machines Undercounter Ice Machines

Other Products from this Line

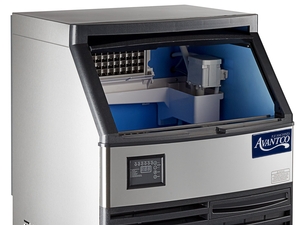

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice UC-160-FA 26" air cooled undercounter full cube ice machine!

Capable of producing up to 152 lb. of full cube ice per day, these larger footprint undercounters are great for meeting high production and capacity needs of busy restaurants, bars, or cafes. This machine also comes with an 80 lb. bin to store a larger amount of ice once its made.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

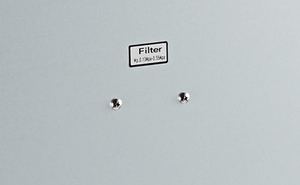

OceanLoch+ Mounting Holes

This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

Intuitive Diagnostics

For ease of maintenance, a built-in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues.

Nickel-Plated Evaporator and Removable Air Filter

A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

304 Stainless Steel Design and Polyethylene Interior

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is easy-to-clean and built to last in the busiest commercial environments.

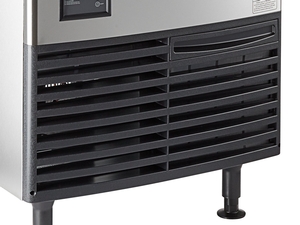

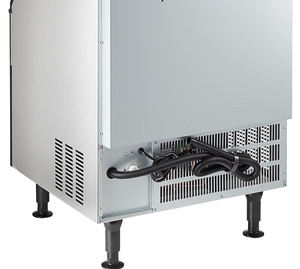

Side and Rear Breathing Exhaust

With a side and rear breathing exhaust design, you don't have to worry about warm air being blown out of the front of the unit. It also reduces the potential for the refrigeration system to draw in dust and debris from the kitchen like front-breathing machines.

Overall Dimensions:
Width:
26 Inches
Depth:
27 Inches
Height:
38 3/16 Inches
Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Find Parts for this Item

Resources and Downloads

Avantco Ice Machines 194UC160FA Specsheet

Specsheet

Opens in new tab194UC_Series_Manual_Updated

Manual

Opens in new tabAvantco Ice Machine Warrenty

Warranty

Opens in new tabIce Machines_Buying Guide_New Bins

Buying Guide

Opens in new tab

A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

Specs

Quantity
1/Each
Shipping Weight
250 lb.
Width
26 Inches
Depth
27 Inches
Height
38 3/16 Inches
Amps
5.1 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
110 - 152 Pounds
Ambient Temperature Range
40 - 90 Degrees F
Bin Storage Capacity
80 lb.
Condenser Type
Air Cooled
Ice Type
Cubes Full Size Cubes
Installation Type
Undercounter
Plug Type
NEMA 5-15P
Power kWh/100 lbs. Ice
8 kWh
Refrigerant Type
R-290
Type
Ice Machines with Bins
Water Inlet Size
3/4 Inches
Water Pressure Range
18 3/4 - 80 PSI
Water Temperature Range
40 - 90 Degrees F
Water Usage
24.8 Gallons Per 100 lbs.
